Help CenterHDMI ENCODER
Related Products

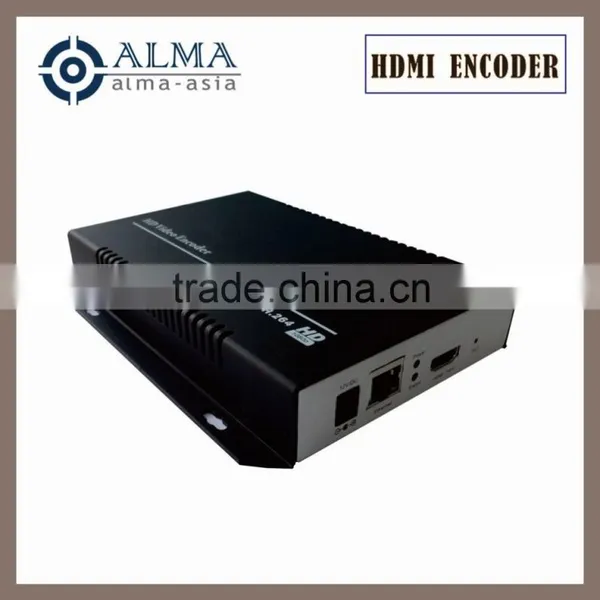

HD video Encoder (HDMI input) is our newest professional HD audio & video encoding device with powerful functionality. It supports H.264 encoding, dual-Streaming data. It is equipped with 1 HDMI channels input supporting MPEG-4 AVC/H.264 High Profile code format & main Profile code format. Its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end. Satellite and terrestrial digital TV etc., also it supports VLC decode.
Video | |
Input |
1x HDMI( 1.3a) HDCP |
Resolution |
1920x1080P/1080i/720P @50/60Hz |
Encoding |
H.264/AVC High Profile Level 4.0 |
Data Rate |
0.8Mbps~12Mbps |
Rate Control |
CBR/VBR |
GOP Structure |
IBBP |
Advanced Pretreatment |
De-interlacing, Noise Reduction, Sharpening |
Audio | |
Encoding |
AAC |
Sampling rate |
Auto |
Bit-rate |
32K/48K/64K/96K/128K/160K/192K |
Sampling precision |
24 bit |
Data Rate |
64Kb/s~384Kb/s |
System | |
Ethernet |
1000 Base-T Ethernet interface |
Protocol |
HTTP UDP unicast / multicast;RTSP;RTMP |
Control Interface |
WEB |
Others | |
Dimension (W× L× H) |
170*130*30mm |
Weight |
0.5kg |
Temperature |
0-45(work),-20-80(storage) |
Power |
12V/DC |
Consumption |
6W |
