Home > Products > Powered by Deutz engine > 15Kva~625Kva Deutz Diesel Generator, Air Cooled and Water Cooled Deutz Generators

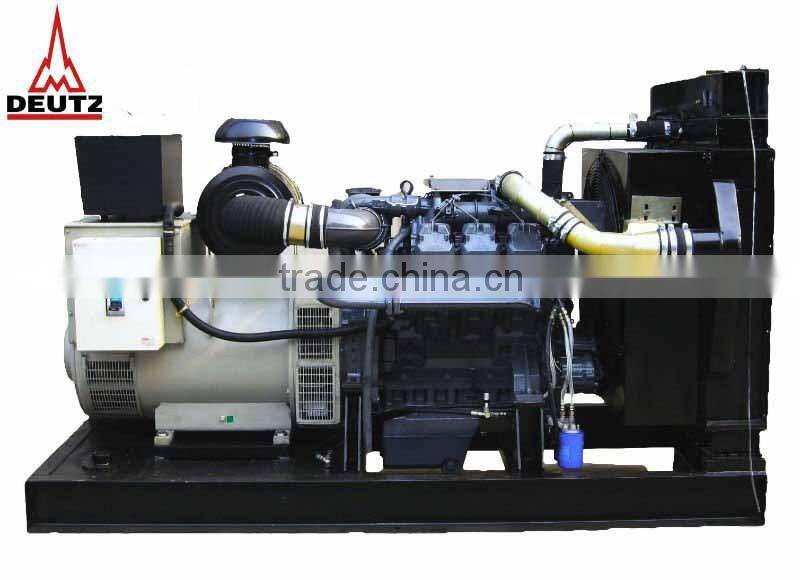

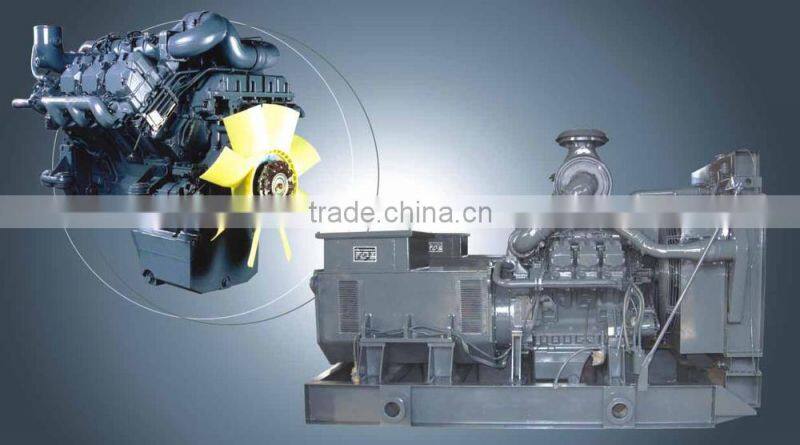

15Kva~625Kva Deutz Diesel Generator, Air Cooled and Water Cooled Deutz Generators

Name: 15Kva~625Kva Deutz Diesel Generator, Air Cooled and Water Cooled Deutz Generators
Brand: Deutz
Availability: InStock

FOB Price

US$ 5,000 - 50,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Deutz
Model Number	Air cooled and Water cooled Deutz generators	Output Type	AC Three Phase
Speed	1500rpm/min	Frequency	50Hz
Rated Power	15Kva~625Kva	Rated Voltage	110V~600V
Rated Current	21.6A~900A

Product Description

Specifications

Deutz diesel generator from 15Kva~625Kva
Stamford alterantor
Deepsea control panel
High quality
Reasonable price

15Kva~625Kva Deutz diesel generators

(Air cooled and Water cooled type)

Main technical data

Deutz engine

Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

24V DC start motor;

Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;

Equipped with industrial silencer and flexible exhaust hose;

Equipped with CHINT MCCB circuit breaker;

Designed to Comply with ISO8528/GB2820;

Powered by Deutz engine,Controlled by Deepsea panel

Voltage

Phase

P.F

(COS)

Output

(KVA)

400/230V

0.8

15~625

Remark

60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements.

Engine

Deutz diesel generator power capacity

Model	Prime power		Engine model	No.of cyls	Bore/stroke (mm)	Fuel Cons. (L/hr)	Dimension (LWH) (mm)	Weight(kg)
Model	KW	KVA	Engine model	No.of cyls	Bore/stroke (mm)	Fuel Cons. (L/hr)	Dimension (LWH) (mm)	Weight(kg)
Air-cooled Series
ST-D12GF	12	15	F2L912	2	100/120	4	14008001100	500
ST-D20GF	20	25	F3L912	3	100/120	4	17008001100	700
ST-D24GF	24	30	F4L912	4	100/120	9.7	19008001150	800
ST-D36GF	36	45	F4L912T	4	102/125	9.7	20008001150	950
ST-D40GF	40	50	F6L912	6	100/120	14.5	22508001150	1150
ST-D48GF	48	60	F6L912T	6	100/120	14.5	22508001150	1200
ST-D64GF	64	80	BF6L913	6	102/125	24.9	24008001250	1300
ST-D76GF	76	95	BF6L913C	6	102/125	30.7	25008001350	1500
Water-cooled Series 15Kw~500Kw

Alternator

Alternator brand	Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
Prime power	15Kva~625Kva
Frequency/speed	50HZ/1500rpm (60Hz/1800rpm)
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

Control panel

The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.

Pictures FYI
