Open or container type 2500kva diesel generator with Perkin engine 4016-61TRG3

FOB Price

USD $5,000 - $300,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	2000Kva generator	Model Number:	4016-61TRG3
Output Type:	AC Three Phase	Speed:	1500rpm/min	Frequency:	50Hz
Rated Power:	2500Kva	Rated Voltage:	380/220V	Rated Current:	3600A

Product Description

Open or container type 2500kva diesel generator

Powerd by Perkin engine

Main technical data

UKP engine

Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

24V DC start motor;

Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;

Equipped with industrial silencer and flexible exhaust hose;

Equipped with CHINT MCCB circuit breaker;

Designed to Comply with ISO8528/GB2820;

Powered by Perkins engine,Controlled by Deepsea panel

Voltage

Phase

P.F

(COS)

Output

(KVA)

400/230V

0.8

2500

Remark

60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements.

Engine

Engine Model	4016-61TRG3
Number of Cylinders	16 cylinders, 60°Vee
Cycle	4 stroke
Aspiration	Turbocharged and after water cooled
Bore×Stroke	160mm x190mm
Displacement	61.123L
Compression ratio	13.6:1
Prime Power/Speed	1875KW / 1500rpm
Standby Power/Speed	2083KW / 1500rpm
Speed Governor	Electrical
Cooling System	Forced water cooling cycle
Steady speed droop	≤1%
Total lubrication system capacity	237.2L
Coolant capacity	316L
Fuel Consumption at 100% Load	205g/kw.h
Starter Motor	DC24V,
Alternator	DC24V

UKP diesel generator power capacity

Model	Prime power		Engine model	No.of cyls	Bore/stroke (mm)	Fuel Cons. (g/kwh)	Dimension (LWH) (mm)	Weight(kg)
Model	KW	KVA	Engine model	No.of cyls	Bore/stroke (mm)	Fuel Cons. (g/kwh)	Dimension (LWH) (mm)	Weight(kg)
ST-P8GF	8	10	403D-11G	3	77*81	252	1200×700×1100	300
ST-P10GF	10	12.5	403D-15G	3	84*90	264	1250×700×1100	350
ST-P16GF	16	20	404D-22G	4	84*100	237	1500×730×1300	500
ST-P24GF	24	30	1103A-33G	3	105*127	214	1770×750×1600	800
ST-P36GF	36	45	1103A-33TG1	3	105*127	215	2050×750×1600	920
ST-P48GF	48	60	1103A-33TG2	3	105*127	211	2200×750×1600	1050
ST-P52GF	52	65	1104A-44TG1	4	105*127	211	2250×750×1600	1100
ST-P64GF	64	80	1104A-44TG2	4	105*127	211	2300×750×1600	1150
ST-P80GF	80	100	1104C-44TAG2	4	100*127	205	2480×760×1600	1250
ST-P110GF	110	137.5	1006TAG	6	100*127	208	2600×760×1600	1400
ST-P120GF	120	150	1006A-TAG2	6	100*127	208	2650×760×1600	1450
ST-P140GF	140	175	1106C-E66TAG2	6	105*127	206	2700×900×1600	1700
ST-P160GF	160	200	1306C-E87TAG3	6	116*136	220	3000×1000×1700	2100
ST-P180GF	180	225	1306C-E87TAG4	6	116*136	217	3000×1000×1700	2100
ST-P200GF	200	250	1306C-E87TAG6	6	116*136	216	3100×1000×1700	2150
ST-P280GF	280	350	2206A-E13TAG2	6	130*157	209	3600×1200×2000	3200
ST-P320GF	320	400	2206A- E13TAG3	6	130*157	206	3650×1200×2000	3300
ST-P360GF	360	450	2506A-E15TAG1	6	137*171	216	4000×1200×2100	3700
ST-P400GF	400	500	2506A-E15TAG2	6	137*171	211	4050×1200×2100	3760
ST-P480GF	480	600	2806A-E18TAG1A	6	145*183	216	4100×1600×2200	4600
ST-P520GF	520	650	2806A-E18TAG2	6	145*183	202	4200×1600×2200	4800
ST-P600GF	600	750	4006-23TAG2A	6	160*190	209	4500×1800×2300	5500
ST-P640GF	640	800	4006-23TAG3A	6	160*190	210	4600×1800×2300	6000
ST-P720GF	720	900	4008TAG1A	8	160*190	206	4800×2100×2500	7700
ST-P800GF	800	1000	4008TAG2A	8	160*190	206	4900×2100×2500	8000
ST-P1000GF	1000	1250	4012-46TWG2A	12	160*190	212	5300×2200×2600	10000
ST-P1200GF	1200	1500	4012-46TAG2A	12	160*190	212	5400×2200×2600	11000
ST-P1320GF	1320	1650	4012-46TAG3A	12	160*190	212	5500×2200×2600	12000
ST-P1480GF	1480	1850	4016TAG1A	16	160*190	205	5700×2800×3100	13500
ST-P1600GF	1600	2000	4016TAG2A	16	160*190	208	5800×2800×3100	14000
ST-P1800GF	1800	2250	4016-61TRG3	16	160*190	210	5900×2800×3100	1570

Alternator

Alternator brand	Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
Prime power	2500Kva
Frequency/speed	50HZ/1500rpm (60Hz/1800rpm)
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23
Phase / wire	3 phase 4 wires

Control panel

The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.

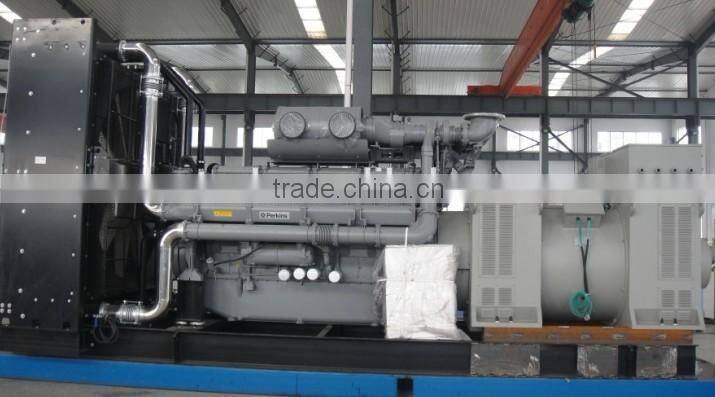

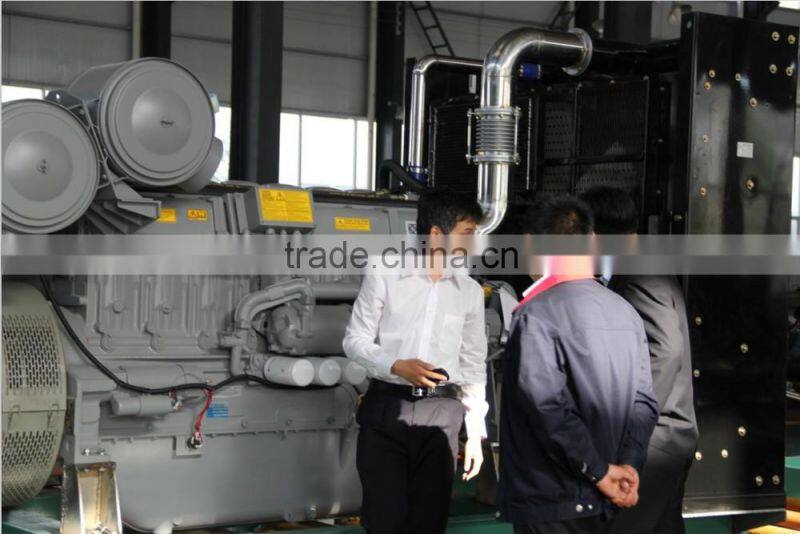

Pictures FYI
