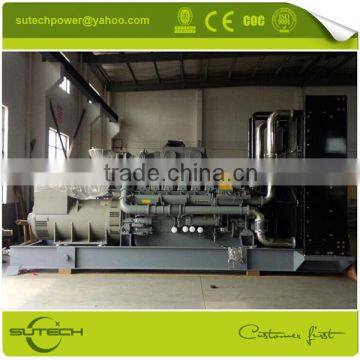

1800Kw/2250Kva silent generator set, powered by Perkins 4016-61TRG3 engine
Stamford alterantor
Deepsea control panel
High quality
British perkins (also called Rolls-Royce) Engine Co., LTD is one of the largest engine manufacturers in the world, it was founded in 1932, and the annual output near 400,000. In 1998, the company was tookover by Chrysler holdings, then has become a member of Carter group. Eventhough the Perkins was entered in China engine market a little bit late, it still accepted by a large number of users since 1995, and occupied big market share rapidly. Perkins is complete in specifications&types, has compact form, reliable performance, convenient maintenance. And the less gas pollution is up to the Euro III Environmental emission standards.
Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;
24V DC start motor;
Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;
Equipped with industrial silencer and flexible exhaust hose;
Equipped with CHINT MCCB circuit breaker;
Designed to Comply with ISO8528/GB2820;
Powered by Volvo engine,Controlled by Deepsea panel
Voltage | HZ | Phase | P.F (COS) | Output (KVA) |
400/230V | 50 | 3 | 0.8 | 2250 |
Remark | 60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements. | |||
Diesel engine | General data | Engine model | 4016-61TRG3 | |
Cylinder & Configuration | 16V | |||
Bore X Stroke (mm) | 160 X 190 | |||
Displacement(l) | 61.123 | |||
Compression Ratio | 13 :1 | |||
Type | 4 Stroke, watercooled | |||
Governor | Electronic | |||
Rated speed (RPM) | 1500 | |||
Exhaust system | Exhaust gas tempreature(°C) | N/A | ||
Exhaust gas flow(m³/s) | 8167 | |||
Air intake system | Aspiration | Turbocharged ,intercooled | ||
Combustion air Volume(m³/min) | 2917 | |||
Fuel system | Rating Fuel Consumption(L/KWH) | 528 | ||
Lubrication system | Oil capacity(l) | 214 | ||
Cooling system | cooling capacity(l) | 316 | ||
Cooling method | Water ,paddle fan | |||
Starting method | 24V DC electric starting | |||
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power | 100Kva |
Frequency/speed | 50HZ/1500rpm (60Hz/1800rpm) |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
Control Panel
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.
