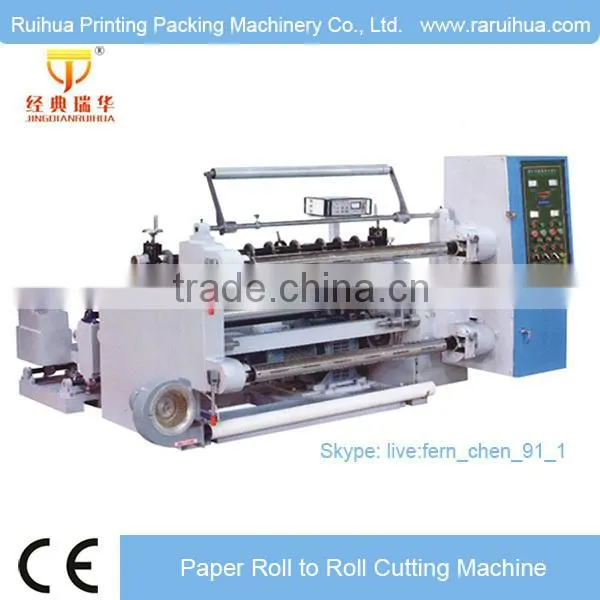

Automatic Jumbo Rolls Rewinding and Slitting Machine

Name: Automatic Jumbo Rolls Rewinding and Slitting Machine
Brand: JINGDIANRUIHUA
SKU: 112371851

US$ 6,000 - 25,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Slitting Rewinder

Computerized:

Yes

Ruian Ruihua Printing Packing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Slitting Rewinder

Computerized Yes

Place of Origin Zhejiang, China

Brand Name JINGDIANRUIHUA

Model Number RH-SLT-1100

Voltage 380V 50Hz 3Phase 4Line

Power(W) 4Kw

Dimension(L*W*H) 2200*2100*1200mm

Weight 2200kgs

Certification CE&ISO for Rewinding and Slitting Machine

Warranty One year guarantee time

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Rewinding and Slitting Machine

Main Technical Parameter
Model Type	RH-SLT-1100
Max. Parent Web Width	1100mm
Max. Parent Web Diameter	800mm
Max. Rewinding Diameter	600mm
Min. Slitting Width	30mm
Thickness Range	Paper: 50-800gsm Film: 0.02-1.2mm
Max. Machine Speed	180m/min
Unwinding/Rewinding Shaft	3’’ Pneumatic Air Expanding Shaft
Slitting Precision	±0.15mm

SPECIFICATIONS:

Application Material

Label, Regular Paper,Kraft Paper, Non-woven Cloth, Film(PVC,OPP.PE, PET, BOPP), Bond Paper, etc.

Main

Rewinding and Slitting Machine is with programmed control system and meter counter.
Machine is with frequency inveter for motor control and frequency inverter motor, working more stable.
All transmission rollers have been dynamic/static balance treated.
Rewinding and Slitting Machine is with emergency switch for urgent stop.
Machine is with edge position control(EPC) to provide accurate slitting position
Rewinding and Slitting Machine is with automatic braking device, and with 2 sets electromagnetic clutch
Rewinding and Slitting Machine is with auto tension controller for unwinding tension control, and 2 sets semi-auto tension controllerfor rewinding tension control.
Rewinding and Slitting Machine is with razor type blade or disc type blade according to different materials.
Rewinding and Slitting Machine is with automatic meter counter which will stop the machine when reach the pre-set length.
Rewinding and Slitting Machine is with air blower and expulsion tube.
