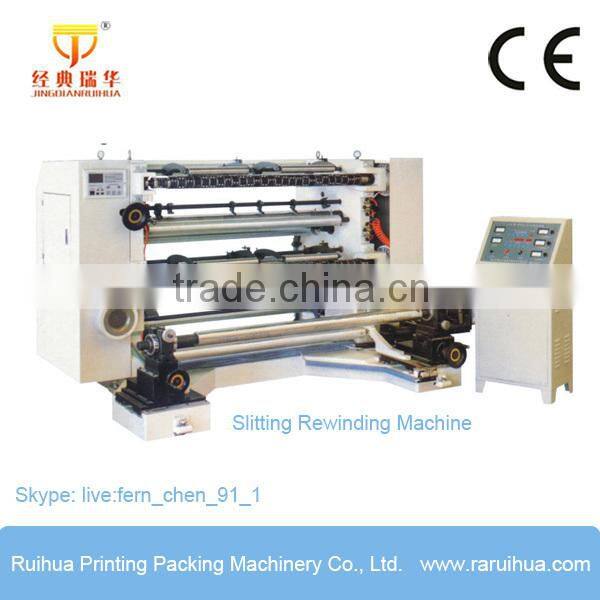

High Quality Kitchen Aluminium Foil Slitting and Rewinding Machine

Model Type

RH-SLT-1100

Max. Parent Web Width

1100mm

Max. Parent Web Diameter

800mm

Max. Rewinding Diameter

600mm

Min. Slitting Width

30mm

Thickness Range

Paper: 50-800gsm

Film: 0.02-1.2mm

Max. Machine Speed

180m/min

Unwinding/Rewinding Shaft

3’’ Pneumatic Air Expanding Shaft

Slitting Precision

±0.15mm

SPECIFICATIONS:

Application Material

• Label, Regular Paper,Kraft Paper, Non-woven Cloth, Film(PVC,OPP.PE, PET, BOPP), Bond Paper, Alunimium foil, etc.

Main

• Aluminium Foil Slitting and Rewinding Machine is with programmed control system and meter counter.
• It is with frequency inveter for motor control and frequency inverter motor, working more stable.
• All transmission rollers have been dynamic/static balance treated.
• Aluminium Foil Slitting and Rewinding Machine is with emergency switch.
• Aluminium Foil Slitting and Rewinding Machine is with edge position control(EPC) to provide accurate slitting position
• Aluminium Foil Slitting and Rewinding Machine is with automatic braking device, and  with 2 sets electromagnetic clutch

• Machine is with auto tension controller for unwinding tension control, and 2 sets semi-auto tension controllerfor rewinding tension control.

• Machine is with razor type blade or disc type blade according to different materials.
• Aluminium Foil Slitting and Rewinding Machine is with automatic meter counter which will stop the machine when reach the pre-set length.
• Machine is with air blower and expulsion tube.
