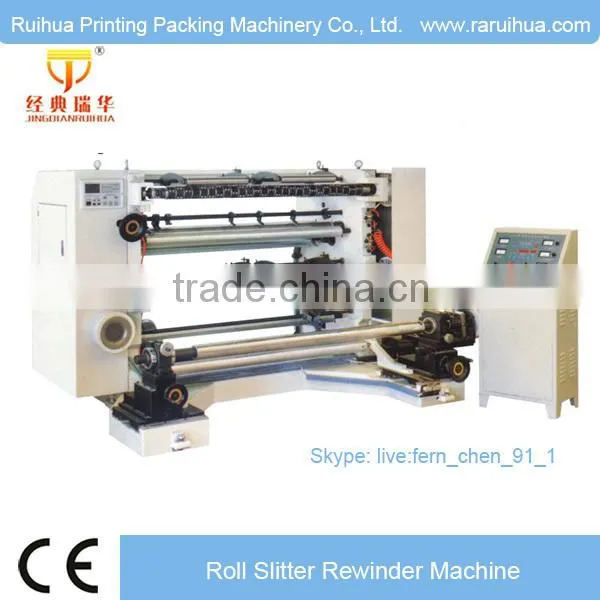

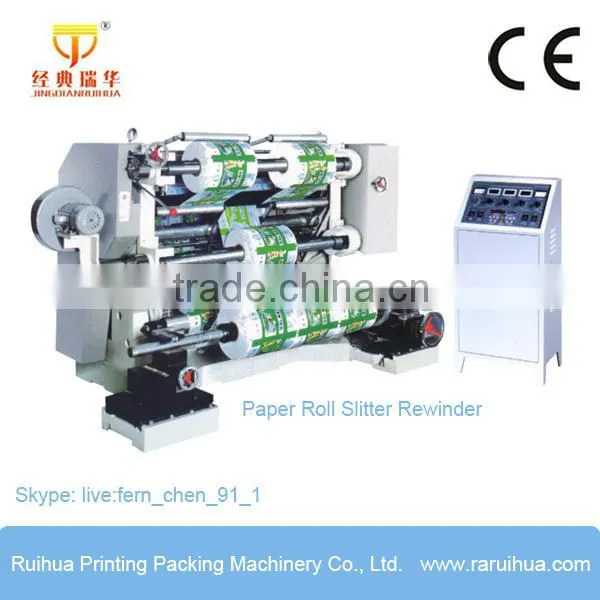

High Quality Back Paper Slitting Machine

Name: High Quality Back Paper Slitting Machine
Brand: JINGDIAN RUIHUA
SKU: 112371769

US$ 6,000 - 20,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Slitting Rewinder

Computerized:

Yes

Ruian Ruihua Printing Packing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Slitting Rewinder

Computerized Yes

Place of Origin Zhejiang, China

Brand Name JINGDIAN RUIHUA

Model Number RH-SLT-800

Voltage 3Phase 4Line 380V 50Hz

Power(W) 5Kw

Dimension(L*W*H) 2000*1800*1600mm

Weight 1800kgs

Certification CE&ISO for Back Paper Slitting Machine

Warranty One year guarantee time

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Back Paper Slitting Machine

Main Technical Parameter
Model Type	RH-SLT-800
Max. Parent Web Width	800mm
Max. Parent Web Diameter	800mm
Max. Rewinding Diameter	600mm
Min. Slitting Width	30mm
Thickness Range	Paper: 50-800gsm Film: 0.02-1.2mm
Max. Machine Speed	180m/min
Unwinding/Rewinding Shaft	3’’ Pneumatic Air Expanding Shaft
Slitting Precision	±0.15mm

SPECIFICATIONS:

Application Material

Label, Regular Paper,Kraft Paper, Non-woven Cloth, Film(PVC,OPP.PE, PET, BOPP), Bond Paper, etc.

Main

Machine is with programmed control system and meter counter.
Back Paper Slitting Machine is with frequency inveter for motor control and frequency inverter motor, working more stable.
All transmission rollers have been dynamic/static balance treated.
Back Paper Slitting Machine is with emergency switch.
Back Paper Slitting Machine is with edge position control(EPC) to provide accurate slitting position
Back Paper Slitting Machine is with automatic braking device, and with 2 sets electromagnetic clutch
Back Paper Slitting Machine is with auto tension controller for unwinding tension control, and 2 sets semi-auto tension controllerfor rewinding tension control.
Machine is with razor type blade or disc type blade according to different materials.
Machine is with automatic meter counter which will stop the machine when reach the pre-set length.
Back Paper Slitting Machine is with air blower and expulsion tube.
