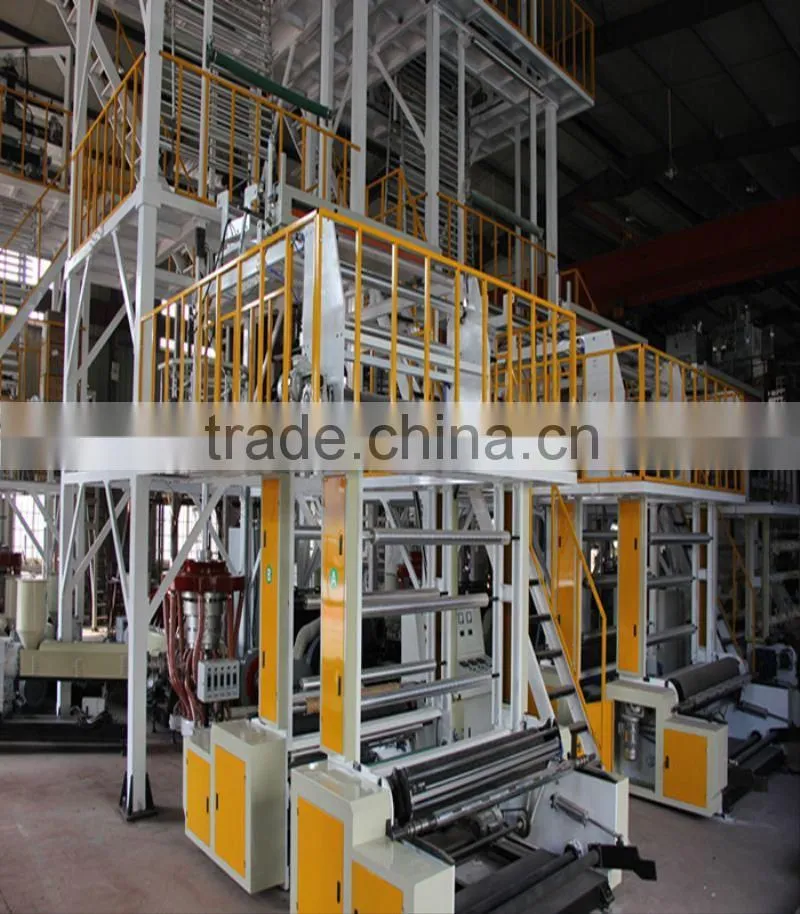

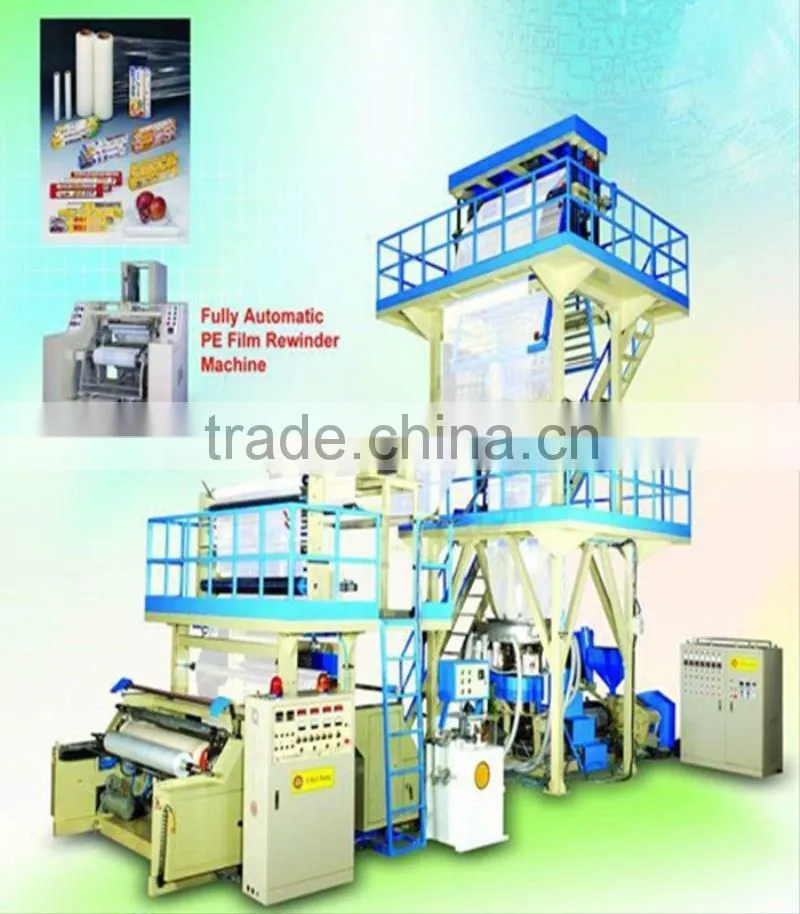

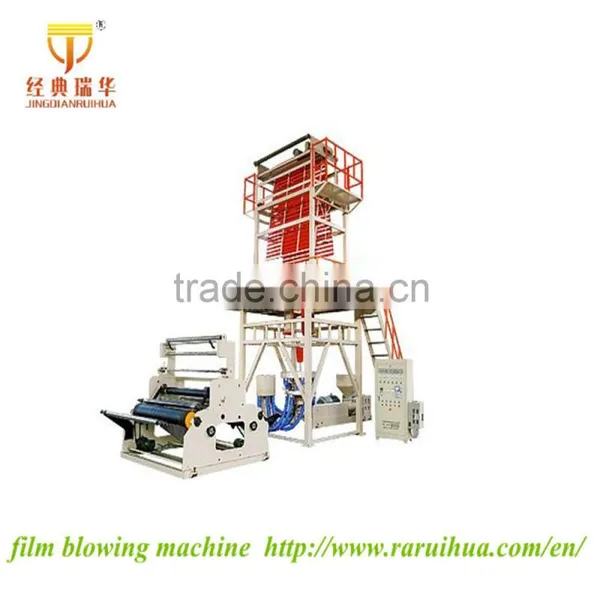

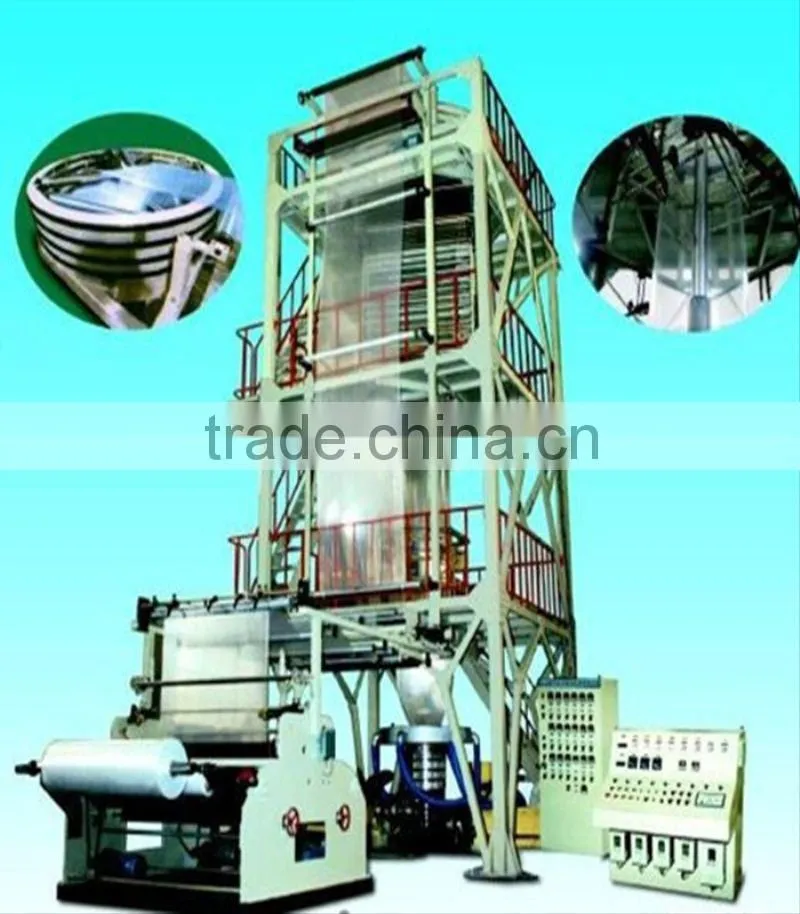

Hot shrinkable blown film machine
Use :
Three-to-Seven-layer co-extruding upper traction rotation blown film machine unit is developed and researched according to the market demands at the basis of domestic and foreign advanced technology. It is applied to packing with medium-high film. The film is of well barrier property, retaining freshness, moisture-proof, frost Prevention, oxygen proof and oil-proof. So it can be widely applied to the light-weight packing, such as fresh fruits, meat, pickles, fresh milk, drink, medicine, etc

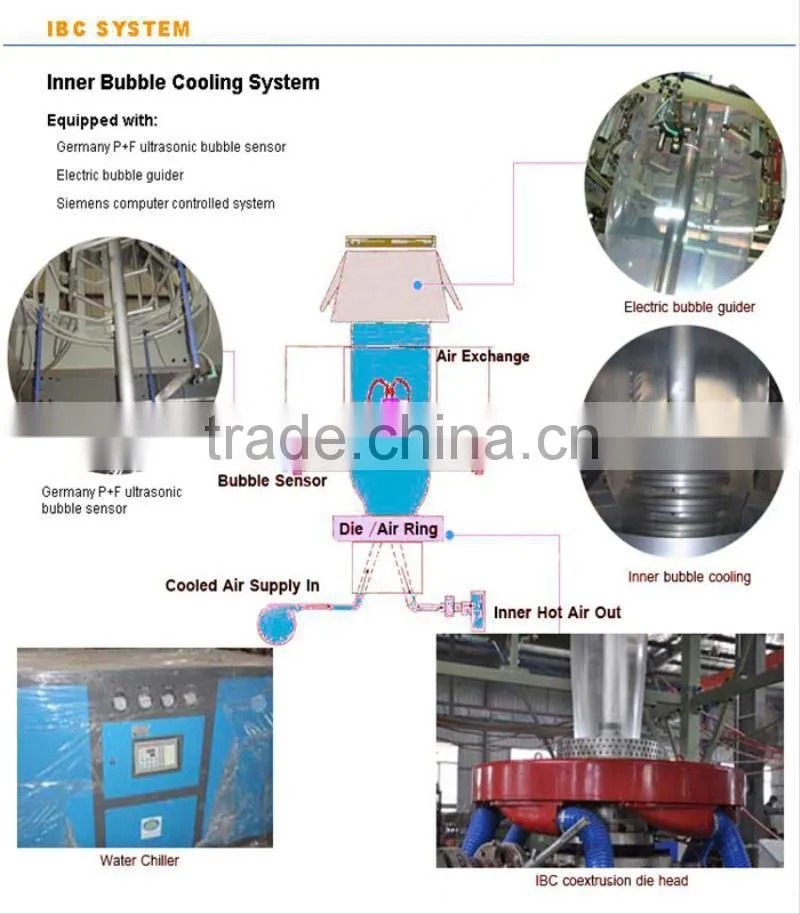

Characteristics : 1. Three-to-Seven-layer co-extruding die head adopts the internationally advanced superposed die heads, of which each layer can heat and receive thermal insulation medium independently and can insulate the heat effectively, which is grog for blowing and making plastic film with difference temperature. The die head is of advanced construction and even arrangement of spree-runner that can ensure the steady Fluid and even thickness of film. 2. The traction system adopts ±360·swing and uniform rotation in level direction to meet the requirements for high precision and high-speed printing. The cooling system in IBC is an internationally advanced technology today. The system adopts four ultrasonic wave probes to count the tested information, and at the same time, to guarantee the size of the film bubble steadily while replacing the hot air in the film bubble through the control and regulation of in -out air output. It can increase the production output as well as its transparency and added value 3. Computer control system Main technical variables:
| Model | SJ-45×3/FM1000 | SJ-50×3/FM1200 | SJ-55×3/FM1500 |
| Diameter of screw | φ 45mm | φ 50mm | φ 55mm |
| Diameter of screw L/D | L/D30:1 | L/D30:1 | L/D30:1 |
| Screw rev | 15-150r/min | 15-150r/min | 15-150r/min |
| Cooling-mode of bubble film | Double Air Vent Air Ring MLLDPE LLDPE LDPE EVA | ||
| Applicable materials | |||
| Power of main motor | 11kw×3 | 15kw×3 | 18.5kw×3 |
| Max. Extrusion Output | 110kg /h | 125kg /h | 150kg /h |
| Matrix specification | φ 200mm | φ 250mm | φ 300mm |
| Single-face Thickness of film | 0.02 -0.20mm | 0.02 -0.20mm | 0.02 -0.20mm |
| Max. Reduced diameter of film | 1000mm | 1200mm | 1500mm |
| electric capacity | 78kw | 90kw | 105kw |
| Machine of weight | about 18000kg | about 18000kg | about 20000kg |
| Overall diameter(L×W×H) | 8800×4600× 8000mm | 9000×4800× 8500mm | 9700×5000× 9000mm |
If required, the seller will dispatch the technician to your country for installation, commissioning, adjusting the machine
and training the workers at your plant. This price is inclusive of the fee of installation and debugging. However the buyer
should take on all costs required during our technician’s stay in the buyer’s country, including visa procedure, round airplane tickets, accommodation, and food and out of pocket expenses.
Woodencase or stretch film package for Film blowing machine
