Rotary Die PP Film Making Machine
PRODUCTS WORKSHOP
1. Safety first, quality first .
2. Strict and advanced workshop management system .
3. The human production, people-oriented .
4. High quality products to provide high quality environment

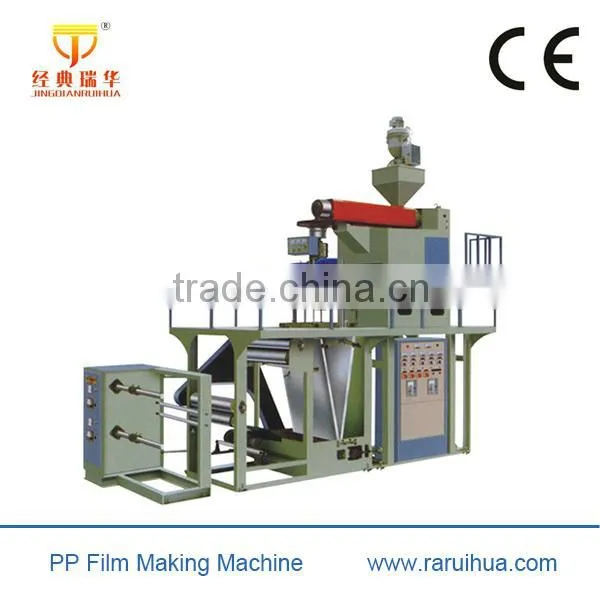

PP Plastic Film Blowing Machine
USE:
1.Rotary Die PP Film Making Machine is used for blowing plastic film with stretch, like pp stretch film, stretch wrapping film, cling film, etc.
2. Which are widely used for packing liquid,industrial products,garments and textile and printing lamination etc.
3. The cylinder and the screw stems of the extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing.
4. The auxiliary machine has a platform working table for making operation easy and is equipped with dubble stabilizing ring.
5. Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tension and make even and roll-changing easy.
Main Technical Variables:
Type |
H55 |
H60 |
H70 |
Diameter of screw |
55 |
60 |
70 |
L/D |
26:1 |
26:1 |
26:1 |
Reduced diameter of film(mm) |
100-500 |
100-600 |
300-800 |
Single-face Thickness of film(mm) |
0.01-0.1 |
0.01-0.1 |
0.01-0.1 |
Max.Extrusion(kg/h) |
30 |
45 |
60 |
Power of main motor(kw) |
11 |
15 |
18.5 |
Power of traction roller(mm) |
1.1 |
1.1 |
1.5 |
Length of Traction roller(mm) |
550 |
650 |
850 |
Outline diameter(LWH)(mm) |
450020003800mm |
480025004000mm |
500028004500mm |
Weight(T) |
3T |
4T |
5T |
1.Q:Are you a factory or trading company ?
A:We are a factory
2. Q:Where is your factory located ?How can I visit there ?
A:Our factory is located in Ruian City , Zhejiang Province ,China. It's about 40 minutes by plane from shanghai (5 hours by train ) All our clients from home and abroad are warmly welcome to visit us
3. Q:How is your after-sales service ?
A:We have been in this printing machine line of business for more than many years , we will send our professional engineer to install and test machine .So our after-sales service is always reliable
4. Q:How can I get sample bags ?
A: We are honored to offer sample bags
5. Q:If your machines can print ..........
A : Our machines is multifunction , can do roll to roll printing , such as paper, plastic , woven , nonwoven .Surely , you can offer your products, Let us confirm it . we will suggest you the best project.
6 .Q:How does your factory do regarding the quality control ?
A:We are the technical factory , we put more time to the quality control
---------------------------------------------------------------------------------------------------------------
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use your film blowing equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
In one words,your satisfication is our persuit forever!
More details, pls contact freely:
