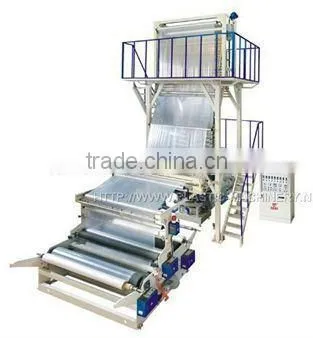

Plastic Packing Film Blowing Machinery

Name: Plastic Packing Film Blowing Machinery
Brand: JINGDIANRUIHUA
SKU: 112358579
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Film

Plastic Processed:

Other, HDPE,LDPE,LLDPE

Ruian Ruihua Printing Packing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo port/Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Film

Plastic Processed Other, HDPE,LDPE,LLDPE

Blow Moulding Type Extrusion Blow Moulding

Automatic Yes

Place of Origin Zhejiang, China

Brand Name JINGDIANRUIHUA

Model Number LD/LLDPE High speed film blowing machine SJ75-1500

Voltage 220V/380V

Power(W) 55kw

Dimension(L*W*H) 6.5*3.2*5.5m

Weight 4500kg

Certification CE/ISO9000 for LD/LLDPE High speed film blowing machine

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

LD/LLDPE High speed film blowing machine

Characteristics:

1.Suitable for produce agriculture film of 100% LLDPE or LLDPE

mix with other raw material

2.Adopt the most newly advanced technology as heat flow way,

extrude to shape film,special for mulch air ring

3.Has lots of advantage like design science,operate and maintain conveniently,stably performance.

4.Has the character of good plasticize, high physical and mechanical performance,strong tear resistance.

Main Technical Parameter:

Model	Die ameter of Screw(mm)	L/D Of screw	Screw and Cylinder material	Rotational speed Of screw	Power of Mail Motor	Output (kg/hr)
SJ75-1500	75	28:1	SCAM-645 38CRMOLA	0-100 r/min	22kw	90
SJ85-2000	85	28:1		0-100 r/min	37kw	110
SJ100-2500	100	28:1		0-100 r/min	45kw	150
SJ120-3000	120	28:1		0-100 r/min	65kw	200

Model	Max Folding Diameter of film	Thickness of Film(mm)	DIE spec	Total Power	Installing dimensions (L×M×H)	Weight
SJ75-1500	1500	0.008-0.10	400mm	55kw	6.5×3.2×5.5m	4.5T
SJ85-2000	2000	0.008-0.10	500mm	75kw	8.0×3.8×7.0m	6.5T
SJ100-2500	2500	0.01-0.10	600mm	90kw	10×4.2×8.0m	9.0T
SJ120-3000	3000	0.01-0.10	700mm	100kw	11×4.5×10m	11T
