Specifications
MPPT/PWM/waterproof controllers,wires,clips,bracketA grade solar cells
ISO/CE/TUV/ROHS
efficency 17.26%

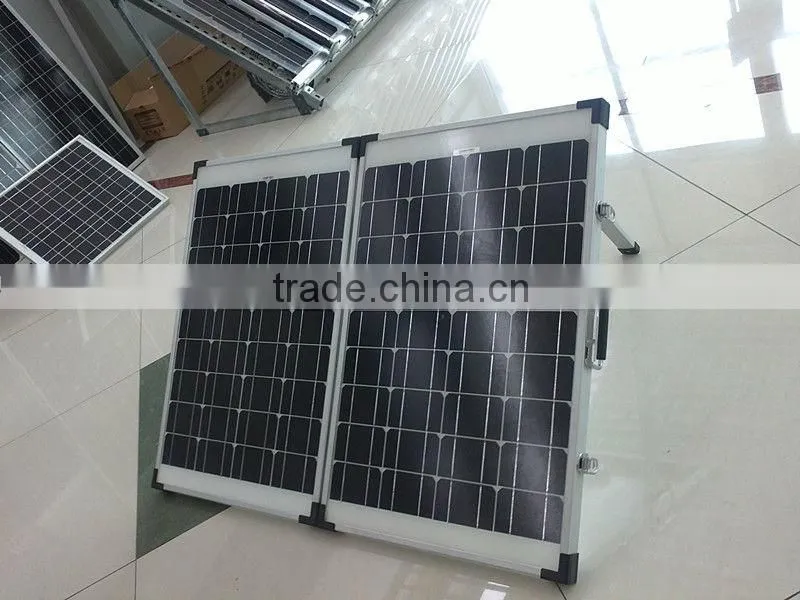

Shanghai SunShine Portable Folding Solar Panel
HOT~
100W/120W Folding Solar Kit;portable solar panel
fast delivery&high quality&low price.
More size and models are available ,from 20w to 160W
High efficient crystalline silicon solar cells.
Stainless steel telescopic legs (Level can rotate 180 degrees)
High-strength low-iron toughened glass; Anodized aluminum frame

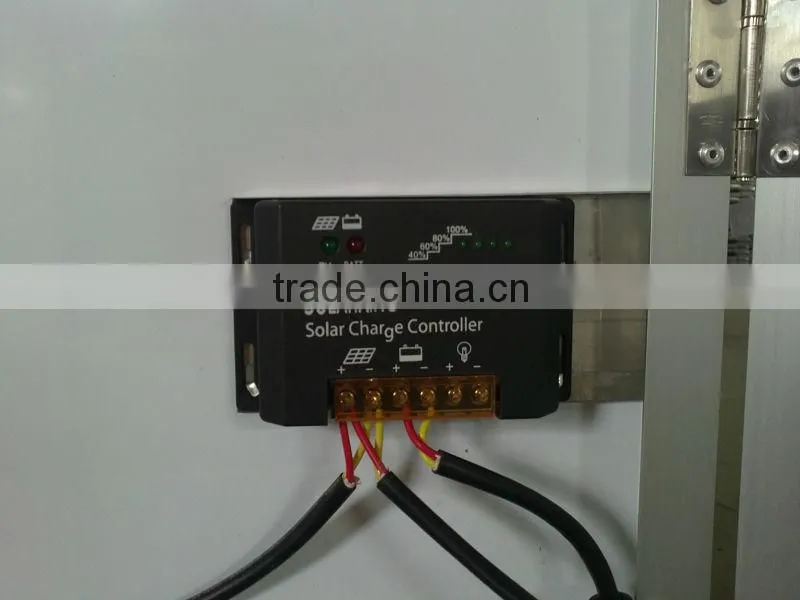

with a charge controller with LED charge status display and electronic circuit protection
Long life time: >=25 years, small attenuation (Resistance to humidity and salt fog corrosion)
With whole set of accessories :Carry bag ,Controller,Cable, Alligator Clip,junction box and Supporting Leg,
suitable for home/caravan/4WD (lighting, TV,small pumps and other electrical applicants)
Warranty: 12 months on assembly, 25 years on solar panels
MATERIALS:
•Advanced EVA encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation
•The sturdy, anodized aluminum frame allows the modules to be mounted on a variety of standard racking systems and to withstand harshest conditions
•Ultra reliable bypass diodes prevent damage through overheating due to shaded or defective cells
•Innovative, environmentally friendly packing method using pile-edges ensures modules arrive in perfect condition
•New frame design incorporating hexagonal shaped drainage holes, with more grounding holes, provide flexible installation and use
EFFICIENCY:
•Low voltage-temperature coefficient allows higher power output at high-temperature condition
•High efficient, high reliable solar cells ensure our product output stability
WORK:
• Under normal lighting conditions, put the unfolded solar panel toward the sun direction, then red and black alligator clips touch positive and negative ends of the battery respectively. If the “Charge” light red and the “Load1” light green , it shows that the system is charging the battery normally . At the meantime , it can load ( 12V light or other electric appliances ) connect to the L + and L- .
PROTECTION FUNCTION:
• The solar controller have overcharge or undervoltage protection function for battery. When the charging voltage is higher than 14.4V , the controller will turn off charging automatically ; When the battery voltage is lower than the protection voltage 10.8V , the controller turn off output automatically to protect the battery from damage . At the meantime , the digital light flash and it can’t charge .
Attention:
In the case of no load, do not connect the positive and negative.
This is ShangHai Sunshine Solar System Electric Co.,Ltd.
We manufacture solar products for several years in Shanghai China; The feedback is OK.
Nice,Interested?
All series of regular modules are manufactured to the strictest engineering guidelines, ensuring each module meets the international standards of quality and safety.
Notes: We can design our products to meet customer's special needs.
Quality and Safety:
A).Strict quality monitoring process,100% current and voltage.
B).Tests guarantee that the modules meet the power requirement.
C).Our machine lines are CE & ISO certificate.
D).12 months on assembly,25 years on solar panel.
Factory Show:

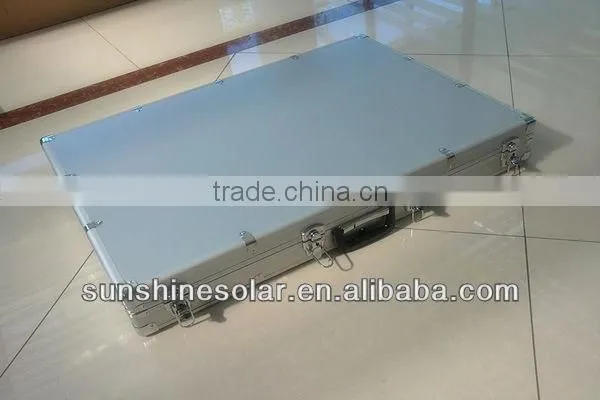

if you want to take the folding panel with a suitcase,please indicate in the inquiry.
Please try to order sample or visiting in our factory , we trust it worth to do in long term business.
feel free to contact us!
