Specifications
Adopting high efficient crystalline silicon solar cells.Customized products are welcome.
High Efficiency Level,
CE and ISO
Good News! 120W Monocrystalline Silicon folding solar panel factory directly supply.
Collapsible (space saving), waterproof, easy to carry
A).120W Monocrystalline silicon module consists of a series of monocrystalline silicon solar cells.
B).High-strength low-iron toughened glass, ageing-resistant EVA and complex film of good weather resistance are sequentially laminated to the module to make it high in light transmittance and mechanical strength.
C).Long life time: >=25 years, small attenuation.
D). by toughened glass of high light transmittance and high mechanical strength Adopting airtight , waterproof and multifunctional junction boxes to guarantee the safe of the module.
E).Good weather resistance, wind tightness and hail suppression. Preventing the panel from being corroded by moisture and salt fog; unaffected by geographic environment.
F). Excellent performance under low light environments(mornings, evenings and cloudy days)
G).Withstand high wind and snow loads

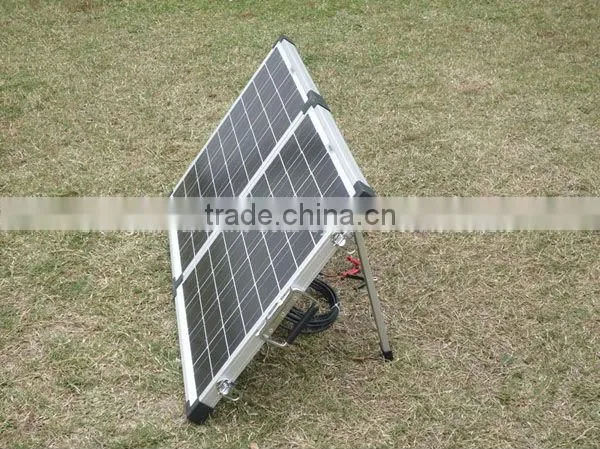

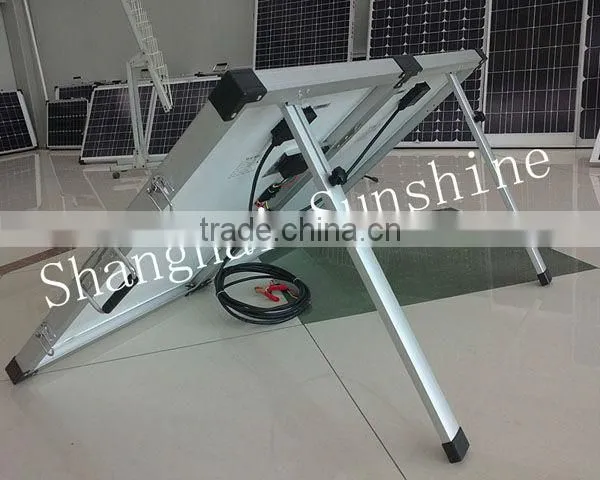

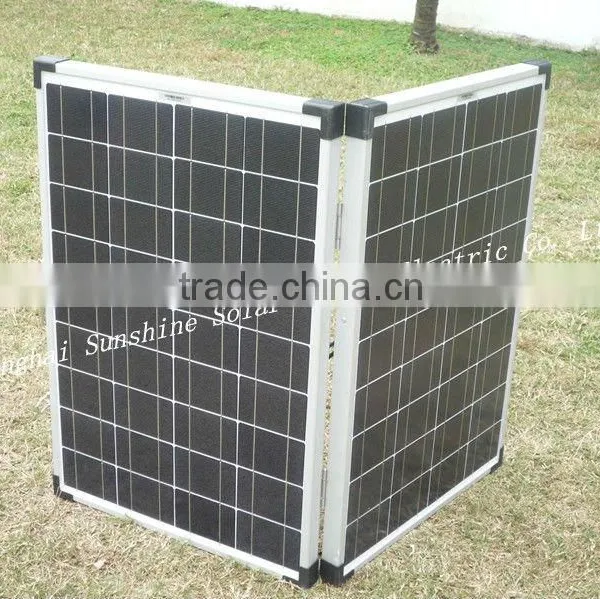

Solar Panels Pictures:
A)Portable solar panel kits , With wires(as customers' request),clips,Supporting Leg,
With whole set of accessories (Single Bag,Controller,Cable,Alligator Clip,Connector)
B) 2 mono folding solar panels;Power:120W
C) easy to carry ,use
D) CE& ISO & TUV
Various specifications:
| Modle No | Pmax(W) | Vmp(v) | Imp(A) | Isc(A) | Voc(V) | Dimensions | Net Weight |
| YZ-020ZD | 20 | 18 | 1.11 | 1.2 | 21.6 | 309*359*70 | 4.6kg/pc |
| YZ-030ZD | 30 | 18 | 1.67 | 1.8 | 21.6 | 269*559*70 | 6.1kg/pc |
| YZ-040ZD | 40 | 18 | 2.22 | 2.4 | 21.6 | 559*359*70 | 7.6kg/pc |
| YZ-050ZD | 50 | 18 | 2.91 | 3.23 | 21.3 | 505*431* 70 | 8.0kg/pc |
| YZ-060ZD | 60 | 18 | 3.33 | 3.6 | 21.6 | 615*431*70 | 8.5kg/pc |
| YZ080ZD | 80 | 18 | 4.44 | 4.8 | 21.6 | 606*549*70 | 10.2kg/pc |
| YZ-100ZD | 100 | 18 | 6.67 | 7.2 | 21.6 | 759*559*70 | 12 kg/pc |
| YZ-120ZD | 120W | 18V | 6.67A | 7.2A | 21.6V | 819*544*70 | 13kg/pc |
| YZ-160 | 160 | 18 | 8.89 | 9.6 | 21.6 | 809*680*70 | 18kg/pc |
Package Show: Packing is very solid!
Application:
Powering lap-tops, phones, lights, radios, small pumps,fridges,fans etc, Ideal for caravans and camper and so on.
Production Line:
We are professional in manufacturing solar modules.
About OEM&ODM:
Customized Logo |
Acceptable |
Changing on Material, Color, Shape |
Acceptable |
Development on Green Science |
Acceptable |
Assistant on Solar Energy development |
Acceptable |
Quality and Safety:
a.Strict quality monitoring process,100% current and voltage
b.Tests guarantee that the modules meet the power Requirement.
c. Our modules have passed several international Certificates and tests (CE&ISO&TUV)
d.12 months on assembly,25 years on solar panel.
Recommend Applications:
Portable power supply
Water pumping
Camping power supply
RV or Caravan power charging
Emergency use power supply
Remote location power supply
You can also take a 120watt with a suitcase,please indicate that in the inquiry.
skype: lily.xue3
please try to order sample or visiting in our factory , we trust it worth to do in long term business.
Basic Information:
| Company Name: | Shanghai Sunshine Solar System Electric Co.,Ltd | |
|---|---|---|
| Year Established: | 2000 | |
| Business Type: | Manufacturer | |
| Main Products: | Portable Solar Panel Kit; Home Solar System; 150w Car Power Inverter; Solar Street LED lamp ; Flat Solar Panel;Solar Roof Hook | |
| Other Products/Services: | solar backpack,solar power bag,solar case,portable battery,solar inverter | |
| Operational Address: | No.288 Tuanjie village Huinan Town,Pudong New Area,Shanghai,China (Mainland) | |
| Number of Employees: | 10-20 People View management | |
| Worker Staff: | 80-100 People | |
| No. of QA/QC Staff: | 10-15 People | |
| Management Certification: | CE & ISO 9001:2000 ISO 14001:2004 |
