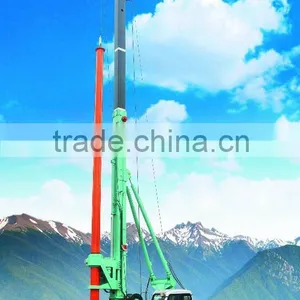

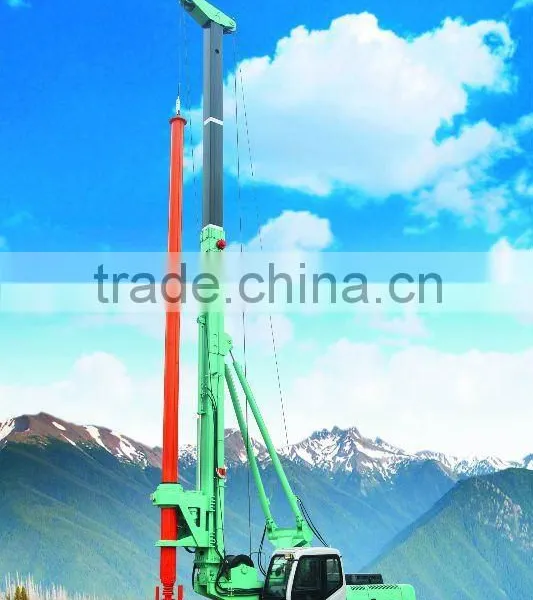

CD1255 rotary drilling rig
CD1255 Rotary Drilling Rig Technical Data | |||
Drilling diameter |
mm |
6001800 |
|
Max. drilling depth |
m |
55 |
|
Overall measurement |
Working data |
mm |
18050×3200×7033 |
Transport data |
mm |
14670×3200×3325 |
|
Operating weight of total machine |
kg |
41000 |
|
Engine |
Model |
|
6bt5.9 |
Rated power |
KW/rpm |
130/2100 |
|
Type |
|
Turbocharged direct-injection |
|
Rotary drive |
Max. torque |
KN.m |
120 |
Rotation speed |
r/min |
1--18 |
|
Crowd cylinder |
Max. push |
KN |
150 |
Max. pull |
KN |
100 |
|
Max. stroke |
m |
2 |
|
Main winch |
Max. line pull |
KN |
150 |
Max. line speed |
m/min |
80 |
|
Rope diameter |
mm |
24 |
|
Auxiliary winch |
Max. line pull |
KN |
60 |
Max. line speed |
m/min |
50 |
|
Rope diameter |
mm |
18 |
|
Leveling around |
Adjust the angle column |
Degree |
±3About |
0-100After | |||
Chassis |
Max. traveling speed |
km/h |
2.8 |
Max. grade ability |
|
40% |
|
Min. ground clearance |
mm |
460 |
|
Width of track shoes |
mm |
800 |
|
