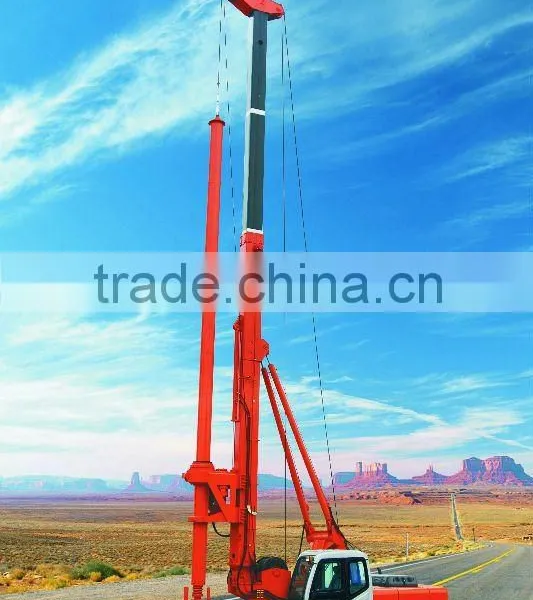

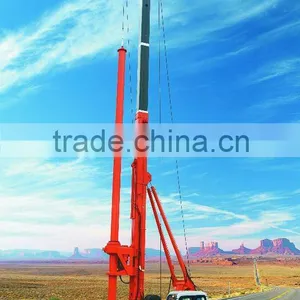

CD856A Rotary Drilling Rig
US$ 1 - 2
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
port of china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Rotary Drilling Rig
Place of Origin
Zhejiang, China
Brand Name
CHUANGDAO
Model Number
CD856A
Usage
Other
CD856A rotary drilling rig
CD856(A)Rotary Drilling Rig Technical Data | |||
Drilling diameter |
mm |
6001600 |
|
Max. drilling depth |
m |
56 |
|
Overall measurement |
Working data |
mm |
18000×3200×6933 |
Transport data |
mm |
14420×3200×3325 |
|
Operating weight of total machine |
kg |
38000 |
|
Engine |
Model |
|
6bt5.9 |
Rated power |
KW/rpm |
108/2100 |
|
Type |
|
Turbocharged direct-injection |
|
Rotary drive |
Max. torque |
KN.m |
80 |
Rotation speed |
r/min |
1--22 |
|
Crowd cylinder |
Max. push |
KN |
150 |
Max. pull |
KN |
100 |
|
Max. stroke |
m |
2 |
|
Main winch |
Max. line pull |
KN |
120 |
Max. line speed |
m/min |
70 |
|
Rope diameter |
mm |
24 |
|
Auxiliary winch |
Max. line pull |
KN |
60 |
Max. line speed |
m/min |
50 |
|
Rope diameter |
mm |
18 |
|
Leveling around |
Adjust the angle column |
Degree |
±3AboutA |
0-100After(A) | |||
Chassis |
Max. traveling speed |
km/h |
3 |
Max. grade ability |
|
40% |
|
Min. ground clearance |
mm |
460 |
|
Width of track shoes |
mm |
800 |
|
