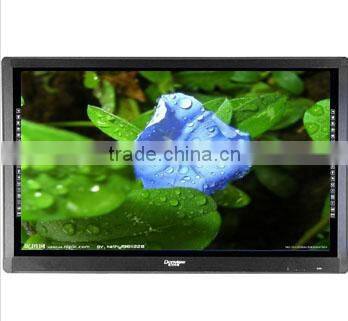

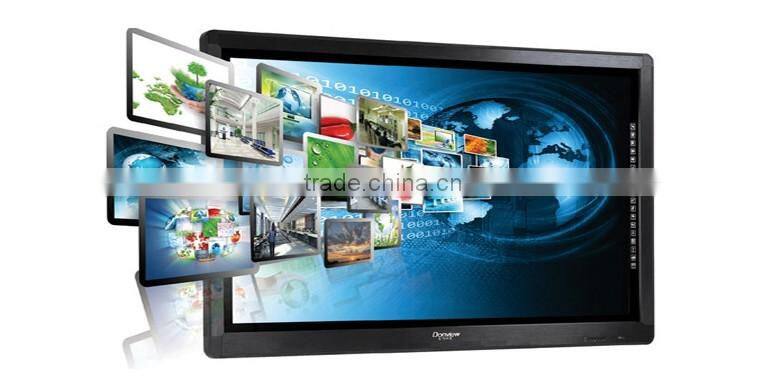

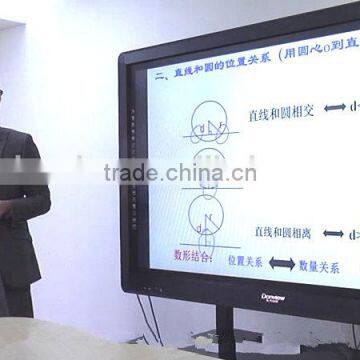

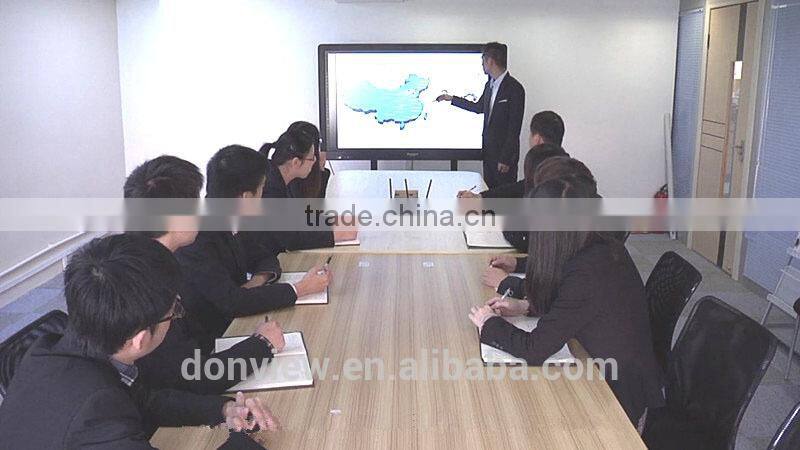

LCD screen PC,TV,projector all in one smart touch board

Model

DS-65WD-L01(P)

DS-70WD-L01(P)

DS-84WD-L01(P)

Size

65 inch

70 inch

84 inch

Screen Parameters

LCD Components

TFT LCD   with LED backlight

Aspect Ratio

16:9

Max Resolution

1920×1080

1920×1080

3840×2160

Brightness

350-450cd/m²

Contrast Ratio

4000:1

5000:1

5000:1

Visual Angle

178°

Max. Colors

1.07B colors(10bits)

Reliability

≥30000H

≥50000H

≥50000H

TV System

Input Interface

USB *2,HDMI *3,VGA *1,Y *1,PB *1, PR *1,YPBPR*,AV *1, TV*1, AV Audio L *1, AV Audio R *1,Spdit*1,AV*1

YPBPR’’1,AV input’’1,TV input’’1,AV Audio L input’’1,AV Audio R input’’1

Output interface

Spdif *1,AV *1

Voice Output Power

2’*8 W@8Ω

Color System

PAL/SECAM/NTSC

Support Signal of Ypbpr

Support 480P/I,576P/I,720P,1080P/I

VGA Compatibility Format

VGA,SVGA,XGA,WXGA,SXGA

Power supply

A.C:100~240v 60/50 Hz

Operating Temp/Hum

0°C~40°C; 20%~80%

Power Consumption

245W

240W

282W

Standby Power

< 1W

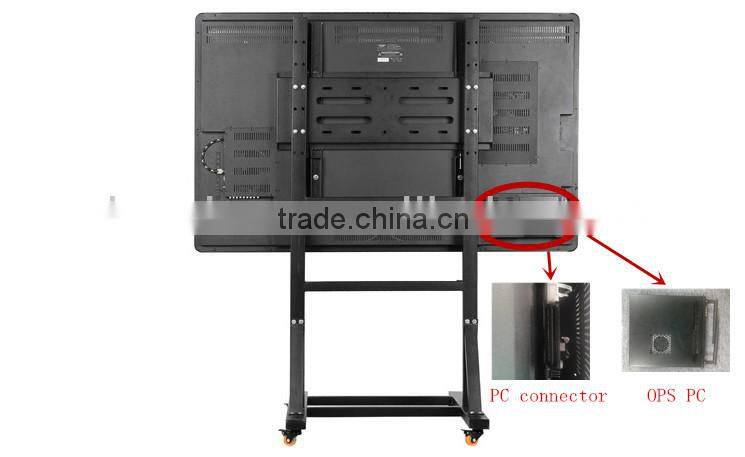

Integrated PC

(Optional)

OPS PC

Pluggable and Easy-maintainable

CPU

Intel Core G1610

RAM

4GB DDR3

Hard Disk

500G

Power Requirement

AC input:100-240V/50-60HZ     DC output:12V/5A

Ethemet

10/100/1000Mpbs

WIFI/3G

802.11/b/gn

HDMI Cable

150CM

Operating system

Windows 7 Ultimate 32bits

Touch

Feature Index

Response Time

Single touch:less than 7ms,dual touch: less than12ms.

Excursion

Without excursion

Resistance to Light Interference

Can work normally under 30,000 illumination

Normal Work Scope

Work normally in effective range of the display screen,without blind zone

Touch Precision

4096 ×4096

Touch Parameter

Calibration Precision

<2mm

Mouse speed

100Points/Second

Light Transmittance

100%

Minimum Touch Object

≥5mm

Touch Technology

Infrared technology

Power consumption(W)

<2.5W, work under USB 5V voltage ,electric current less than 500mA

Touch Frame Feature

Free from driver and correction, Waterproof,dustproof,ultra-thin light

Protection and safety

Screen Protection and safety

AG toughened glass(anti-glare) to reduce reflected light from the glass.Reflectance less than 1%

Quality certification

CCC,FCC,CE,ROHS,ISO9001,14000.
