2015 Newly Lanch Factory Multi Touch Screen Display

Specifications

Features:

•  User - friendly and elegant design

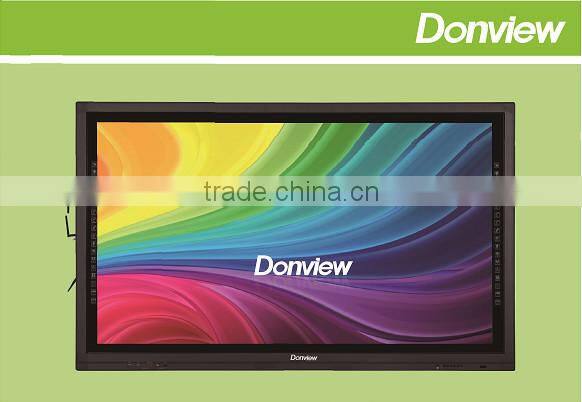

Donview all-in-one touch screen’s design is elegant, the frame is ultra-narrow with elegant grey color, and touch screen’s bottom frame design is concave slope, the product back’s design is concise.

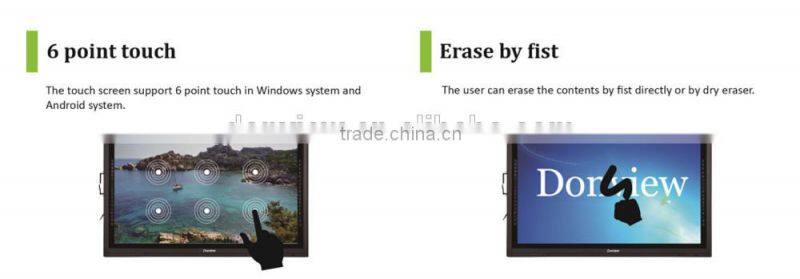

•  6 point touch

The touch screen support 6 point touch in Windows system and Android system.

•  Erase by fist

The user can erase the contents by fist directly or by dry eraser.

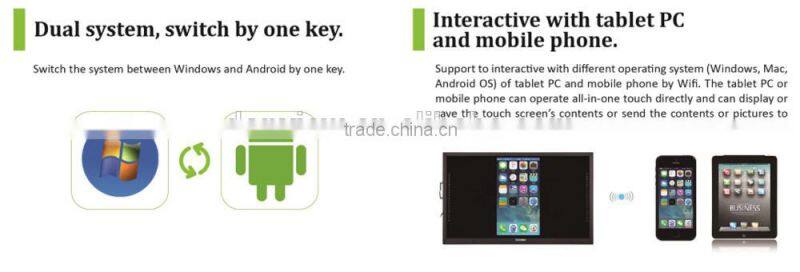

•  Dual system, switch by one key.

Switch the system between Windows and Android by one key.

•  Interactive with tablet PC and mobile phone.

Support to interactive with different operating system (Windows, Mac, Android OS) of tablet PC and mobile phone by Wifi. The tablet PC or mobile phone can operate all-in-one touch directly and can display or save the touch screen’s contents or send the contents or pictures to touch screen directly.

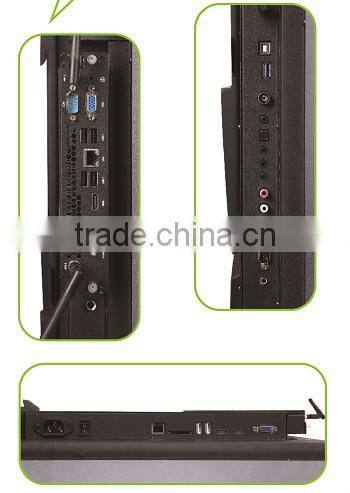

•  USB interface is on front

USB interface is on front for easy use and convenience.

•  Power on/ off by one key

Power on/off all-in-one touch screen and PC by one key, avoiding computer problem as a result of unusual operation.

•  Operate TV by finger touch

Operate the TV Menu on the touch screen through finger touch directly.

• Annotation in all signals

The user can achieve the annotation after connecting computer to touch screen without need to install application software.

• Shortcut key on both sides of touch screen

18 shortcut key on the left side and 18 shortcut key on the right side, ensure the user to write or operate it easily and conveniently.

• Powerful teaching software, tailored teaching resources.

Donview teaching software equipped with a wealth of tailored teaching tools, teaching resources, simulation experiments of different subjects.

• Durability

Touch screen with features of anti-glare, explosion-proof, waterproof, dustproof, Anti-light interference, low consumption, without radiation.

• Energy saving

  All-In-One Touch Screen (Built-in PC) , Technical Parameters and Specification
  Model				DS-55IWMO-L02PA	DS-65IWMO-L02PA	DS-70IWMO-L02PA	DS-84IWMO-L02PA
  Product Size				55inch	65 inch	70inch	84inch
  Screen Parameters	Screen Type			LCD
  	Aspect Ratio			16:9
  	Backlight			LED
  	Max. Resolution			1920(Horizontal)×1080(Vertical)
  	Brightness			350-400cd/m²
  	Contrast Ratio			Max:4000:1;Min:3200:1
  	Viewing Angle			178°
  	Max. Colors			1.07B colors(10 bits)
  	Lifetime			≥30000H	≥30000H	≥50000H	≥50000H
  TV System	Input Interface			USB Touch Input*2,HDMI Input*4 (1 in front,1 for connecting built-in PC),VGA Input*1,PC Audio Input*1 , YPbPr Input*1 ,AV Input*2(Include Audio),ANT(RF)Input*1,TV USB Input*4(1 in front,1*USB3.0), RJ45*1,SD Card Socket*1,RS232*1,Microphone*1
  	Output Interface			Spdif/Optical Output*1,AV Output*1,Sound Output*1
  	Sound Output Power			2*12W @8Ω
  	Color System			PAL/SECAM/NTSC
  	Sound System			D/K,B/G,I,M
  	Audio Preset Mode			Standard,movie, sports, music, user
  	Support Input Signal of YPbPr			Support 480P/I,576P/I,720P,1080P/I
  	VGA Compatibility Format			VGA,SVGA,XGA,WXGA,SXGA
  	Power Supply			A.C.:100~240v 60/50 Hz
  	Operating Temperature/Humidity			0°~40°C;20%~80%
  	Standby Power			<1W
  Android TV System	Configuration			CPU:quad core, 1.5GHZ,internal storage1G,4Ginterior storage on board, operating system Android4.2,support APP expansion.
  	Functions			Support the function of writing, annotation, erase, change different size of writing, color, etc. Support “one key switch” about the touch function between TV and computer or other external equipment. Support touch of Menu in any access of TV. Support the function of energy conservation in black screen through touching the state shortcut key by one time, and can wake-up again by touch one time. Support browse webpage, and support HTML5 browser. Support play local and online HD video, support for 1080P.  ……
  Built-in Computer System	OPS micro-computer (Pluggable type and easy maintenance), Customized configuration is available.
  	CPU		intel Core G1610/intel Core i3 or Customization.
  	Internal Storage		2GB/4GB DDR3 or Customization
  	Hard Disk		320G/500G or Customization
  	Power Requirement		AC input:100-240V/50-60HZ DC output:12V/5A
  	Ethernet Network		10/100/1000Mpbs
  	WIFI/3G		802.11/b/gn
  	HDMI Cable		Built-in HDMI cable
  	Operating System		WINDOWS7 32bit Ultimate
  Touch Function	Touch Way		Support 6 point touch
  	Operating Way		Support single click, double-click, right-click and drag.
  	Writing, drawing lines, annotation		Support
  	Touch Correction Function		Support
  	Work Without Driver		Support
  	Interface		USB
  	Touch Durability		60,000,000 times.
  	Touch Ways		Fingers, pens, or other opaque objects.
  Touch Feature Index	Response Time		Single touch: less than7ms, dual touch: less than 12ms.
  	Excursion		Without excursion,no change with the environment.
  	Writing and Drawing		Writing fluently, without breaking and jag.
  	Resistance to Light Interference		Work normally under 30,000 illumination.
  	Normal Work Scope		Work normally in effective range of the display screen, without blind zone.
  	Touch Precision		1mm
  Touch Parameter	Calibration Precision		<2mm
  	Cursor Speed		100 Points/Second
  	Light Transmittance		100%
  	Minimum Touch Object		>=5mm
  	Touch Technology		Infrared technology
  	Touch Frame		Front maintenance,detachable design.
  	Wireless Interactive Display Technology (Optional)		Can enjoy the online music, pictures, video and send it to the all-in-one touch screen by way of wireless, or can control both sides interactively.
  	Power Consumption(W)		<2.5W,work under USB 5V voltage,electric current less than 500mA.
  	Touch Frame Feature		Free from driver and calibration. Waterproof, dustproof, ultra-thin, light.
  Protection and Safety	Screen Protection and Safety		AG toughened glass (anti-glare) to reduce reflected light from theglass.Reflectance less than 1%.
  Packaging Accessories		Power Cable	3meter
  		Writing Pen	2pcs
  		HDMI Cable	No
  		USB Cable	7meter
  Installation Ways			Standard: Wall-mounted Installation. Opitional: Mobile Floor Stand Installation.
  Warranty			Interactive flat panel and OPS PC: 1 year. Accessories: 3 years. Software: Software upgrade free for lifetime
  Quality Certification			CCC, FCC, CE, ROHS, ISO9001,14001.

Save energy by one key to turn the screen to black and can wake up again by one key.
