Voltage, Current, Apparent Power, Power 4 in 1 Digital LED Meter

Voltage, Current, Apparent Power, Power 4 in 1 Digital LED Meter photo-1
Voltage, Current, Apparent Power, Power 4 in 1 Digital LED Meter photo-2
US$ 5 - 12 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GWIEC
Model Number:
DL69
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/ Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name GWIEC
Model Number DL69
Display Type Digital Only
Phase Other, Single phase or 3-phase
Accuracy Class 1%
Output Voltage 80 - 300V
Operating Temperature 0 - 50°C
Dimensions 54 * 80 * 64 mm

Specifications

1. High Accuracy
2. Multiple Display Meter
3. Voltage, Current, Apparent Power and Active Power Meter
4. Exclusive Patented

1. Accuracy: 1%±2 Digits
2. Display:
Voltage, Current 4 digits
Apparent Power, Active Power, Power Factor in 5 digits
3. Metering Range:
a. Current:  AC 0~100A
Automatic Current Detection & Metering Range Ajustion:
<10A, 0.01 ~ 10A
>10A, 0.1 ~ 100A
b. Apparent Power: 80~300VAC, 3VA ~ 30kVA; 200~450VAC, 3VA ~ 45kVA
c. Active Power: 80~300VAC, 3VA ~ 30kVA; 200~450VAC, 3VA ~ 45kVA
d. Power Factor: 0.000 ~ 1.000
4. Data Refresh/ Sampling Rate: 2 times / Second
5. Dimension: 79 * 43 * 42mm
6. Assembling Size: 76 * 39mm
7. Only for pure sine wave power: 50 ~ 60HZ
8. Ambient Conditions: 0-50°C≤85% RH

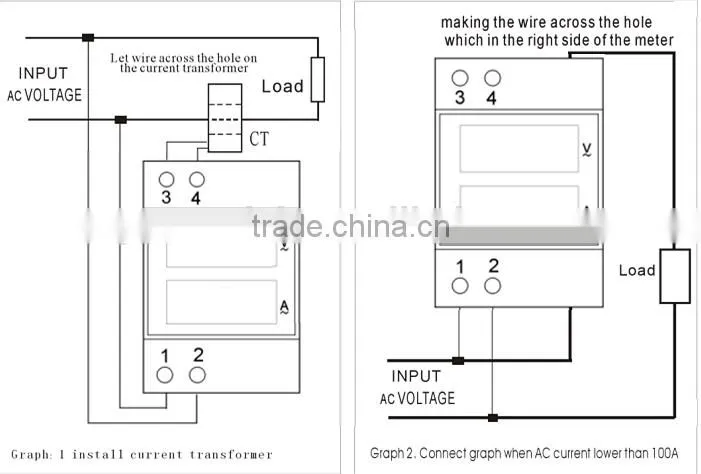

9. Current Transformer Insert



Voltage, Current, Apparent Power, Power 4 in 1 Digital LED MeterVoltage, Current, Apparent Power, Power 4 in 1 Digital LED Meter
