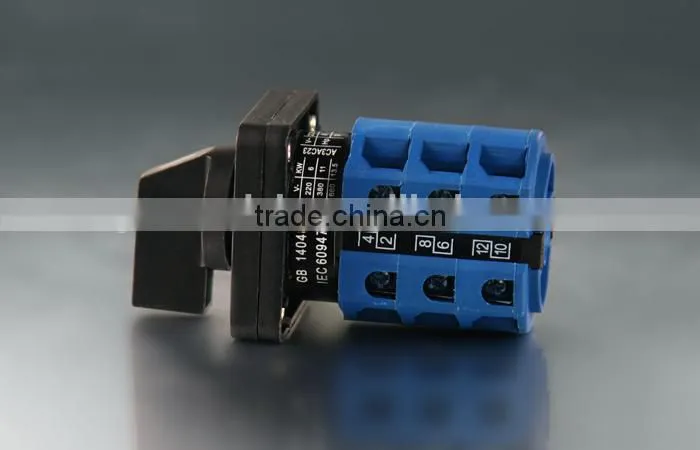

Help CenterChange Over Switch 25A LW26
Related Products
Specifications

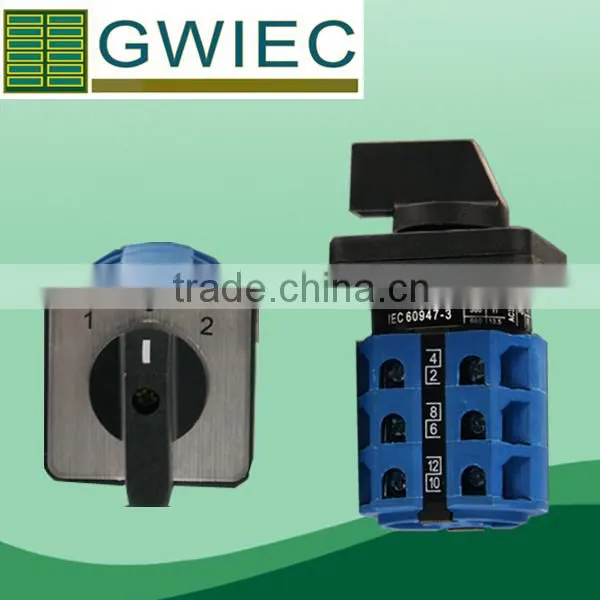

LW26 Changeover SwitchQuality A Material
2 Years' Warranty
CE Certificate
DESCRIPTIONS:
The LW26 sereies rotary switch mainly applies to 440V and below AC 50Hz or 240V and below DC circuits.
For breaking and closing,changeover of circuits under unfrequenly manual operation.And the typical application
are:control switch of 3 phase motors,control switch gear,control switch of instruments,and changeover switch
of machinery and welding machine.The series comply with the GB 14048.3,GB 14048.5 and IEC 60947-3,IEC 60947-5-1.
FEATURES:
1. Ambient air temperature does not exceed +40°c, and the average temperature does not exceed its 24°c ~ +35°c ;
2. ambient air temperature does not exceed the limit of -5°c ;
3. installation location at an altitude of less than 2000m;
4.+40°c maximum temperature, relative humidity of the air does not exceed 50%.at a lower temperature can allow a higher relative humidity.
SPECIFICATIONS:
| LW26-25 | LW26-32 | LW26-63 | LW26-125 | LW26-160 | ||||||||||
| Rated insolation voltage | Ui | V | 660 | 660 | 660 | 660 | 660 | |||||||
| Rated thermal current | Ith | A | 25 | 32 | 63 | 125 | 160 | |||||||
| Rated working voltage | Ue | V | 24 | 110 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 |
| Rated working current | Ie | |||||||||||||
| AC-21A AC-22A | A | 25 | 25 | 32 | 32 | 63 | 63 | 100 | 100 | 150 | 150 | |||
| AC-23A | A | 22 | 22 | 30 | 30 | 57 | 57 | 90 | 90 | 135 | 135 | |||
| AC-2 | A | 22 | 22 | 30 | 30 | 57 | 57 | 90 | 90 | 135 | 135 | |||
| AC-3 | A | 15 | 15 | 22 | 22 | 36 | 36 | 75 | 75 | 95 | 95 | |||
| AC-4 | A | 6.5 | 6.5 | 11 | 11 | 15 | 15 | 30 | 30 | 55 | 55 | |||
| AC-15 | A | 8 | 5 | 14 | 6 | |||||||||
| AC-13 | A | 20 | 0.5 | 0.5 | ||||||||||
| power | P | |||||||||||||
| AC-23A | KW | 5.5/3 | 11/5.5 | 7.5/4 | 15/7.5 | 15/10 | 30/18.5 | 30/15 | 45/22 | 37/22 | 75/37 | |||
| AC-2 | KW | 5.5 | 11 | 7.5 | 15 | 18.5 | 30 | 30 | 45 | 37 | 55 | |||
| AC-3 | KW | 4/3 | 7.5/3.7 | 5.5/4 | 11/5.5 | 11/6 | 18.5/11 | 15/7.5 | 30/13 | 22/11 | 37/18.5 | |||
| AC-4 | KW | 1.5/1.1 | 3/2.2 | 2.7/1.5 | 5.5/3 | 5.5/2.4 | 7.5/4 | 6/3 | 12/5.5 | 10/4 | 15/7.5 | |||
