Specifications
1).EOCR-3DE DIGITAL OVER-CURRENT RELAY2).Over-current Phase Loss Locked Rotor
3).MCU Based
4).3 Integral Current Transfor

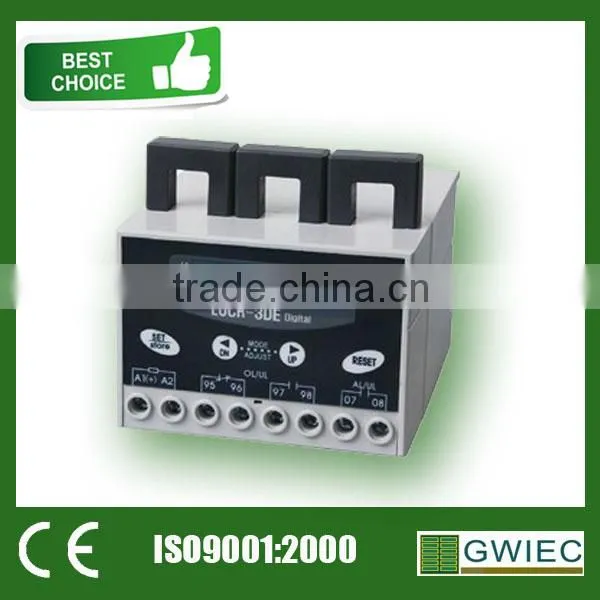

EOCR 3DE 3EZ ELECTRONIC DIGITAL OVER CURRENT OVERLOAD RELAY
DISCRIPTION
MCU Based
3 Integral Current Transformers
Over-current, Under-Current, Phase Loss, Phase
Unbalance, Phase Reversal, Locked Rotor Protection
Digital Ammeter & Trip cause indication
Selectable Trip Time-Current Characteristics
Independently Adjustable Starting Trip Delay and Operating
Trip Time
+ Load Alerting Function → EOCR-3DE
+ Ground Fault Protection → EOCR-3EZ
PROTECTION
| EOCR-3DE | EOCR-3EZ | ||
| Protective Item | Trip Time | Protective Item | Trip Time |
| Over-current | O-TIME | Over-current | O-TIME |
| under-current | 0.5~30sec | Under-current | 0.5~30sec |
| Phase Loss | 3 sec | Phase Loss | 3 sec |
| Phase Unbalance | 8 sec | Phase Unbalance | 8 sec |
| Phase Reversal | 0.1~0.3 sec | Phase Reversal | 0.1~0.3 sec |
| Locked Rotor | D-TIME | Locked Rotor | D-TIME |
| ` | ` | Ground Fault | 0.05~10 sec |
SPECIFICATION
| Model | EOCR-3DE | EOCR-3EZ | |
| Over Current Setting Range | Refer Table #1 | ||
| Ground Fault Current Setting | ` | 0.02 ~ 3A | |
| Alert Setting | 50 ~ 100% / OFF | ||
| Start Delay Time Setting (D-TIME) | 1 ~ 200 Sec | ||
| Trip Delay Time Setting (O-TIME) | INV | 1 ~ 30 | |
| DEF | 0.2 ~ 30 Sec | ||
| Control Voltage | 24VAC/DC, 110VAC±15%, 220VAC±15% | ||
| Output Relay | OL | 2-SPST | 1-SPST |
| AL/GR | AL Relay | Ground Fault Relay | |
| Rating | 3A/250VAC Resistive | ||
| Time Characteristic | In/”tc”mode | Inverse (See Curve-1) | |
| dE/”tc”mode | Definite (See Curve-2) | ||
| Troubleshooting / Trip Indication | LED Display (SSD+LED) | ||
| Current Sensing | 3-CT | ||
| Mounting | 35mm Din-rail | ||

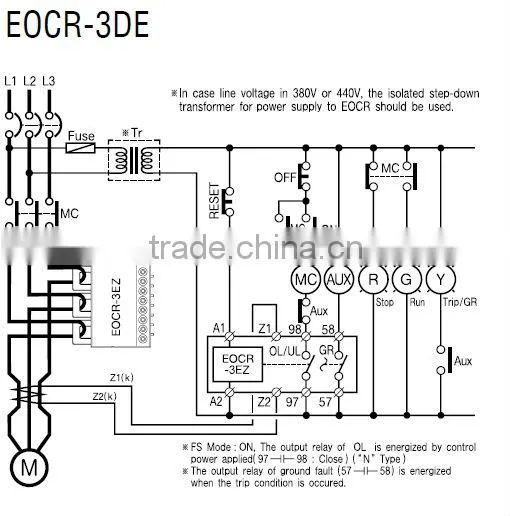

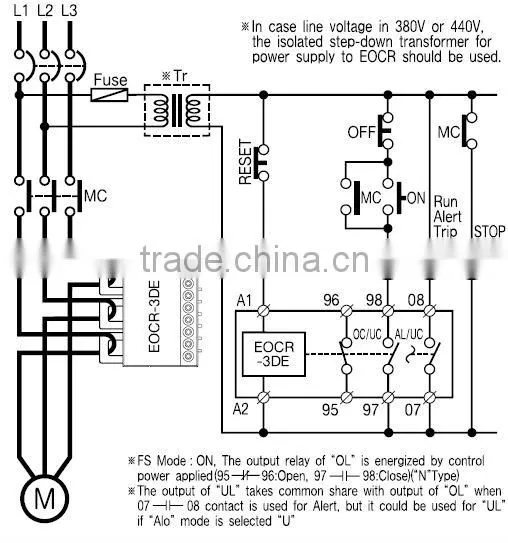

TYPICAL WIRING
Caution
The external CT should be used in case Inverse curve(toln setting) is applied over 10Amps.
FEATURES
Compact Design
3DE/3EZ : Panel Mounting Type
MCU(Microprocessor Control Unit) Based
3 Integral Current Transformers
Multiple Protection Functions
Digital Ammeter
Troubleshooting / Trip Cause Memory, Display
Adjustable Operating Features by Mode switch
Wide Current Adjustment Range
Selectable Time-Current Characteristics (Inverse / Definite)
Manual (Instantaneous) / Electrical (Remote) Reset
Test Function
Ambient Insensitive
Selectable Fail-safe and Non-fail-safe Operation Modes
