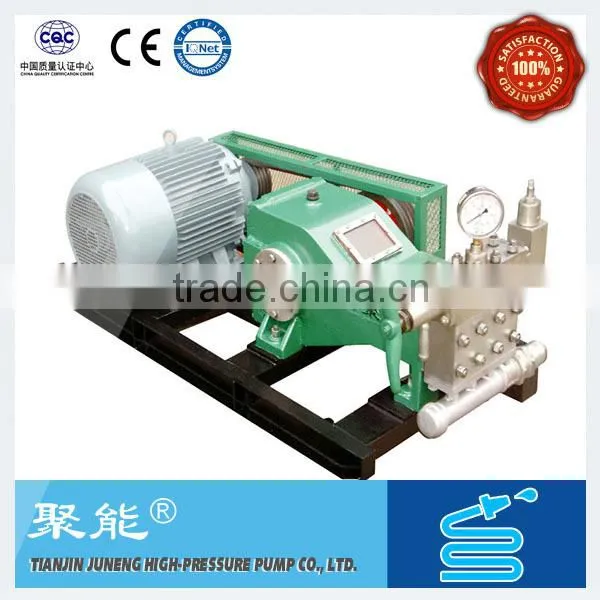

High pressure water plunger pump for cleaning and derusting
3S-2.8 Plunger pump can be used as the power source of high pressure water, and it can be applied to small and large diameter pipeline
cleaning, vessel cleaning, workpiece cleaning, derusting, waterassisted piling, water corrosion cutting and so on. The pump also can be used to transport water,emulsion and other liquids whose chemical property is similar to water.
Safety valve and throttle valve are installed at the fluid end of this product. They constitute a separate system which can regulate throttle
valve to adapt to different capacity demands. The power end of the plunger pump is in bearing driving style (between the crankshaft
and the connecting rod).The splash lubrication is adopted for lubrication method, which can operate 24-hour continuously without
cooling. Various cleaning machines, valves, high-pressure rubber hoses and spray guns can be equipped for users. All kinds of power
sources can be provided according to customer demand.
Water Inlet Dimensions 1½″
Water Outlet Connection Dimensions M22×1.5
Maximum Motor Speed |
1470r/min |
Stroke Length |
40mm | |||
Theoretical Capacity |
Motor Power(kW) |
Plunger Diameter (mm) |
||||
| 11 |
15 |
18.5 | 22 |
|||
| m³/h |
L/min | Pressure(MPa) | ||||
| 1.0 | 16.9 | 23.8 | 35 | 46.8 | 63.7 | 15 |
| 1.8 | 30 | 13.4 | 19.8 | 26.4 | 35.9 | 20 |
| 2.1 | 36 | 11.2 | 16.5 | 22 | 29.9 | 22 |
| 2.8 | 47 | 8.5 | 12.6 | 16.8 | 22.9 | 25 |
Note: above parameters are theoretical data when the medium proportion is 1.0.
One-year warranty
Repairing and maintaining service is provided timely once received the inquiry, taking the customer satisfaction as first priority.
Service hotline & hotmail is provided for customers real time consulting.
Quality-related problem will be dealt with by professional staff at the first time getting the feedback from customers.
We provide on-site technical service at home and abroad.
