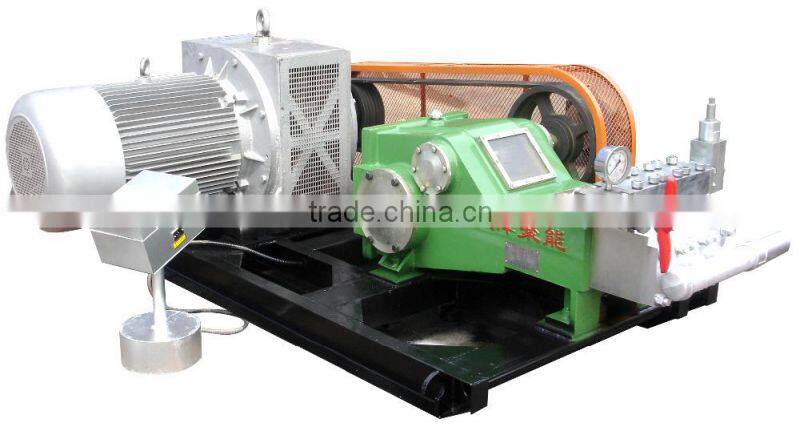

High Pressure Water Jet Cleaning Machine
3S3 series high temperature reciprocating pump can be used as the power source of high-temperature and high-pressure water, and it can
be applied to small and large diameter pipeline cleaning, vessel cleaning, workpiece cleaning, derusting, also in powder metallurgy and
other fields, it can be used to transport water, emulsion and other liquids whose chemical property is similar to water.
Safety valve and throttle valve are installed at the fluid end of this product. They constitute a separate system which can regulate throttle
valve to adapt to different capacity demands. The power end of the pump is in bearing driving style (between the crankshaft and the
connecting rod). The splash lubrication is adopted for lubrication method, which can operate 24-hour continuously without cooling. All
kinds of power sources can be provided according to customer demand.
Special tips: due to the large capacity of 3S3 water pump, the diameter of the nozzle must match the pump capacity and working pressure.
If the nozzle is too small, lots of water will discharge through the overflow valve, which can cause the return pipe or even the pump jitter.

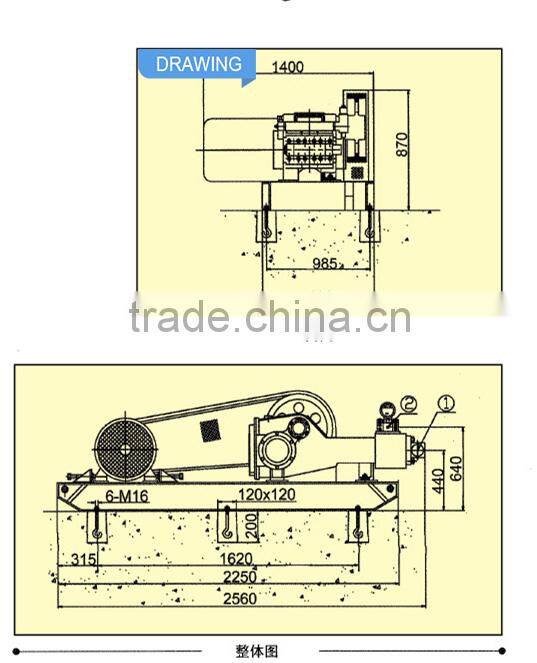

Water Inlet Dimensions 3or2½″
Water Outlet Connection Dimensions M52×2
Input Speed |
1480r/min | Stroke Length |
110mm | |||||
Theoretical Capacity |
Motor Power(KW) |
Plunger Diameter (MM) |
||||||
| 37 | 45 | 55 | 75 | 90 | 110 | |||
| M³/h | L/min | Rated Discharge Pressure |
||||||
| 9.80 | 164 | 11 | 14 | 17 | 25 | 30 | 37 | 40 |
| 12.4 | 207 | 8.7 | 11 | 14 | 20 | 24 | 29 | 45 |
| 15.4 | 257 | 7.0 | 9 | 11 | 16 | 19 | 23 | 50 |
| 18.6 | 311 | 5.8 | 7.5 | 9 | 13 | 16 | 19 | 55 |
| 22.0 | 370 | 4.0 | 6 | 7.5 | 11 | 13 | 16 | 60 |
Note: above parameters are theoretical data when the medium proportion is 1.0.
One-year warranty
Repairing and maintaining service is provided timely once received the inquiry, taking the customer satisfaction as first priority.
Service hotline & hotmail is provided for customers real time consulting.
Quality-related problem will be dealt with by professional staff at the first time getting the feedback from customers.
We provide on-site technical service at home and abroad.
