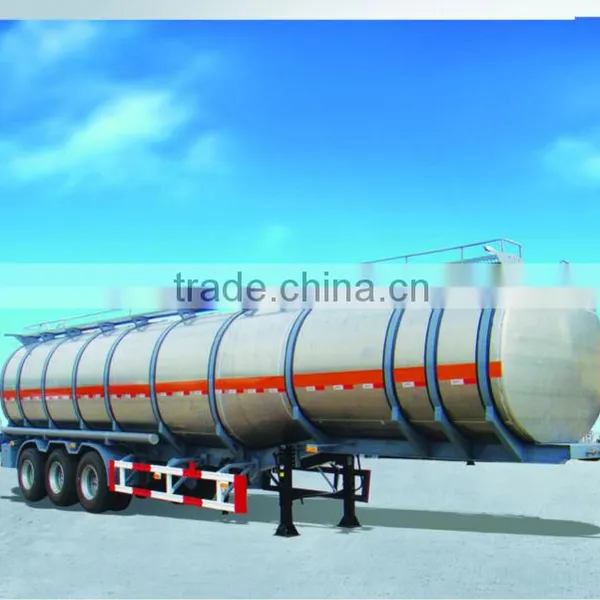

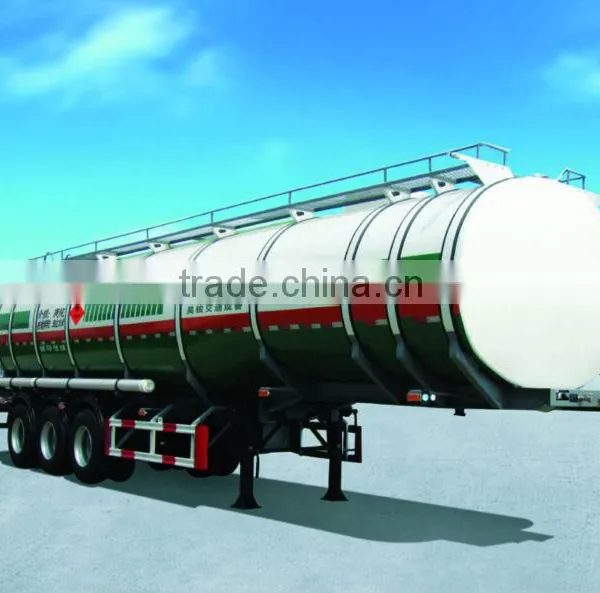

Time Go Oil Tanker Truck Semi Trailer With Best Price
Specifications
Use: Other Trailers OEM No.: 370832200009857 Max Payload: 60T Size: 13000*2500*3950(LxWxH) Place of Origin: Shandong, China (MaiSpecifications
1. passed CCC, ISO agree.
2.lower price
3. nice workermanship, superior performance, compact structure.
4. we are manufacture
Main Dimensions | |
Tank Body | |
Shape |
Optional(One silo with V type or Two, Three silos design |
Dimension |
13000mm*2500mm*3950mm(Exact design depend on the final design) |
Tare weight |
About 7500KG-15000KG |
Total Volume(m3) |
30-68m3 |
Tank Body Material |
5mm or 6mm/Q235 carbon steel |
End Plate |
5mm or 6mm/Q235 carbon steel |
Diesel Engine |
WEICHAI4100/4102 or other brand |
Air Compressor |
Stanard10 CBM |
Manhole Cover |
Carbon steel ,500mm |
Discharging Valve |
Diameter is 3 or 4 inch |
Discharging Pipe |
Discharging Pipe |
Cat Walk |
With(Common model or special design) |
Chassis | |
Main Beams |
Welding Design,Q345 carbon steel |
Axle |
2/3axles,12T/13T/16T,BPW/FUWA/HAOJUN brand |
Landing Gear |
JostD200T or China brand 28T |
King pin |
Jost2.00 or 3.5 inch bolt-in king pin |
Suspension |
Mechanical suspension/Germany or America type/Air Suspension |
Leaf Spring |
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
Pneumatic Braking System |
WABCO RE 6 relay valve ;T30/30+30 Spring brake chamber;45L air tanks |
Rim |
9.00-22.5/8.00-20/8.5-20 China brand |
Tire |
12R22.5/315 80R22.5/11.00R20/12.00R20,Brand can be chosen |
ABS |
Optional |
Painting |
Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint |
Accessories |
One standard tool box |
Shipping Terms |
By bulk cargo,RORO |
Welcome to visit our factory at any time!We look forward to having a successful transaction with you sincerely!
Any problems, please contact me in time! Many thanks.
