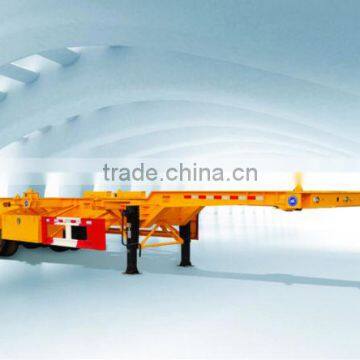

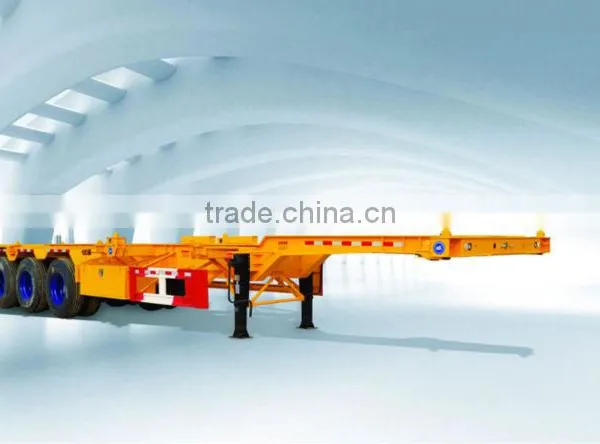

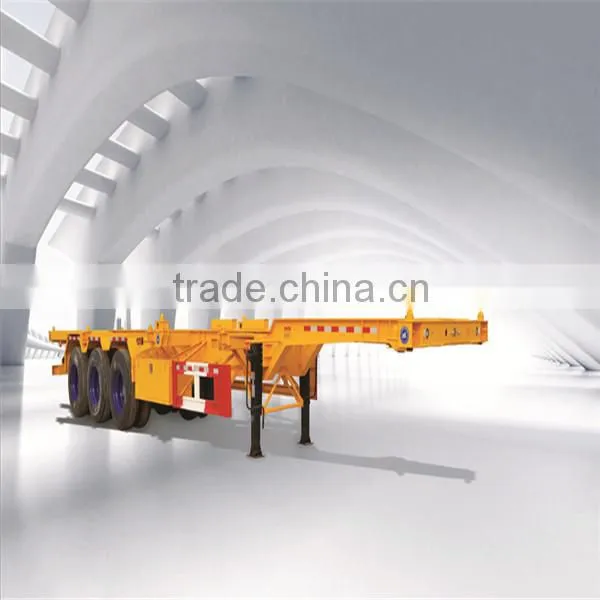

Time Go skeleton container truck trailer

Specifications

Use: Truck Trailer Type: Semi-Trailer Material: Steel Certification: CE Size: 13000*2800*1750 OEM No.: 370832200009857 Max Paylo

1. CCC, ISO agree. 2.best price. 3. compact structure, execllent performance.4 we are manufacturer

Characteristic:

1. cheap price,  rich experience, and best service.

2. well design, reasonable structure, superior performance and beautiful appearance.

3.the diversity of the product model can  be choosen freely.

4. we are manufacturer, it is factory sales. we have complete prodction line from design to delivery.

5.we support after-sale.

Dimensions

Tare weight	6T
Pay load	45T
Overall length	13000mm
Overall width	2800mm
axle number	2 or 3
axle specification	FUWA/ BPW/HAOJUN brand
suspension	common mechanical suspension or air suspension
wheel rim	8.5-20,9.0-22.5,9.0-22.5steel wheel rim, optional
tyre	11.00R20, 12.00R20,11.0022.5,12.00R22.5 tire, optional
spare tire	one set of spare tire including a carrier
king pin	JOST 2.0" or3.5" bolt-in king pin
braking system	WABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks
twist locks	12 pieces of ISO twist lock for 1x20ft, 2x20ft,1x40ft container
spring leaf	10 pieces
chassis	heavy duty and extra durability designed beam, material is Q345 steel,welded by automatic submerged-arc processes.  Upper plate is 12mm, middle plate is 6mm, down plate is 14mm
support legs	JOST brand D200T or china brand 28Tons (double speed)
tool box	1 standard tool box
painting	complete chassis sanding blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
brake chamber	2 double and 2 single chambers or 4 double and 2 single chambers
