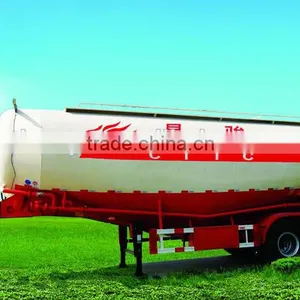

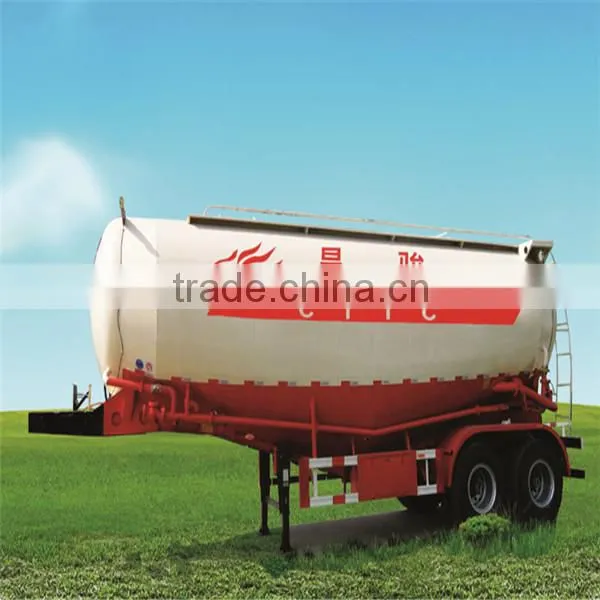

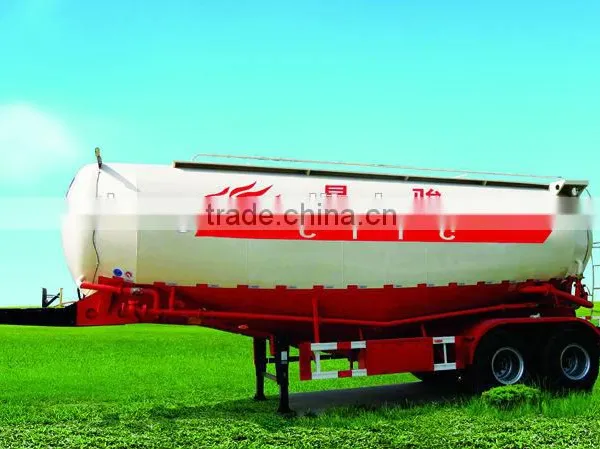

Time Go 3 Axles Bulk Powder Bulk Tanker Series

Name: Time Go 3 Axles Bulk Powder Bulk Tanker Series
Brand: Time Go
SKU: 112252795
Availability: InStock

US$ 15,000 - 50,000 MOQ: 1 Unit

Key Specifications

Max Payload:

120t

Size:

37-110

Place of Origin:

Shandong, China

Weihai King-Life Sports Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Max Payload 120t

Size 37-110

Place of Origin Shandong, China

Brand Name Time Go

Model Number Semi-Trailer

Specifications

Use: Truck Trailer
Type: Semi-Trailer
Material: Steel
Certification: CE
Size: 37-110 Max Payload: 120

1.different capacity
2.excellent performance
3.with our own factory
4.ISO9001 ,CCC certificate
5.low price

cement bulk tanker specifications for your reference as follows:

Main Dimensions
Tank Body
Shape	Optional(One Silo with V type or Two, Three Silos Design)
Dimension	12000×2490×3990mm(Adjustable as your requirements)
Tare weight	About 7.5-15T
Total Volume	30m³-68m³
Tanker Body Material	5mm or 6mm Q235 carbon steel
End Plate	5mm or 6mm Q235 carbon steel
Diesel Engine	WEICHAI 4100/4102 or other brands
Compressor	BOHAI 10m³/12m³or other brands
Manhole Cover	Cabon steel. Diameter: 500mm
Discharging Valve	Diameter is 3 or 4 inches
Discharging Pipe	3 or 4 inches rubber hose, 1pcs, 6m/each
Cat Walk	With(Common model or special design)
Chassis
Main Beams	Weldding Design, Q345 carbon steel
Axle	2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand
Landing Gear	JOST(D200T)or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical Suspension(Germany or America type) or Air Suspension
Leaf Spring	90mm(W)×13mm(Thickness)×10(Layer) or 100mm×12mm×12
Pneumatic Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two 45L air tanks
Rim	9.00-22.5/8.00-20/8.5-20
Tire	12.00R22.5, 315/80R22.5, 11.00R20, 12.00R20
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo or RORO
