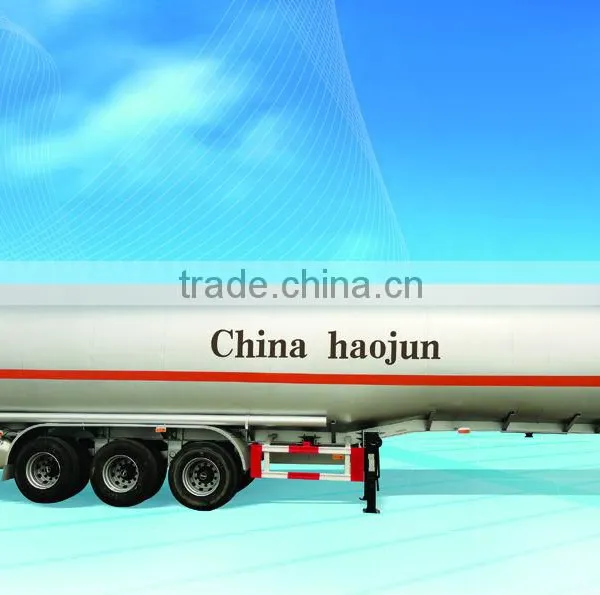

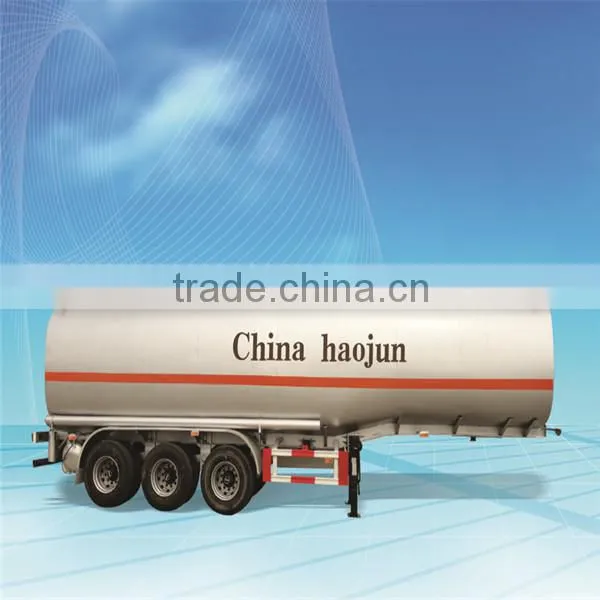

Time Go 3 Axles Oil tanker for sales with best price

Main Dimensions

Tank Body

Shape

Optional(One silo with V type or Two, Three silos design

Dimension

13000mm*2500mm*3950mm(Exact design depend on the final design)

Tare weight

About 7500KG-15000KG

Total Volume(m3)

30-68m3

Tank Body Material

5mm or 6mm/Q235 carbon steel

End Plate

5mm or 6mm/Q235 carbon steel

Diesel Engine

WEICHAI4100/4102 or other brand

Air Compressor

Stanard10 CBM

Manhole Cover

Carbon steel ,500mm

Discharging Valve

Diameter is 3 or 4 inch

Discharging Pipe

Discharging Pipe

Cat Walk

With(Common model or special design)

Chassis

Main Beams

Welding Design,Q345 carbon steel

Axle

2/3axles,12T/13T/16T,BPW/FUWA/HAOJUN brand

Landing Gear

JostD200T or China brand 28T

King pin

Jost2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/Germany or America type/Air Suspension

Leaf Spring

90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12

Pneumatic Braking System

WABCO RE 6 relay valve ;T30/30+30 Spring brake chamber;45L air tanks

Rim

9.00-22.5/8.00-20/8.5-20 China brand

Tire

12R22.5/315 80R22.5/11.00R20/12.00R20,Brand can be chosen

ABS

Optional

Painting

Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint

Accessories

One standard tool box

Shipping Terms

By bulk cargo,RORO
