Time Go 3 Axles Oil Tanker Truck

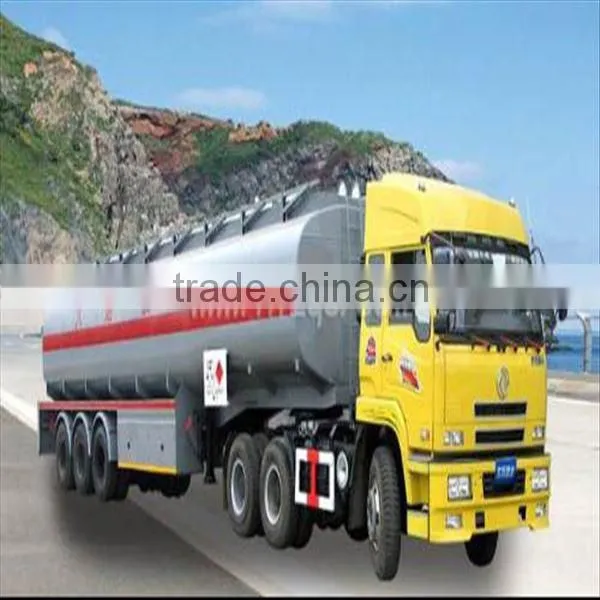

Time Go 3 Axles Oil Tanker Truck photo-1
Time Go 3 Axles Oil Tanker Truck photo-2
US$ 15,000 - 50,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Max Payload:
120t
Size:
37-110
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Max Payload 120t
Size 37-110
Place of Origin Shandong, China
Brand Name Time Go
Model Number Semi-Trailer

Specifications

Use: Truck Trailer Type: Semi-Trailer Material: Steel Certification: CE Size: 37-110 Max Payload: 120 Place of Origin: China (Ma

Main Dimensions

Tank Body

Shape

Optional(One Silo with V type or Two, Three Silos Design)

Dimension

12000×2490×3990mm(Adjustable as your requirements)

Tare weight

About 7.5-15T

Total Volume

30m³-68m³

Tanker Body Material

5mm or 6mm Q235 carbon steel

End Plate

5mm or 6mm Q235 carbon steel

Diesel Engine

WEICHAI 4100/4102 or other brands

Compressor

BOHAI 10m³/12m³or other brands

Manhole Cover

Cabon steel. Diameter: 500mm

Discharging Valve

Diameter is 3 or 4 inches

Discharging Pipe

3 or 4 inches rubber hose, 1pcs, 6m/each

Cat Walk

With(Common model or special design)

Chassis

Main Beams

Weldding Design, Q345 carbon steel

Axle

2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand

Landing Gear

JOST(D200T)or CHINA BRAND 28T

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical Suspension(Germany or America type) or Air Suspension

Leaf Spring

90mm(W)×13mm(Thickness)×10(Layer) or 100mm×12mm×12

Pneumatic Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two 45L air tanks

Rim

9.00-22.5/8.00-20/8.5-20

Tire

12.00R22.5, 315/80R22.5, 11.00R20, 12.00R20

ABS

Optional

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints

Accessories

One standard tool box

Shipping Terms

By Bulk Cargo or RORO
