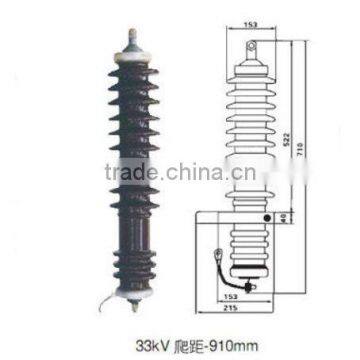

Porcelain Lightning Arrester 33kV

Porcelain Lightning Arrester 33kV thumbnail-1
Porcelain Lightning Arrester 33kV photo-1
Negotiable MOQ: 3 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SR
Model Number:
Y5C-33,Y10C-33
Contact Supplier Request Quote Chat Now
Wenzhou Shuguang Fuse Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SR
Model Number Y5C-33,Y10C-33

Specifications

uitsparing zekering certificaat: ISO 9001: 2008; KEMA



Key Specifications/Special Features:


Type:Y5C-33,Y10C-33
Rated voltage r.m.s: 33KV
Continuous operating voltage r.m.s: 27.5kV
1/5u s steep current residual voltage(KV): 107.9(5kA), 113.9(10kA)
8/20u s lighting impulse residual voltage(kV): 96.3(5kA), 101.4(10kA)
30/60u s switching impulse residual voltage(kV): 73.2(5kA), 76.1(10kA)
2ms rectangular current(A): 200(5kA),  400(10kA)
4/10u s high current impulse(kA): 65(5kA), 100(10kA)
Insulation housing withstand voltage(kV)
Lightning impulse:170
Power frequency:70
Creepage distance(mm): 910
