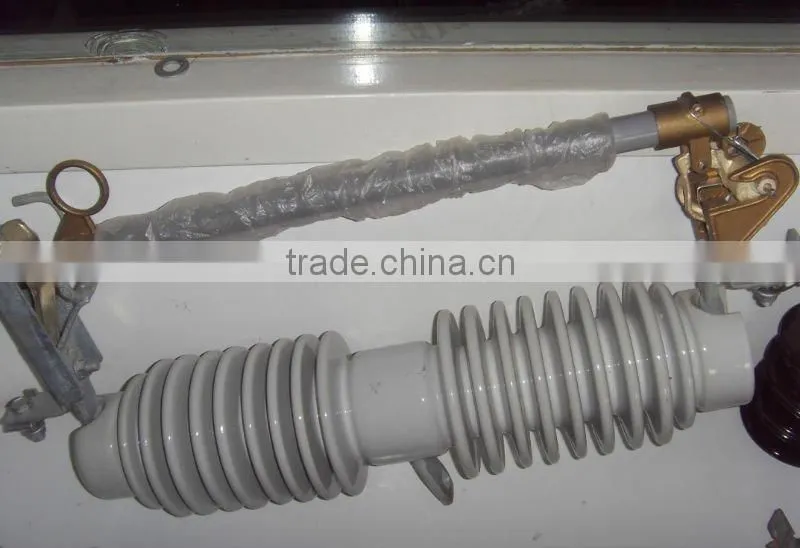

high voltage drop out cut out fuse 35kV

Specifications

High Voltage Fuse Certification:ISO9001:2008
1.Material:porcelain
2.Rated voltage:35kV
3.Leakage distance:750mm

Description

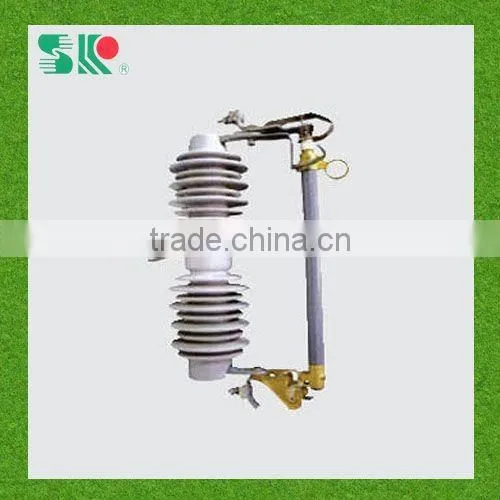

1. Type: fuse cutout, drop out fuse cutout  SRF-8

     Drop out fuse cutout is of outdoor used high voltage protective device. To be connect with incoming feeder of distribution transformer or distribution lines. SRF series mainly protect transformer or lines from short circuit and over load, and on/off loading current.



2. Specification:



Type	Rated voltage(kV)	Rated current(kA)	Breaking current(kA)	Impulse voltage(BIL)	Power-frequency withstand voltage(kV)	Leakage distance(mm)	Weight(kg)	Dimension(cm)
SRF-8	35	100	6300	170	70	750	17	72*20*17
SRF-8	35	200	8000	170	70	750	18	72*20*17



3. Welcome to contact us to more details.  Some details could be ordered according to the requirement of customers.
