Help CenterDrop Out Fuse
US$ 25.27 - 27.3
MOQ: 3 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SR
Model Number:
SRF-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Voltage Drop Out Fuse Cut OutUS$ 26 - 31MOQ: 3 Pieces -
High Voltage Expulsion Drop Out Fuse Cut OutUS$ 24.82 - 27MOQ: 3 Pieces
-
High Voltage Drop-out Fuse Cutout/SR(12KV-15KV)US$ 1 - 8MOQ: 3 Pieces
-
Drop -out Type Cutout Fuse 33kVUS$ 36 - 38.7MOQ: 3 Pieces
-
Cut Out FuseNegotiableMOQ: 3 Pieces
Place of Origin
Zhejiang, China
Brand Name
SR
Model Number
SRF-1
Usage
High Voltage
Breaking Capacity
High
Safety Standards
IEC
Specifications
High Voltage Fuse Certification:ISO90011.materil:porcelain
2.rated voltage:12-15kV
3.creepage distance:230mm
Description

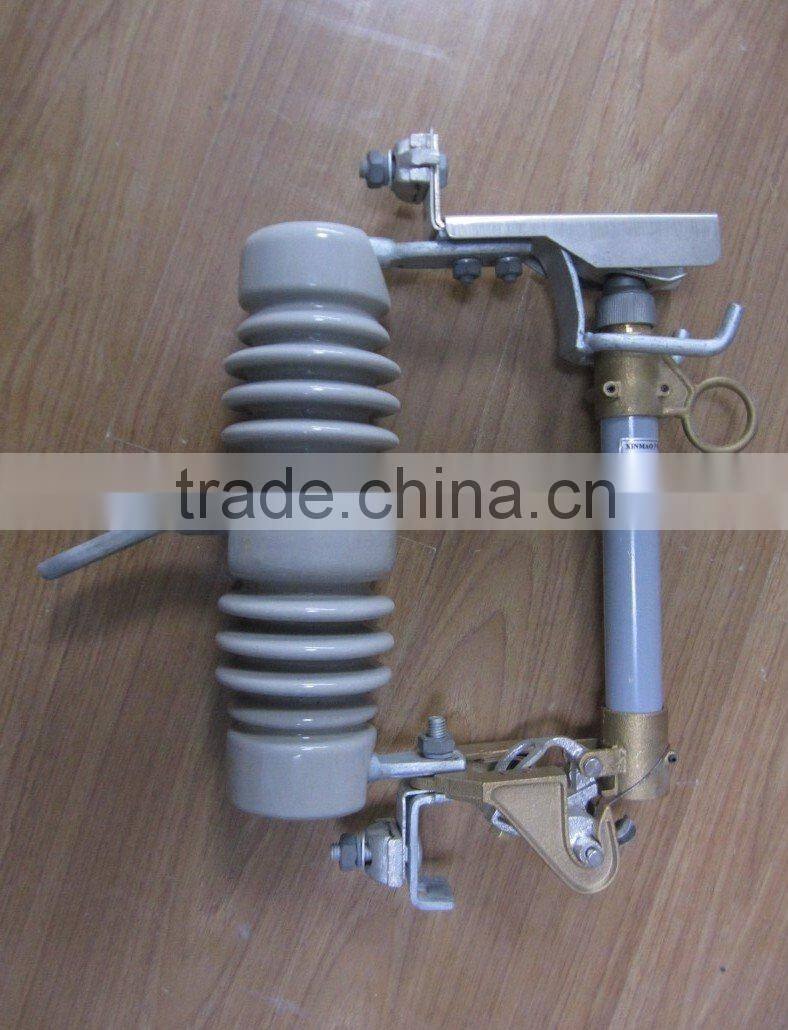

1. Type: fuse cutout, drop out fuse cutout SRF-1
Drop out fuse cutout is of outdoor used high voltage protective device. To be connect with incoming feeder of distribution transformer or distribution lines. SRF series mainly protect transformer or lines from short circuit and over load, and on/off loading current.
2. Specification:
Type:SRF-1
Rated voltage(kV):12-15
Rated current(A):100,200
Breaking current(A):6300,10000
Impuse voltage(kV):110
Power-frequency withstand voltage(kv):42
Creepage distance(mm):230
Material:Ceramic
Weight(kg):7.5(100A),8(200A)
Dimensions(CM):41*31*12.5
3. Welcome to contact us to more details. Some details could be ordered according to the requirement of customers.
