Home > Electrical & Electronics > Breaker & Protector > Fuse > High Voltage Drop-out Fuse Cutout/SR(12KV-15KV)

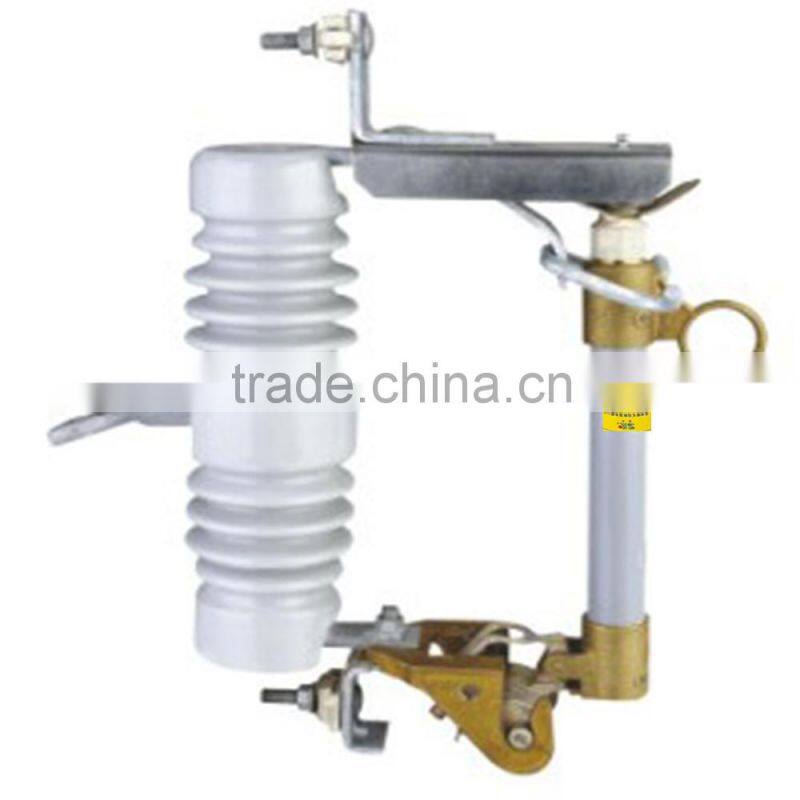

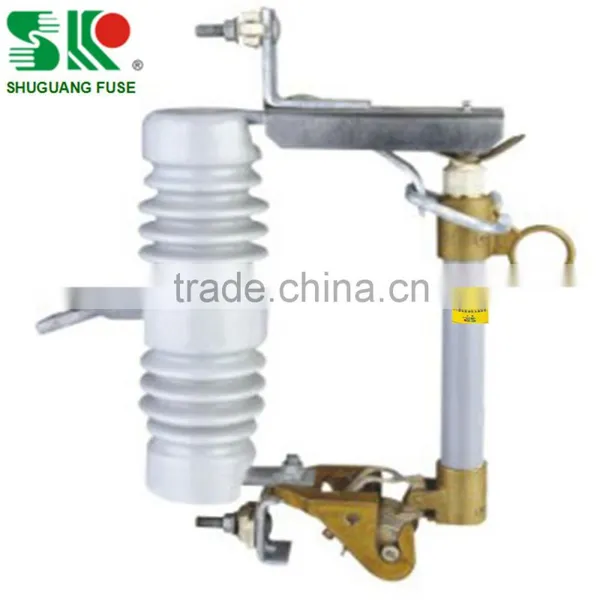

High Voltage Drop-out Fuse Cutout/SR(12KV-15KV)
US$ 1 - 8
MOQ: 3 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SR(Shuguang fuse)
Model Number:
SR(12kv-15kv)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
SR(Shuguang fuse)
Model Number
SR(12kv-15kv)
Usage
High Voltage
Breaking Capacity
High
Safety Standards
IEC
SR(12kv-15kv) data as following:
| Type |
Rated voltage (kv) |
Rated current (A) |
Breaking currrent (A) |
Impulse Voltage (BIL) |
Power- frequency withstand Voltage (KV) |
Leakage Distance (mm) |
Weight (kg) |
Dimensions (cm) |
||
| SR(12kv-15kv) | 12 | 100 | 6300 | 110 | 40 | 250 | 7.3 | 38.5×34×11 | ||
| SR(12kv-15kv) | 12 | 200 | 8000 | 110 | 40 | 250 | 7.3 | |||
g
|
General:

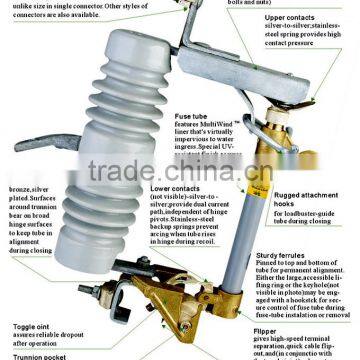

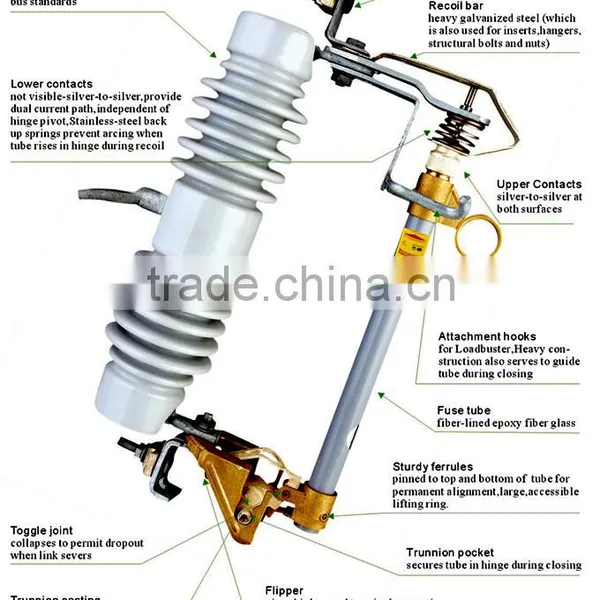

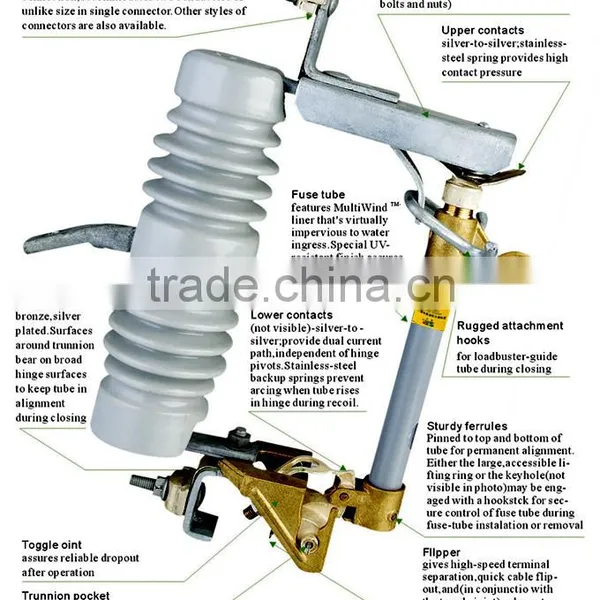

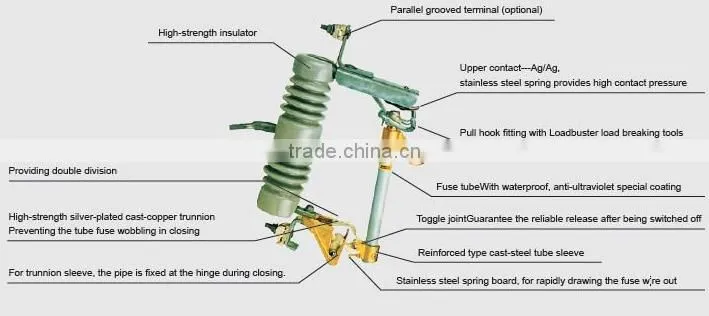

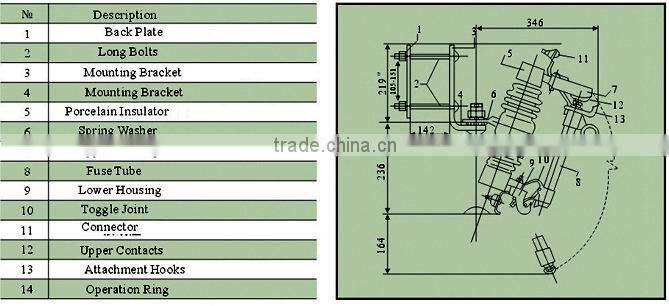

Drop-out fuse and pull the load drop-out fuse is outdoor high-voltage protection of electrical. It is installed in high-voltage side of the distribution transformer or the Support Link of the distribution line as Transformers and lines short circuit, overload protection, and open, co-load current. Drop-out fuse is made by the insulating bracket and fuse tubes, static contact is installed at both ends of the insulation bracket, Moving contact installed on both ends of fuse tube, Fuse tube is composed by inner arc tube and outer phenolic paper tube or epoxy glass cloth tube. Pull load drop-out fuse can enhance flexibility auxiliary contacts and arc chute for open, co-load current.
When drop-out fuse in the normal operation, the fuse tube with fuse tension to form the closed position. When the system fails, the fault current blown fuse quickly, And form of arc, arc tube by the electric arc burning, Decompose large amounts of gas, formed a high pressure in the tube, and formed vertical wind along the pipeline, The arc was quickly stretch and elongated. After fuse blows, the moving contact lose tension and turned out, locking mechanism, release fuse tube, fuse tube drop, formed breaking Position. When pull the load, use insulating rod to pull the moving contact. At this point, the moving and the static contact is still contact. Continued pull the contact with the insulating rod, the auxiliary contacts are separated. the arc appear between the auxiliary contacts, and was stretch in the hood slit, the arc cover has gas, when the current is 0, the arc goes out.
Use and Standards:
This product is used in 10 ~ 35KV distribution lines branching lines and distribution transformers primary side, For overload and short circuit protection Separation and Combination the rated load current.
The product model by JB/T8321-1996(Method of type AC high-voltage fuses) prepared. Product parameters made by GB15166.3-1994 (high voltage fuses Expulsion fuses)standards. The standards are not clearly defined the important parameters and configuration, According to JB/DQ2139-1986(10 ~ 35KV outdoor high voltage drop fuse interim technology)requires correction.
Conditions of Use:
Ambient temperature: not higher than +40 C, not less than -30C
Altitude: not exceed 1000m (1000m above can be corrected GB311.1-1997)
Power frequency: 50 ± 2Hz
Earthquake intensity: 7 degrees below
Maximum wind speed: 35m/s
|

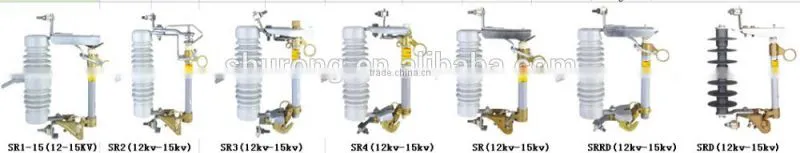

Most of type drop out products data as following:

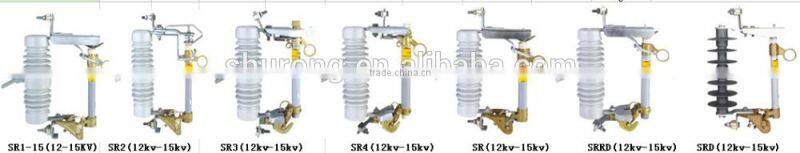

(1)12-15KV drop-out fuse cutout:(7.3kg)
| Type |
Rated voltage (kv) |
Rated current (A) |
Breaking currrent (A) |
Impulse Voltage (BIL) |
Power- frequency withstand Voltage (KV) |
Leakage Distance (mm) |
Weight (kg) |
Dimensions (cm) |
||
| SR(12kv-15kv) | 12 | 100 | 6300 | 110 | 40 | 250 | 7.3 | 38.5×34×11 | ||
| SR(12kv-15kv) | 12 | 200 | 8000 | 110 | 40 | 250 | 7.3 | |||
| SRR(12kv-15kv) | 12 | 100 | 6300 | 110 | 40 | 250 | 7.3 | 38.5×34×11 | ||
| SRR(12kv-15kv) | 12 | 200 | 8000 | 110 | 40 | 250 | 7.3 | |||
| SR1-15(12-15KV) | 12 | 100 | 6300 | 110 | 40 | 250 | 7.3 | 38.5×34×11 | ||
| SR1-15(12-15KV) | 12 | 200 | 12500 | 110 | 40 | 250 | 7.3 | |||
| SR2(12kv-15kv) | 12 | 100 | 6300 | 110 | 40 | 250 | 7.3 | 38.5×34×11 | ||
| SR2(12kv-15kv) | 12 | 200 | 8000 | 110 | 40 | 250 | 7.3 | |||
| SR3(12kv-15kv) | 12 | 100 | 6300 | 110 | 40 | 250 | 7.3 | 38.5×34×11 | ||
| SR3(12kv-15kv) | 12 | 200 | 8000 | 110 | 40 | 250 | 7.3 | |||
| SR4(12kv-15kv) | 12 | 100 | 6300 | 110 | 40 | 250 | 7.3 | 38.5×34×11 | ||
| SR4(12kv-15kv) | 12 | 200 | 8000 | 110 | 40 | 250 | 7.3 | |||
| SRRD(12kv-15kv) | 12 | 100 | 6300 | 110 | 40 | 250 | 7.3 | 38.5×34×11 | ||
| SRRD(12kv-15kv) | 12 | 200 | 8000 | 110 | 40 | 250 | 7.3 | |||
| SRD(12kv-15kv) | 12 | 100 | 6300 | 110 | 40 | 250 | 7.3 | 38.5×34×11 | ||
| SRD(12kv-15kv) | 12 | 200 | 8000 | 110 | 40 | 250 | 7.3 | |||

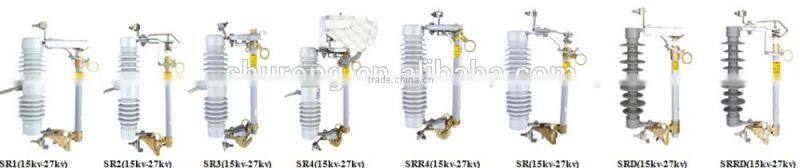

(2)15KV-27KV drop-out fuse:(8.5kg)
| Type |
Rated voltage (kv) |
Rated current (A) |
Breaking currrent (A) |
Impulse Voltage (BIL) |
Power- frequency withstand Voltage (KV) |
Leakage Distance (mm) |
Weight (kg) |
Dimensions (cm) |
||
| SR1(15kv-27kv) | 15 | 100 | 8000 | 125 | 45 | 320 | 8.5 | 40×34×11 | ||
| SR1(15kv-27kv) | 15 | 200 | 10000 | 125 | 45 | 320 | 8.5 | |||
| SR2(15kv-27kv) | 15 | 100 | 8000 | 125 | 45 | 320 | 8.5 | 40×34×11 | ||
| SR2(15kv-27kv) | 15 | 200 | 10000 | 125 | 45 | 320 | 8.5 | |||
| SR3(15kv-27kv | 15 | 100 | 8000 | 125 | 45 | 320 | 8.5 | 40×34×11 | ||
| SR3(15kv-27kv | 15 | 200 | 10000 | 125 | 45 | 320 | 8.5 | |||
| SR4(15kv-27kv) | 15 | 100 | 8000 | 125 | 45 | 320 | 8.5 | 40×34×11 | ||
| SR4(15kv-27kv) | 15 | 200 | 10000 | 125 | 45 | 320 | 8.5 | |||
| SRR4(15kv-27kv) | 15 | 100 | 8000 | 125 | 45 | 320 | 8.5 | 40×34×11 | ||
| SRR4(15kv-27kv) | 15 | 200 | 10000 | 125 | 45 | 320 | 8.5 | |||
| SR(15kv-27kv) | 15 | 100 | 8000 | 125 | 45 | 320 | 8.5 | 40×34×11 | ||
| SR(15kv-27kv) | 15 | 200 | 10000 | 125 | 45 | 320 | 8.5 | |||
| SRRD(15kv-27kv) | 15 | 100 | 8000 | 125 | 45 | 320 | 8.5 | 40×34×11 | ||
| SRRD(15kv-27kv) | 15 | 200 | 10000 | 125 | 45 | 320 | 8.5 | |||

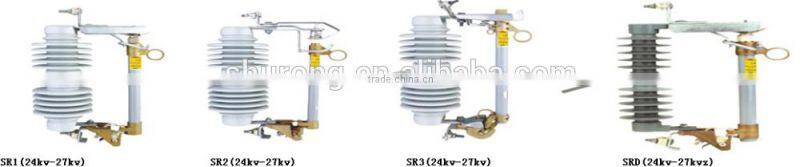

(3)24-27KV drop-out fuse:(12kg)
| Type |
Rated voltage (kv) |
Rated current (A) | Breaking currrent (A) |
Impulse Voltage (BIL) |
Power- frequency withstand Voltage (KV) |
Leakage Distance (mm) |
Weight (kg) |
Dimensions (cm) |
||
| SR1(24kv-27kv) | 24 | 100 | 8000 | 150 | 65 | 530 | 12 | 48×34×15 | ||
| SR1(24kv-27kv) | 24 | 200 | 10000 | 150 | 65 | 530 | 12 | |||
| SR2(24kv-27kv) | 24 | 100 | 8000 | 150 | 65 | 530 | 12 | 48×34×15 | ||
| SR2(24kv-27kv) | 24 | 200 | 10000 | 150 | 65 | 530 | 12 | |||
| SR3(24kv-27kv) | 24 | 100 | 8000 | 150 | 65 | 530 | 12 | 48×34×15 | ||
| SR3(24kv-27kv) | 24 | 200 | 10000 | 150 | 65 | 530 | 12 | |||
| SRD(24kv-27kvz) | 24 | 100 | 8000 | 150 | 65 | 530 | 12 | 48×34×15 | ||
| SRD(24kv-27kvz) | 24 | 200 | 12000 | 150 | 65 | 530 | 12 | |||

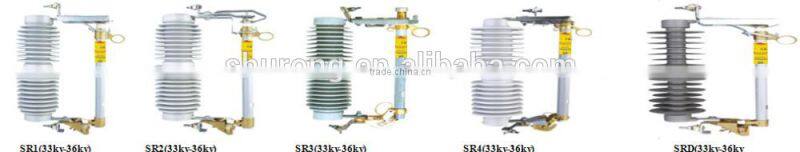

(4)33-36KV drop-out fuse:(15kg)
| Type |
Rated voltage (kv) |
Rated current (A) |
Breaking currrent (A) |
Impulse Voltage (BIL) |
Power- frequency withstand Voltage (KV) |
Leakage Distance (mm) |
Weight (kg) |
Dimensions (cm) |
||
| SR1(33kv-36kv) | 33 | 100 | 10000 | 170 | 70 | 720 | 15 | 68×37×15 | ||
| SR1(33kv-36kv) | 33 | 200 | 12500 | 170 | 70 | 720 | 15 | |||
| SR2(24kv-27kv) | 33 | 100 | 10000 | 170 | 70 | 720 | 15 | 68×37×15 | ||
| SR2(24kv-27kv) | 33 | 200 | 12500 | 170 | 70 | 720 | 15 | |||
| SR3(33kv-36kv) | 33 | 100 | 10000 | 170 | 70 | 720 | 15 | 68×37×15 | ||
| SR3(33kv-36kv) | 33 | 200 | 12500 | 170 | 70 | 720 | 15 | |||
| SR4(33kv-36kv) | 33 | 100 | 10000 | 170 | 70 | 720 | 15 | 68×37×15 | ||
| SR4(33kv-36kv) | 33 | 200 | 12500 | 170 | 70 | 720 | 15 | |||
| SRD(33kv-36kv) | 33 | 100 | 10000 | 170 | 70 | 720 | 15 | 68×37×15 | ||
| SRD(33kv-36kv) | 33 | 200 | 12500 | 170 | 70 | 720 | 15 | |||

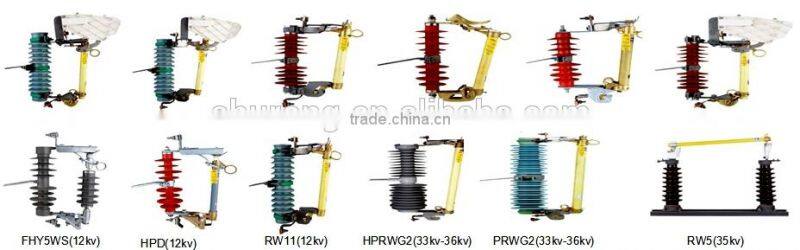

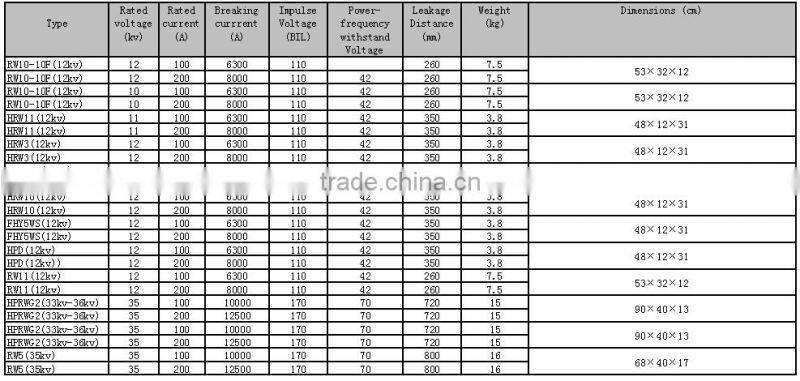

(5)other fuse:
