Specifications
Drop out Fuse cut out1.materil:porcelain
2.rated voltage:11-15kV
3.creepage distance:220~250mm
4.Certification:ISO9001
Description

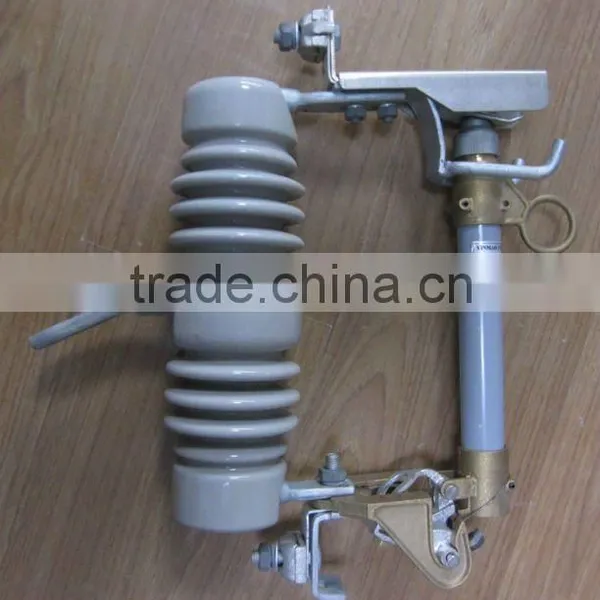

1. Type: fuse cutout, drop out fuse cutout SRF-1
Drop out fuse cutout is of outdoor used high voltage protective device. To be connect with incoming feeder of distribution transformer or distribution lines. SRF series mainly protect transformer or lines from short circuit and over load, and on/off loading current.
2. Specification:
Type:SRF-1
Rated voltage(kV):12-15
Rated current(A):100,200
Breaking current(A):6300,10000
Impuse voltage(kV):110
Power-frequency withstand voltage(kv):42
Creepage distance(mm):220, 230, 250
Material:Ceramic
Weight(kg):7.5(100A),8(200A)
Dimensions(CM):41*31*12.5
3. Welcome to contact us to more details. Some details could be ordered according to the requirement of customers.
4. Appearance and installation dimensions
