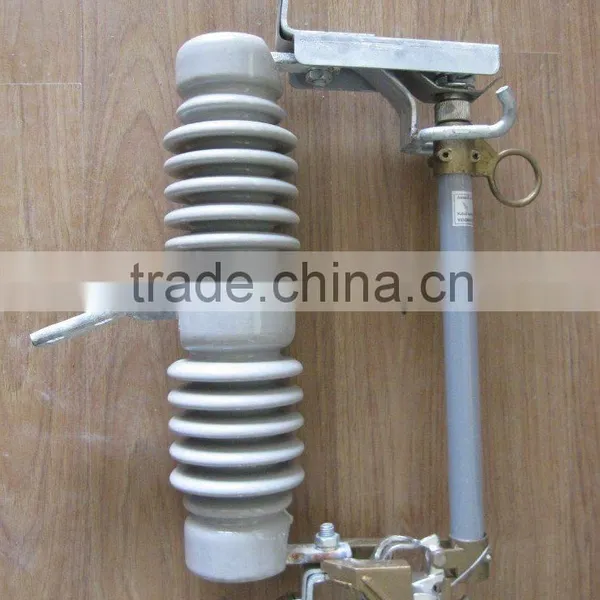

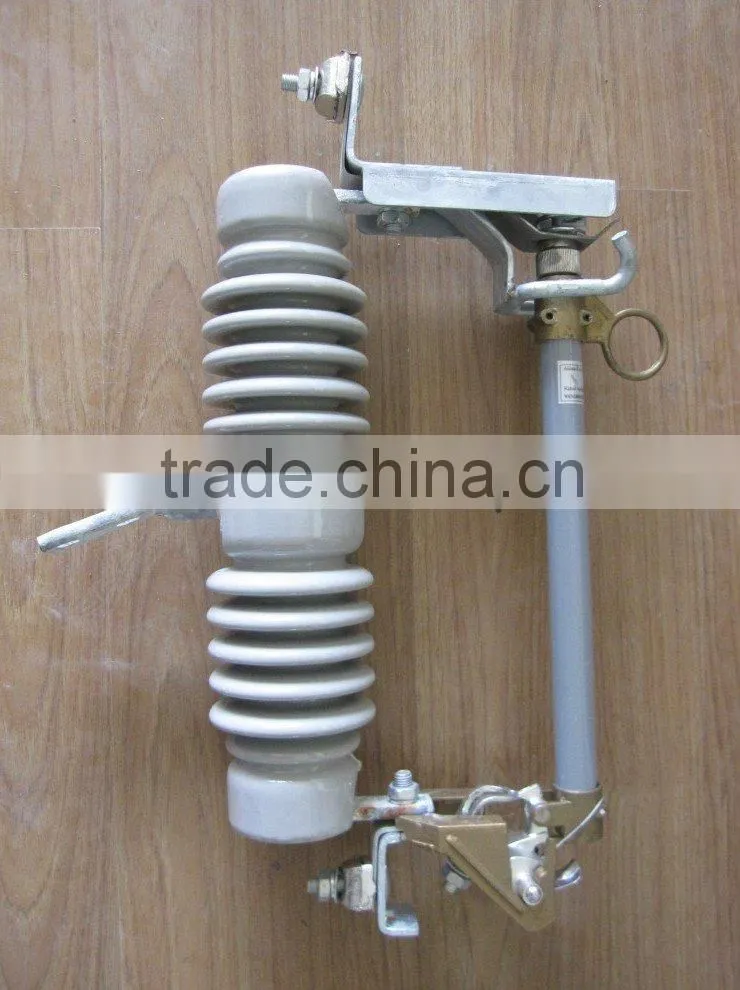

Help CenterHigh Voltage Drop Out Fuses 15kV
US$ 21.65 - 23.75
MOQ: 3 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SR
Model Number:
SRF-5
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
33kV Drop Out Fuse Cut OutUS$ 36 - 38.7MOQ: 3 Pieces -
33kV Drop Out FusesUS$ 32.56 - 34.9MOQ: 3 Pieces
-
12kV Porcelain Drop Out FuseUS$ 25.27 - 27.3MOQ: 3 Pieces
-
Ceramic High Voltage Drop Out Fuse Cutout 15kVUS$ 21.65 - 23.75MOQ: 3 Pieces
-
High Voltage Fuse Cutout 15-27kVUS$ 21.1 - 23.2MOQ: 3 Pieces
Place of Origin
Zhejiang, China
Brand Name
SR
Model Number
SRF-5
Usage
High Voltage
Breaking Capacity
High
Safety Standards
IEC
Specifications
High Voltage Drop out Fuse1.Material:ceramic
2.Rated voltage:15kV
3.Leakage distance:330mm
4.Certification:ISO9001:2008
Description
1. Type: fuse cutout, drop out fuse cutout SRF-5
Drop out fuse cutout is of outdoor used high voltage protective device. To be connect with incoming feeder of distribution transformer or distribution lines. SRF series mainly protect transformer or lines from short circuit and over load, and on/off loading current.
2. Specification:
Type |
Rated voltage(kV) |
Rated current(kA) |
Breaking current(kA) |
Impulse voltage(BIL) |
Power-frequency withstand voltage(kV) |
Leakage distance(mm) |
Weight(kg) |
Dimension(cm) |
SRF-5 |
15-27 |
100 |
6300 |
125 |
45 |
330 |
8.8 |
51*31*12.5 |
SRF-5 |
15-27 |
200 |
12500 |
125 |
45 |
330 |
9.3 |
51*31*12.5 |
3. Welcome to contact us to more details. Some details could be ordered according to the requirement of customers.
