Specifications

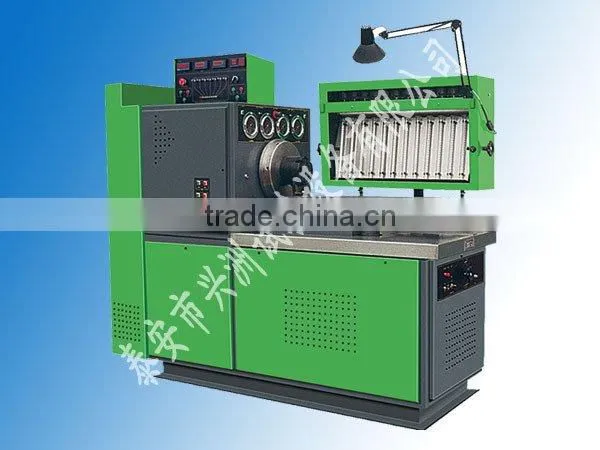

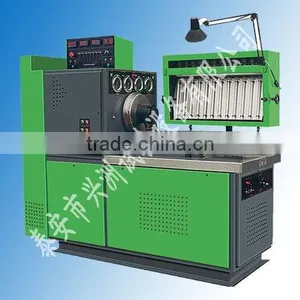

TXZ-B fuel injection pump test bencheasy to operate
FUNCTIONS
1 Measurement of each cylinder's delivery at any speed.
2 Checking of each cylinder's injection time in static state.
3 Checking of the sealing performance of injection pump body.
4 Checking of the advance device in dynamics.
5 Checking of the pneumatic governor.
6 Checking of the mechanical governor.
7 Checking of the vacuum capacity of governor.
8 Measurement of the internal pressure of distributor pump body.
9 Measurement of the reflux delivery of distributor pump.
10 Testing of the 10 electro-magnetic valve of distributor pump.
11 Checking of the transfer pump.
12 Checking of the LDA.
CHARACTERISTIC
1 Typical product.
2 Inverter driver.
3 Controlling the temperature of diesel oil automatically.
4 Adjusting speed by two ways, hand-driven and preset speed.
5 High output torque, low fall of rotation speed. Adjusting speed quickly.
6 Speed, strokes, advance angle and oil temperature are displayed by digital instruments.
7 With protect function for over and low voltage and short phase.
8 Save electric power.
9 It can test both distributor ( VE ) and in-line pumps.
PARAMETERS
Output power:7.5/11/15/18.5/22/30KW
Electric supply:3phase 380V/50HZ (or on request)
Interaxe height:125mm
Volume of fuel tank:60L Cylinders:12cyl.
Feeding fuel pressure low:0-0.4MPA high:0-4MPA
Range of speed:(+/-)0-4000RPM
Control fuel temperature:40+/-2
DC. supply:12/24V
Output air:-0.05-0.3MPA
