Specifications
Product Name:GPS916 Fuel injection pump test benchBrand :xingzhou

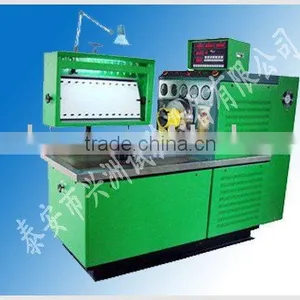

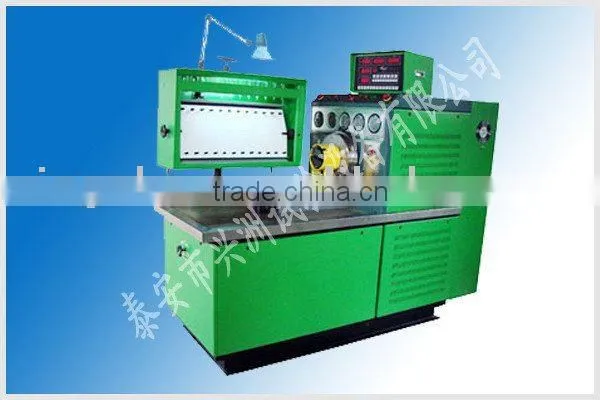

GPS916 fuel injection pump test bench
FUNCTIONS
1 Testing 12-cylinder fuel injection pump.
2 Measuring each cylinder delivery at any speed.
3 Checking each cylinder injection timing with static.
4 Checking the sealing injection pump body.
5 Checking the mechanical governor.
6 Checking the pneumatic governor.
7 Checking the vacuum capacity of governor.
8 Checking the pressure compensators(LDA).
9 Measuring the internal pressure of distributor pump body.
10 Testing the electromagnetic valve of distributor pump.
11 Checking transfer pump.
12 Measuring the reflux delivery of distributor pump body.
PARAMETERS
1 Power supply:(3-Phase)380V/50Hz (or on request)
2 Height of spindle centers:125mm
3 Graduated cylinder: 45CC or 150CC
4 Volume of fuel tank:60L
5 DC.Supply:12/24V
6 Feeding fuel pressure: Low:0-0.4Mpa High:0-4Mpa
7 Range of speed:+/-4000RPM
8 Oil test accuracy Accessories:5u
9 Flywheel inertia: 0.8KG.. M2
10 Whole volume:(L*W*Hmm)2100*1050*1680
11 Net weight:900Kg
