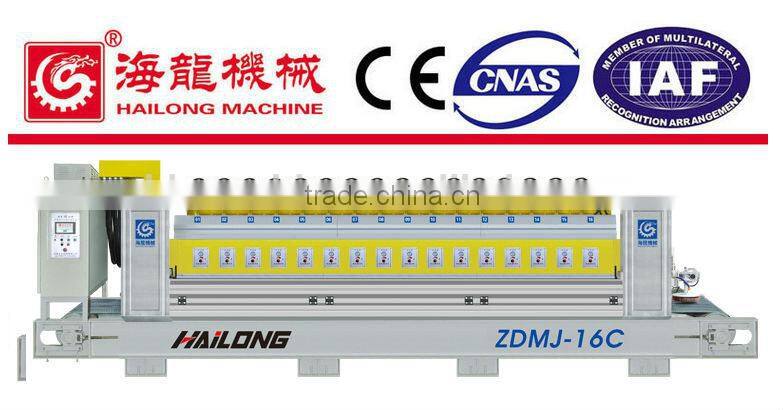

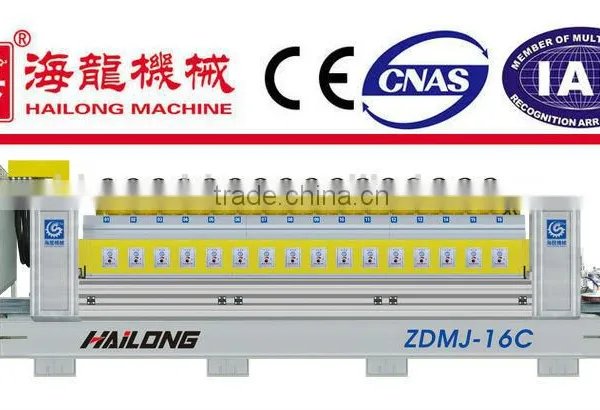

ZDMJ-16C granite automatic line grinding machine
1.FUNCTION:
It is used for continuous grinding and polishing of granite plated and meets particularly the demand of mass production and production of more-than-80°gloss slab
2.MACHINE PRODUCTION ABILITY:
Average:500 M2/DAY
Hard: 400M2/DAY
Soft: 600M2/DAY
3.FEATURES:

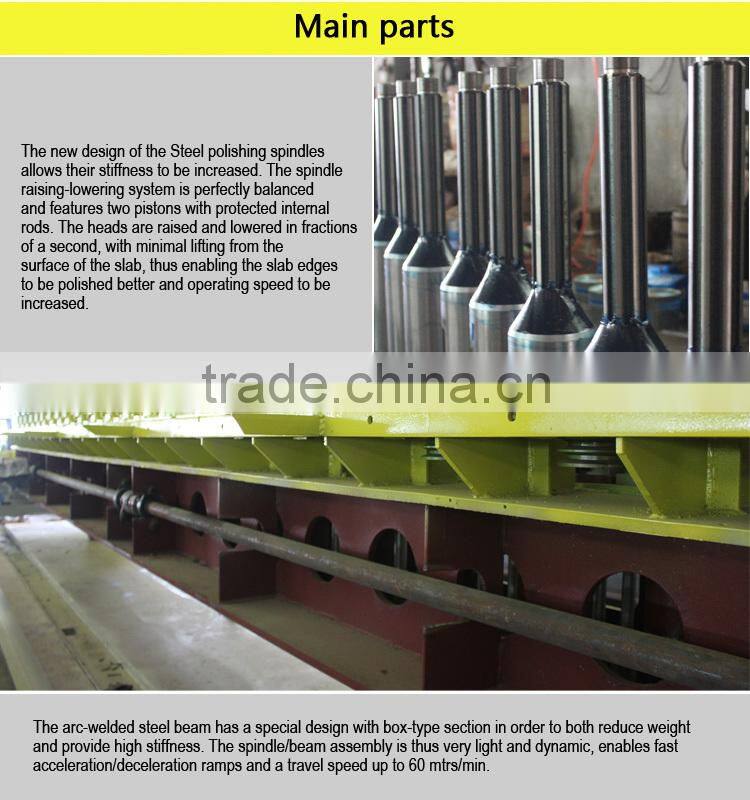

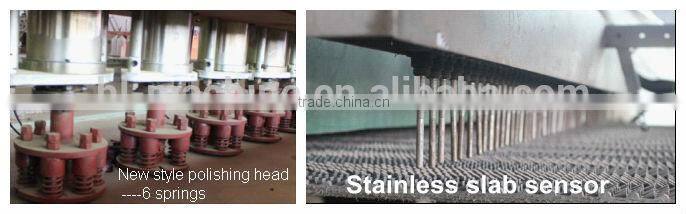

I. The brand new six spring polishing head rather than the original polishing head. There are 6 spring bring 6 stress point, which make the polishing process more stable; and instead of one-term pressing, we enable the principal axis descend in 3 times, relieve the pressure when it descending, so that it can better avoid impact and protect the slab.
II. And the adopt of the special and unique infrared slab sensor can recognize the flatness and shape of the slab to better polishing later.
II. The device uses light and low-power-consumption resin polishing disc. With single polishing head consuming 7.5KW power, its power consumption is two quarters less than traditional continuous polisher.

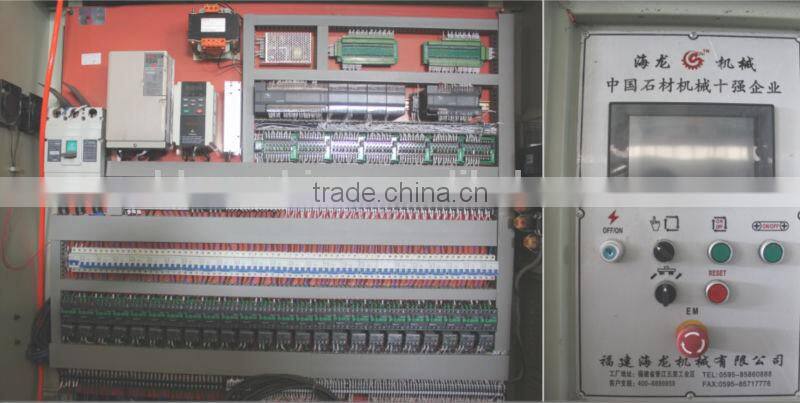

IV. Controlling system adopts PLC terminal control for convenience of setting parameters through LCD touch screen.
V. The elevation of polishing head and grinding and polishing pressure, demand of which is adjustable within set value, are pneumatically controlled. The machine is equipped with variable frequency adjustable speed system to adjust speed of lateral grinding and polishing of polishing head and speed of transmitting slab and to adjust them flexibly within set value.
4.TECHICAL PARAMETER
ITEM NO. |
ZDM16C/0.9 |
ZDM16C/1.2 |
ZDM16C/1.5 |
QUANTITY OF HEADS |
16 |
16 |
16 |
POWER OF MAIN MOTOR |
7.5KW |
7.5KW |
7.5KW |
TOTAL POWER |
130KW |
130KW |
130KW |
GRINDING HEAD DIAMETER |
200mm |
200mm |
200mm |
GRINDING PLATE WIDTH |
900mm |
1200mm |
1500mm |
GRINDING PLATED HEIGHT |
10-50cm |
10-50cm |
10-50cm |
BEAMS SWING SPEED |
3-35m/min |
3-35m/min |
3-35m/min |
SLAB TRANSMITTED SPEED |
1-3m/min |
1-3m/min |
1-3m/min |
COOLLING WATER PRESSURE |
0.1-0.15MPA |
0.1-0.15MPA |
0.1-0.15MPA |
WATER CONSUMPTION |
20m3/h |
20m3/h |
20m3/h |
AIR SUPPLY PRESSURE |
0.8mpa |
0.8mpa |
0.8mpa |
TOTAL WEIGHT |
13000kgs |
15000kgs |
16000kgs |
DIMENSION(LXWXH) |
9200x2700x2300mm |
9200x2700x2300mm |
9200x2900x2300mm |
REMARKS:
Packing: Sea worthy packaging, fully wrapped with waterproof membrane and air bubbles
Lead time :15-45 days from production and 1-2weeks from stock
Guaranty time for elements: Half an year
Payment: 30% by T/T in advance as deposit, 70% upon dispatch
5.MACHINE IMPOTANT COMPONENTS

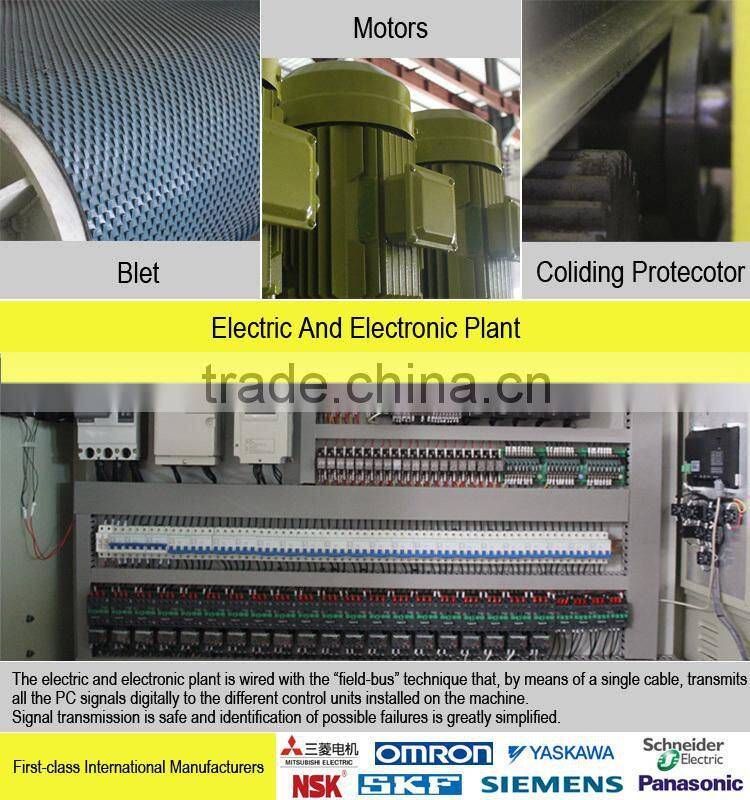

Electrical component |
International brand |
Current brand |
The touch screen |
SIEMENS |
Kinco ( German & CHINA JOINTED) |
Air switch |
SIEMENS |
Delix |
Frequency convertor for bridge |
SCHNEIDER |
YASKAWA/( JAPEN & CHINA JOINTED) |
Frequency convertor for belt |
SCHNEIDER |
YASKAWA/ INVONANCE |
Power switch |
SCHNEIDER |
YASKAWA/ INVONANCE |
Transformer |
DELIX |
DELIX |
PLC |
MITSUBISHI |
INVONANCE/ |
Relay |
APT |
APT |
White air switch for polishing |
Delix |
Delix |

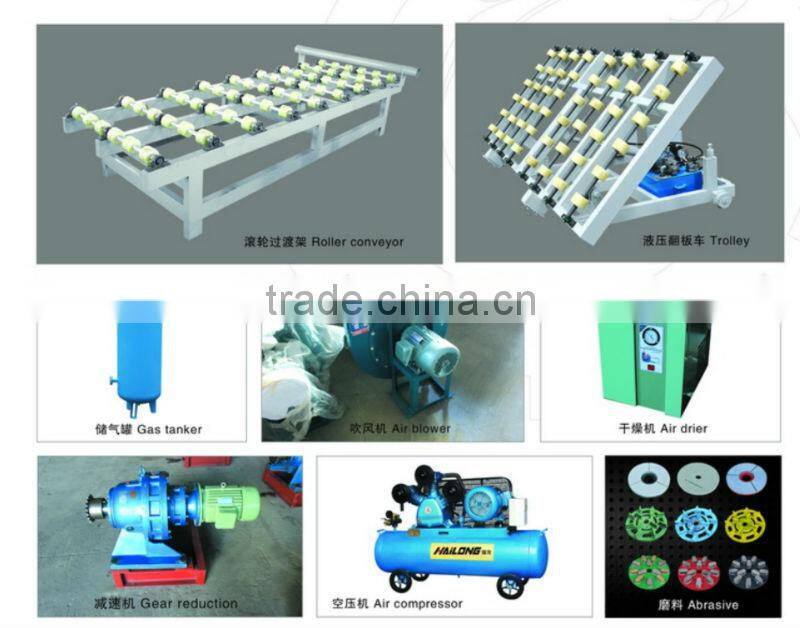

6.MACHINE ASSEMBLY
Slab trolley |
2 pc |
Slab rollers |
2 pc |
Gas holder |
1 pc |
Air drier |
1 pc |
Air compressor |
1 pc |
Gear reduction |
1 pc |
Air blower&drying device |
1 pc |
Cleaner |
1 pc |
7. MACHINE DETAILS SHOW
Market share:
Fujian Hailong brand granite polishing machine, with our unique advantage have already occupied the domestic and overseas market successfully. Out china market includes the Guangdong province, Guangxi province, Shandong province, Hubei and Hunan province, Hebei province, Sichuan province, Xinjiang province and Hangzhou province with office in each place. And we also extend our overseas market in like Iran, Turkey, Pakistan, India, Indonesia, Vitemn, Thailand.
Company production ability:
We produce more than 30 sts of automatic polishing machine each month.
