Specifications
1.All beams using full enclosed oil immersed type V grove rail2.200 m2/day
3.Heavy type with 650*600*7500 Casting iron beam
QDQ2500/QDQ2800/QDQ3200

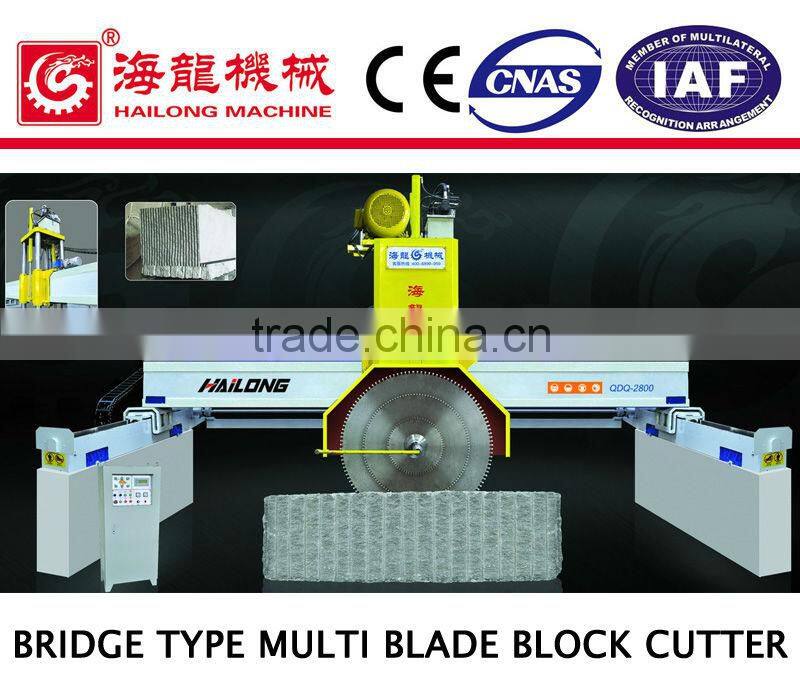

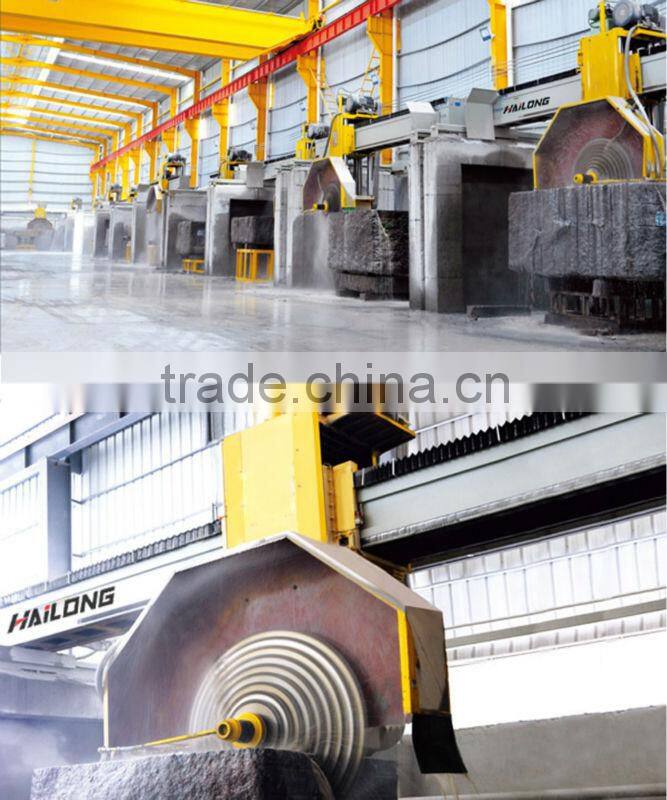

BRIDGE MULTI BLADES BLOCK CUTTING MACHINE(Heavy type)
Function:

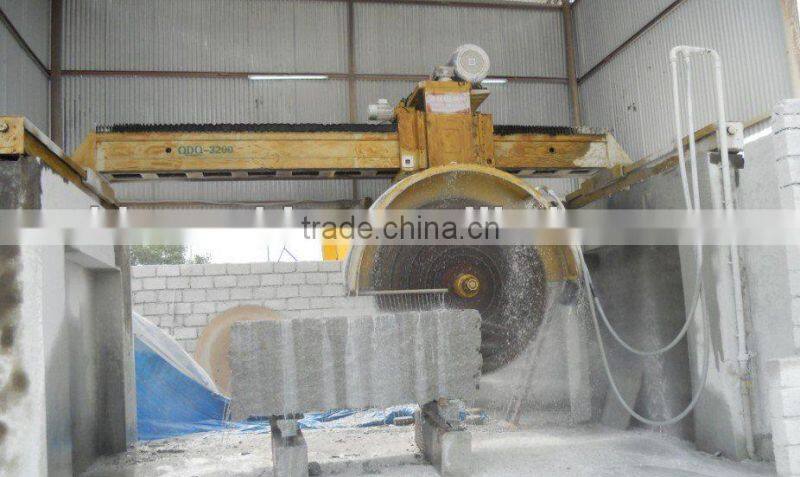

This machine is applicable for cutting stone block into slabs and tiles, featured by precise cutting, high efficiency and easy operation. It can cut with combination of large, middle-size and small blades or single large blade, ideally used for Block cutting
Production Ability:
Granite of medium rigidity: 200M2 / 24h
Granite of hard rigidity:150 M2 / 24h
Marble: 110-120M2 / 24h
Suggested Blade combination:
QDQ-2500,: 2L+2M+2S, such as 2x2500mm+2x1800~2200mm+2x1000mm when cutting 1.1m high block
QDQ-2800, 1L+1M+1S, such as 1x2500mm+1x1800mm+1x1000mm when cutting 1.25m high block
QDQ-3200, 1L, such as 3200mm when cutting 1.35mm high block
Other combinations are available, it depends on the block size
Features:

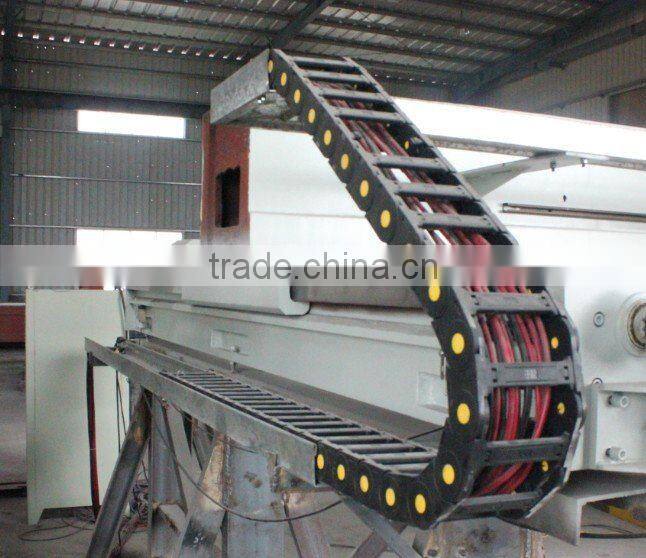

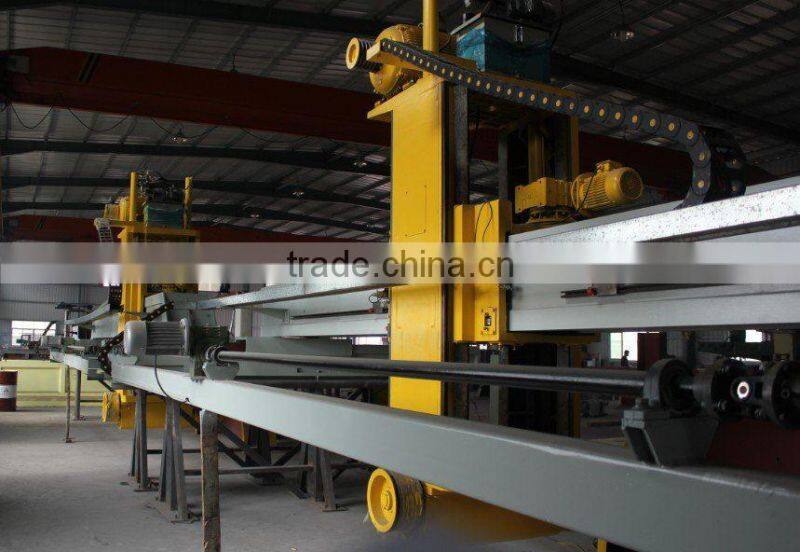

I. It is equipped with oil-immersed guide way for crossbeam and edge beam. while the slide track adopt dust proof to ensure the precise guide movement & long lifespan

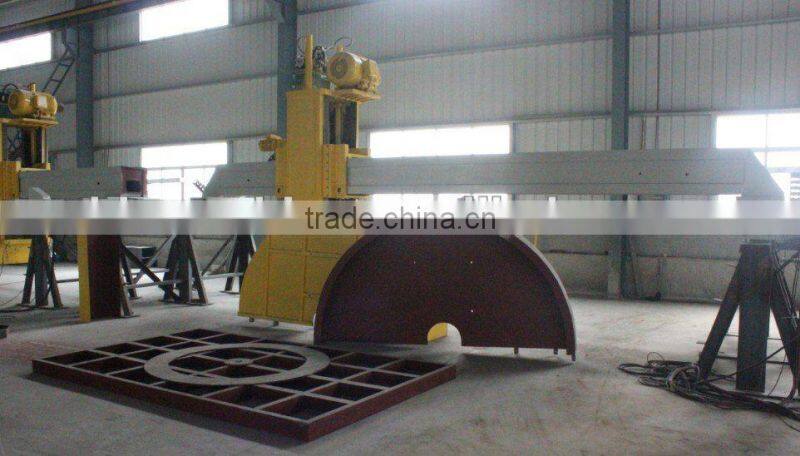

II. Crossbeam is made of strong cast iron to avoid distortion after long term use.

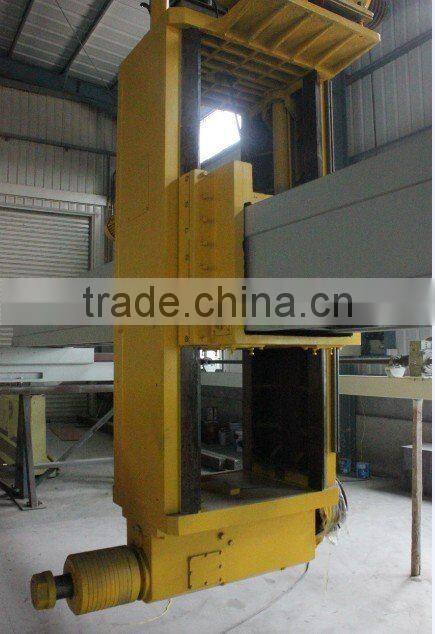

III. It is equipped with hydraulic controlled elevation system. Blocks are cut automatically individually

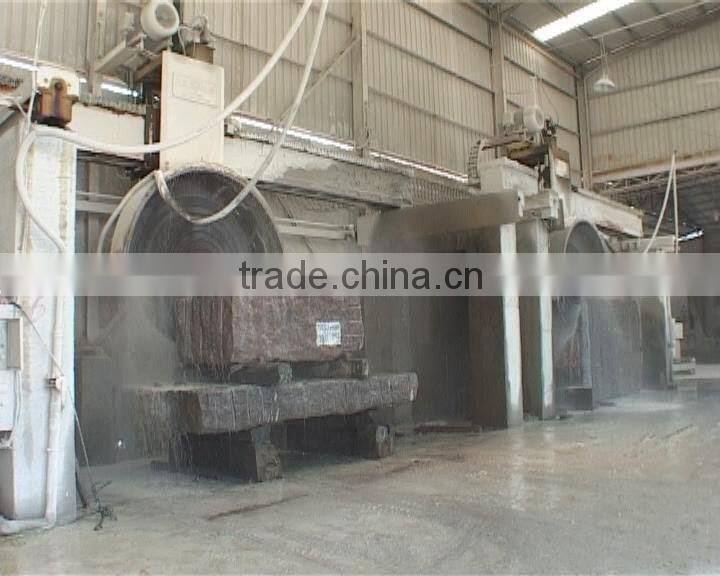

IV. Blocks are cut directly on the ground or on block table as required, with blade input speed flexibly adjusted by variable frequency adjustable speed system according to slab character.
V. It is under computer control and works by program automatically.
VI. Easy operation but with high production
TECHICAL PARAMETER
ITEM NO. |
QDQ2500 |
QDQ2800 |
QDQ3200 |

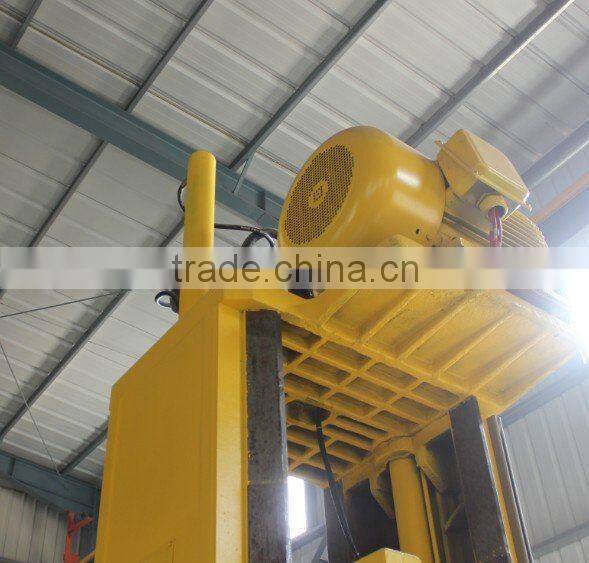

POWER OF MAIN MOTOR |
30KW/37KW |
37KW |
45KW |
TOTAL POWER--OPTIONALLY |
42.2KW |
42.2KW |
50.2KW |
MAX.BLADE DIAMETER |
1600-2500mm |
1600-2800mm |
3200mm |
MAX. VERTICAL STROKE |
1100mm |
1350mm |
1450mm |
MAX. WORKTABLE LENGTH |
4000mm |
3300mm |
2500mm |
MAX.WORKTABLE WIDTH |
2200mm |
2300mm |
2300mm |
WATER COMSUMPTION |
8.5M3/H |
9M3/H |
10M3/H |
WEIGHT |
10500KG |
12500KG |
14500KG |
DIMENSION(LXWXH) |
7800X4000X6500mm |
7800X4000X6500mm |
7800X4000X6500mm |
Sea worthy packaging, fully wrapped with waterproof membrane and air bubbles
Two units in one 40’ GP container
Delivery time :15-45 days from production and 1-2weeks from stock
Guaranty time for elements: half an year
Payment: 30% by T/T in advance as deposit, 70% upon dispatch
