Bridge multi blade granite cutting machine marble tile cutting machine stone cutting machine

Specifications

Desrcption:45 DEGREE TILTING BRIDGE TYPE LASER CUTTING MACHINE
Item No.:ZDQ350/400/

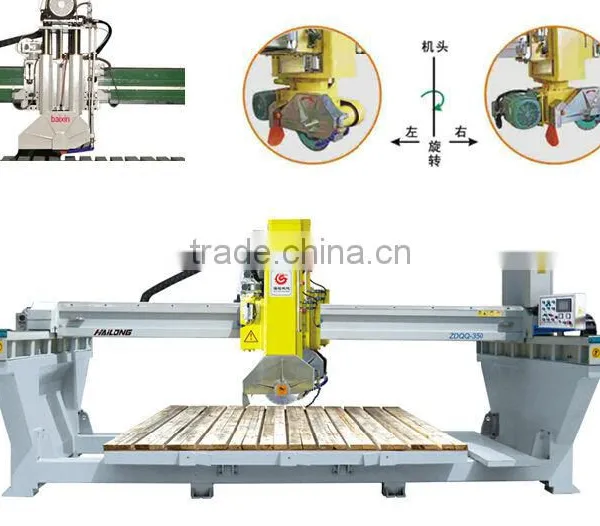

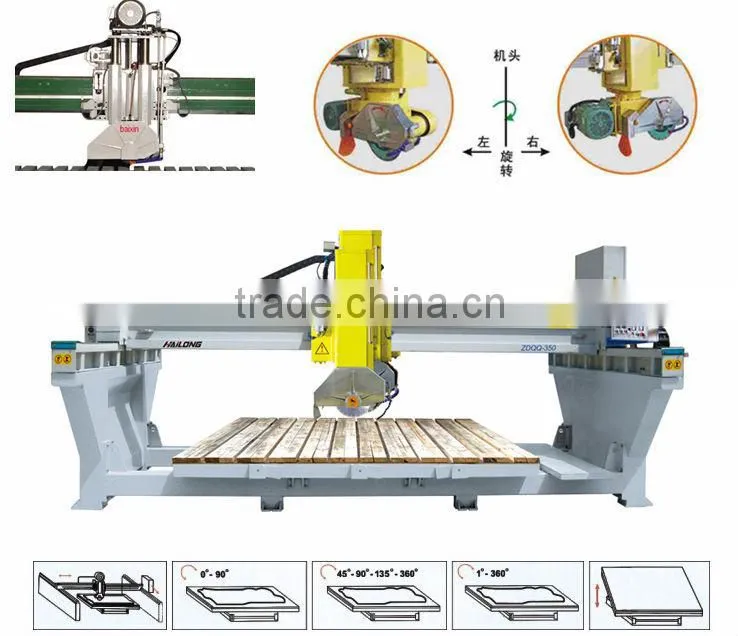

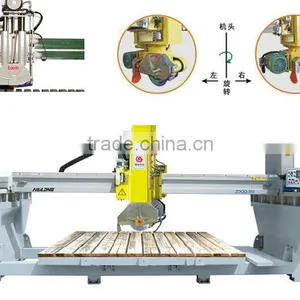

TILTING BRIDGE TYPE CONJOINED INFRARED SLAB CUTTING MACHINE ZDQQ350/400/600/700



FEATURE:

1.Table and the side beam is conjoined together

2. working bench included

3.200- 300m2 / 16h production capacity

4.Cutting 2cm~8cm thickness slab

5.cutting both granite and marble

6. working bench 360 degree rotation and 85 degree vertical tilting

7.Cutting max: 3200x2000x80mm

8.Cutting head can be 360 degree tilting.





FUNCTION:

Mainly used for cutting and processing of marble, granite and other large-size slab.

I.This equipment adpots oil-immersed cross bridgeand side beam.

II.The lifting system uses the hydraulic system.

III.The control system is controlled by the PLC and it can be operated by touch screen. The machine can split the slab by itself automaticly. The blade entering speed is controlled by the frequence convertory so it is flexible. You can change according to different slab size. And there is infrared laser blade measurement. The table can be 90 vertical degree and 360 horizontal rotating

The table and the side beam is being conjoined together which ensure the cutting stabllity and easy installation.



The total machine is with high cutting accurancy and stable performance.



Production Ability:

Granite of medium rigidity: 300M2 / 24h

Granite of hard rigidity:150 -200M2 / 24h

Marble: 110-120M2 / 24h

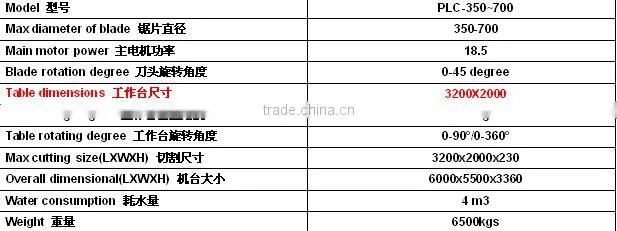

Technology Parameters:

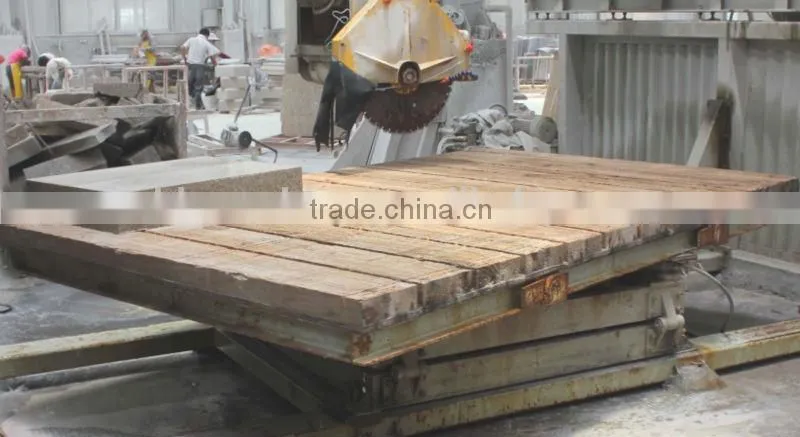

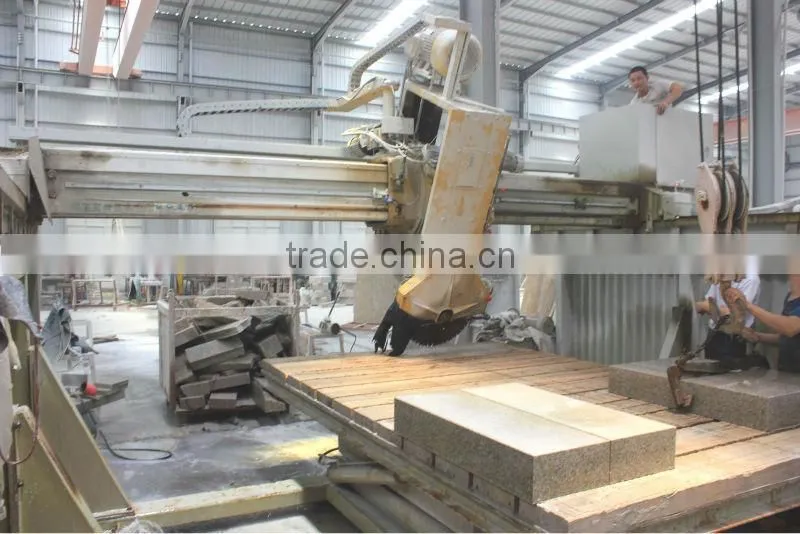

MACHINE RELATED PHOTO

 Sea worthy packaging, fully wrapped with waterproof membrane and air bubbles

Two units in one 40’ GP container

Delivery time :15-45 days from production and 1-2weeks from stock

Guaranty time for elements: half an year

Payment: 30% by T/T in advance as deposit, 70% upon dispatch
