EDGE PROFILING MACHINE

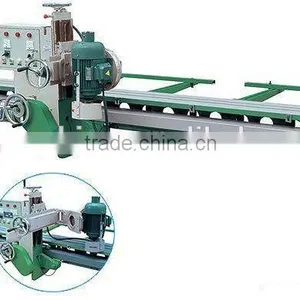

EDGE PROFILING MACHINE thumbnail-1

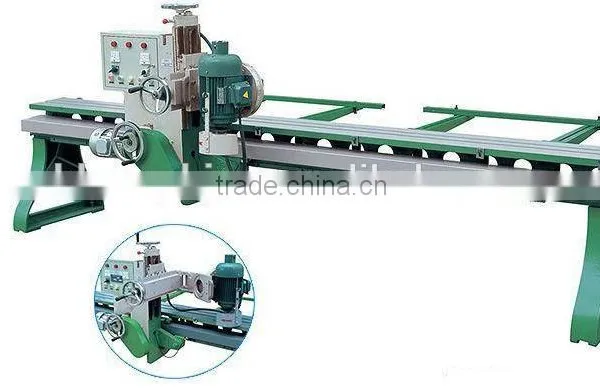

EDGE PROFILING MACHINE photo-1
US$ 10,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Marble
Contact Supplier Request Quote Chat Now
Fujian Hailong Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Cutting Machine
Use Marble
Production Capacity 40-50m2/8 hours
Place of Origin China
Brand Name HAILONG
Model Number HLEP-380/430/600
Voltage 240/440/380/425V
Power(W) 7.5KW
Dimension(L*W*H) 4200x3500x2100
Weight 5000KGS
Certification CE&EWC&ISO
Warranty 6 month
After-sales Service Provided Overseas third-party support available

Specifications

HLEP-10 series of stone profile machines are mainly used for grinding and polishing for difference edge and line.

EDGE PROFILING MACHINE

EDGE PROFILING MACHINE  HLEP-380/430/600-



1.Main machine introduction:

HLEP-10 series of stone profile machines are mainly used for grinding and polishing straight edge or curve edge and profiling internal or external curves. We have semi automatic and full atuomatic two types. This machine has the

2.Characteristics:
I. There are three kinds of length of steel body.
II.Each machine is equipped with two motors (main motor & travelling motor)
III.There are two types of speed (double speed or stepless speed)
IV.With sealed oil-immersed guide, the machine can work with long life.
V.Double-T type table makes it easy to install slabs.
VI.The machine can work with high efficiency and precision

3. TECHNOLOGY

Model

EP-380

EP-430

EP-600

Power Supply

4/3.3KW(Double Speed)

5.5/4.5KW(Double Speed)

7.5KW(Double Speed)

Rotation Speed of Profile Wheels

1440r/2880r/min

1440r/2880r/min

1900r/3800r/min

/Rotation Angel of Motor Heads

0-90°

0-360°

0-360°

Stone Thickness

10CM

10CM

10CM

Effective Processing Length

3.2M

3.6

3.7

Overall Dimension

3.8*1.5*1.5M

4.3*1.5*1.64M

6*1.5*1.64.M

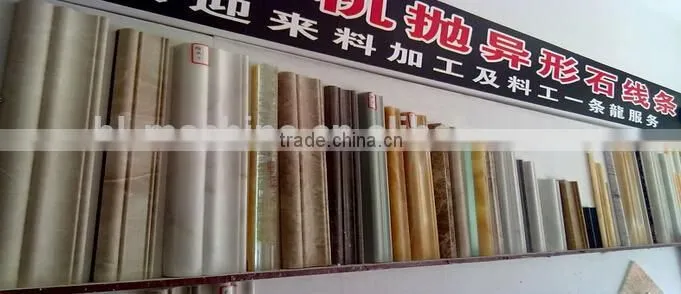

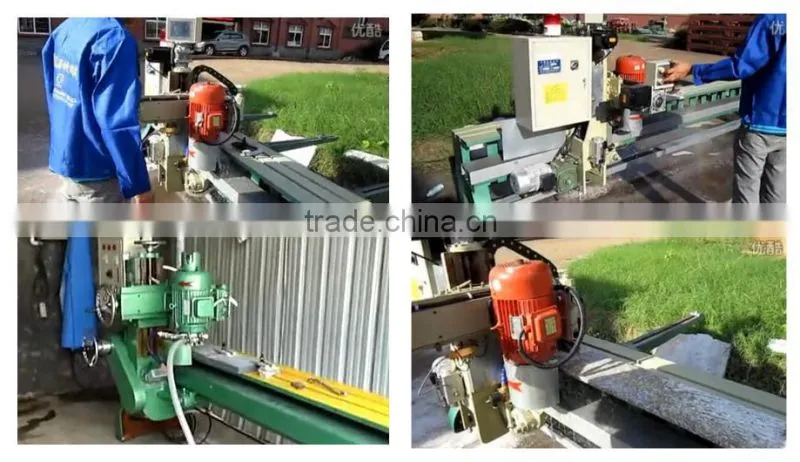

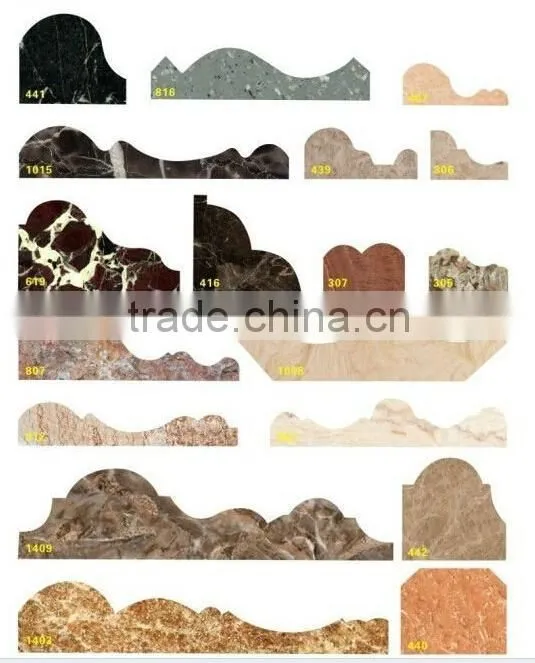

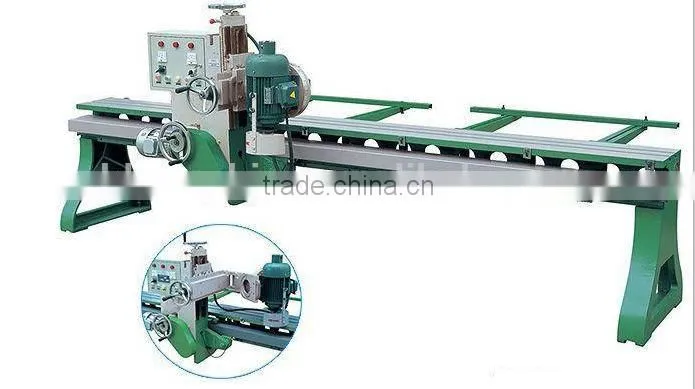

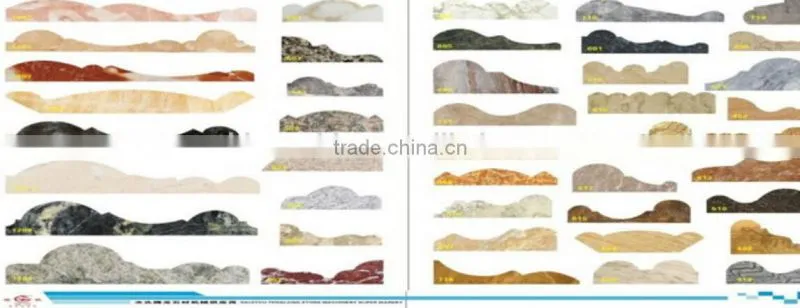

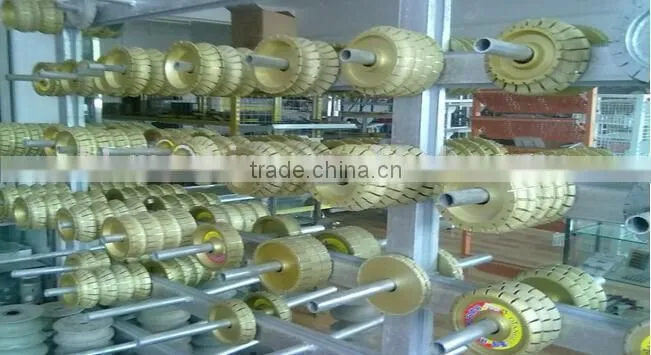

 4. RELATE PHOTOS

 EDGE PROFILING MACHINEEDGE PROFILING MACHINEEDGE PROFILING MACHINEEDGE PROFILING MACHINEEDGE PROFILING MACHINE
