Specifications
1. granite slab grinding and polishing2. 1200~1500M2/day produciton
3.85 degree gloss polishing quality
5. ok for hard stone

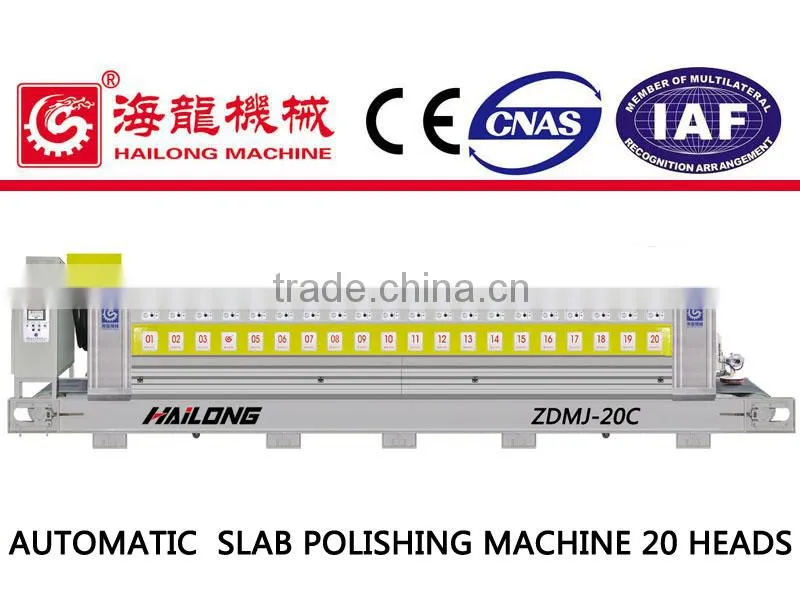

ZDMJ 20C GRANITE AUTOMATIC POLISHING MACHINE FOR SLAT
MACHINE PRODUCTION ABILITY:
Average:1200~1800 M2/DAY
Hard: 1000~1600M2/DAY
Soft: 12000~1800M2/DAY
Suggested abrasive combination:(see attached pictures)
20 heads: #50X2,# 400X3, # 200X3, # 500X2,# 800X2,# 1500X3,# 0X4
(# 50,# 200,# 400 Flexible use)
FEATURES:
I. The brand new six spring polishing head rather than the original polishing head. There are 6 spring bring 6 stress point, which make the polishing process more stable; and instead of oneterm pressing, we enable the principal axis descend in 3 times, relieve the force of when it descending, so that it can better avoid impact and protect the slab.
II. And the adopt of the special and unique infrared slab sensor can recognize the flatness and shape of the slab to better polishing later.
II. The device uses light and low-power-consumption resin polishing disc. With single polishing head consuming 7.5KW power, its power consumption is two quarters less than traditional continuous polisher.
IV. Controlling system adopts PLC terminal control for convenience of setting parameters through LCD touch screen.
V. The elevation of polishing head and grinding and polishing pressure, demand of which is adjustable within set value, are pneumatically controlled. The machine is equipped with variable frequency adjustable speed system to adjust speed of lateral grinding and polishing of polishing head and speed of transmitting slab and to adjust them flexibly within set value.
TECHICAL PARAMETER
ITEM NO. |
ZDM20C/0.9 |
ZDM20C/1.2 |
ZDM20C/1.5 |
QUANTITY OF GRINDING HEAD |
20 |
20 |
20 |
POWER OF MAIN MOTOR |
7.5KW |
7.5KW |
7.5KW |
TOTAL POWER |
166KW |
166KW |
166KW |
GRINDING HEAD DIAMETER |
200mm |
200mm |
200mm |
GRINDING PLATE WIDTH |
900cm |
1200cm |
1500cm |
GRINDING PLATED HEIGHT |
10-50cm |
10-50cm |
10-50cm |
BEAMS SWING SPEED |
3-35m/min |
3-35m/min |
3-35m/min |
SLAB TRANSMITTED SPEED |
1-3m/min |
1-3m/min |
1-3m/min |
COOLLING WATER PRESSURE |
0.1-0.15MPA |
0.1-0.15MPA |
0.1-0.15MPA |
WATER CONSUMPTION |
25m3/h |
25m3/h |
25m3/h |
AIR SUPPLY PRESSURE |
0.8mpa |
0.8mpa |
0.8mpa |
TOTAL WEIGHT |
14000kgs |
17000kgs |
19000kgs |
DIMENSION(LXWXH) |
11000x2700x2300mm |
11000x2700x2300mm |
11000x2900x2300mm |
Packing: Sea worthy packaging, fully wrapped with waterproof membrane and air bubbles
Lead time :15-45 days from production and 1-2weeks from stock
Guaranty time for elements: Half an year
Payment: 30% by T/T in advance as deposit, 70% upon dispatch
