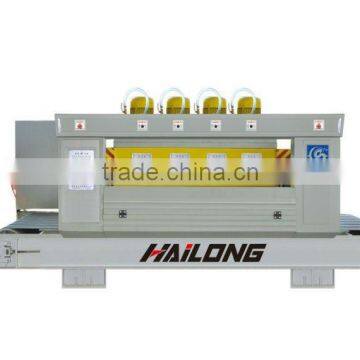

Zdmj 4c Granite Automatic Multi-heads Grinding Machine For Slat

Zdmj 4c Granite Automatic Multi-heads Grinding Machine For Slat thumbnail-1
Zdmj 4c Granite Automatic Multi-heads Grinding Machine For Slat photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Stone Grinding Machine
Use:
Granite
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Fujian Hailong Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Stone Grinding Machine
Use Granite
Place of Origin China
Brand Name HAILONG
Model Number ZDMJ-4C

Specifications

1. granite slab grinding
2. 300~500M2/day produciton
3.45~50 degree gloss polishing quality
5. for dyed clolor dstone

ZDMJ 8C/6C/4C GRANITE AUTOMATIC POLISHING MACHINE FOR SLAT



SPECIALIZED IN:

It is used for continuous grinding of dyed slab and meets the demand of mass production of more than 40-50degree gloss slab especially for grinding the back of dye color stone

WORKING THEORY:

I.   The device uses light and low-power-consumption resin polishing disc. With single polishing head consuming 7.5 power, its power consumption is two quarters less than traditional continuous polisher.

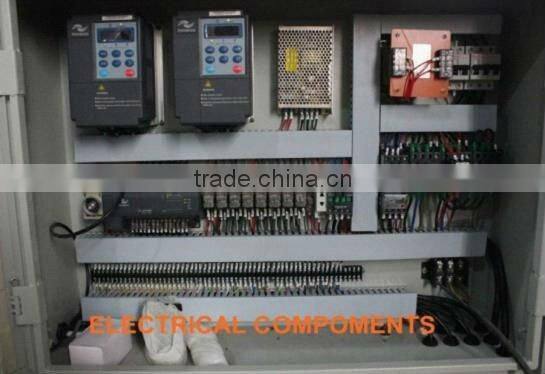

II.  Controlling system adopts PLC terminal control for convenience of setting parameters through LCD touch screen. The elevation of polishing head and grinding and polishing pressure, demand of which is adjustable within set value, are pneumatically controlled. The machine is equipped with frequency conversion adjustable speed system to adjust speed of horizontal grinding and polishing of polishing head and transmitting of slab flexibly within set value.

III. Slab is transmitted automatically. Polishing head intelligently calculate/distinguish the shape of slab and grind it continuously. With low cost and high production efficiency, a set of this device equals several manual or semi-automatic bridge polishers and requires 1-2 operators only



TECHICAL PARAMETER

ITEM NO.

ZDMJ 4C/0.9

QUANTITY OF HEADS

4

POWER OF MAIN MOTOR

7.5KW

TOTAL POWER

34.45KW

GRINDING HEAD DIAMETER

200mm

GRINDING PLATE WIDTH

900cm

GRINDING PLATED HEIGHT

10-50cm

BEAMS SWING SPEED

3-35m/min

SLAB TRANSMITTED SPEED

1-3m/min

COOLLING WATER PRESSURE

0.1-0.15MPA

WATER CONSUMPTION

8.5m3/h

AIR SUPPLY PRESSURE

0.7mpa

TOTAL WEIGHT

12500kgs

DIMENSION(LXWXH)

4700x2700x2300mm
