Half-Automatic Bridge Type Multi-Heads Grinding Machine

Half-Automatic Bridge Type Multi-Heads Grinding Machine thumbnail-1
Half-Automatic Bridge Type Multi-Heads Grinding Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
HAILONG
Model Number:
HL-8C
Contact Supplier Request Quote Chat Now
Fujian Hailong Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name HAILONG
Model Number HL-8C

Specifications

1.granite and marble polishing machine
2. 650M2/ day production
3. 0.6,0.7,0.8 m width slab
4. high polishing quality

HL-II-8C BRIDGE MULTI HEADS AUTOMATIC POLISHING MACHINE



MACHINE PRODUCTION ABILITY:

Average:600~650 M2/DAY

Hard: 450~600M2/DAY

Soft: 500~650M2/DAY

Suggested abrasive combination:(see attached pictures)

8 heads:#50 X1,#400X2, #200X1, #500X1,#800X1,#1500X1,#0X1

FEATURES:

I.   Based on advantage of manual polisher and years of experience of slab cutting and polishing, the newly designed semi-automatic polisher equals series workload of 8 manual polishers. The pressurization is pneumatic. Multiple cutting and polishing patterns are provided. All polishing head works simultaneously and automatically in the same procedure as manual polishers.

II.  By reducing operator to 1-2, it fundamentally reduces labor intensity and cost and thus improves production efficiency.

III.        Components of international qualified brands are applied in composition of electric and pneumatic controlling system, resulting in more credible performance and favorable flatness and gloss.

TECHICAL PARAMETER

ITEM NO.

HL-II-8C

GRINDING HEAD DIAMETER

200MM

QUANTITY OF GRINDING PLATE EACH TERM

8PCS

MAX.GRINDING PLATE WIDTH

600/700/800mm

GRINDING PLATE LENGTH

3200/4000/5200mm

SIDE BEAM LENGTH

4700/5400/6500mm

INSTALLATION LENGTH IN HORIZONTAL DIRECTION

8800

TOTAL POWER

65.27KW

POWER OF MAIN MOTOR

7.5KW

WATER COMSUMPTION

10m3/h

GRINDING PLATE HEIGHT

10-200

BEAMS SWING SPEED

0-13m/min

AIR SUPPLY PRESSURE

0.7mpa

WEIGHT

8500kgs

REMARKS:

Packing:  Sea worthy packaging, fully wrapped with waterproof membrane and air bubbles

Lead time :15-45 days from production and 1-2weeks from stock

Guaranty time for elements: Half an year

Payment: 30% by T/T in advance as deposit, 70% upon dispatch

Market share:

Fujian Hailong brand granite automatic polishing machine, with our unique advantage have already occupied the domestic and overseas market successfully. Out china market includes the Guangdong province, Guangxi province, Shandong province, Hubei and Hunan province, Hebei province, Sichuan province, Xinjiang province and Hangzhou province with office in each place. And we also extend our overseas market in like Iran, Turkey, Pakistan, India, Indonesia, Vitemn, Thailand.

Company production ability:

We produce more than 30 sets of automatic polishing machine each month.

Service:

Fujian hailong Co., ltd will offer you the best and professional technology and after sales service. If you bought the automatic polishing machine, we will have the technicians and workers on the spot service. And our company build up a professional group to track all the sold machine for its regular working and maintaining. Besides, we will have half and year guarantee.

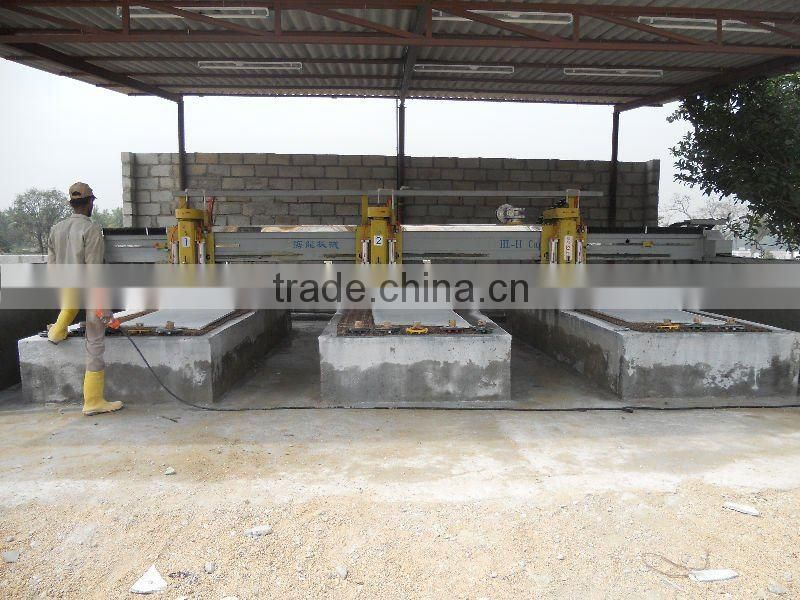

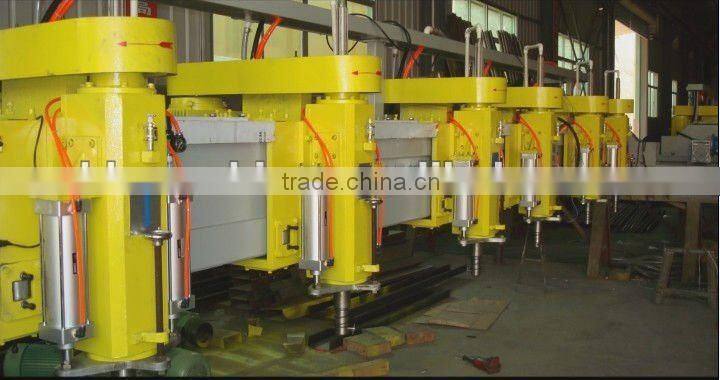

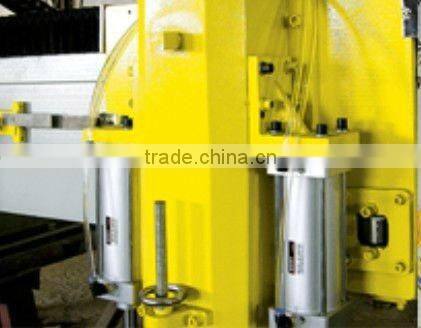

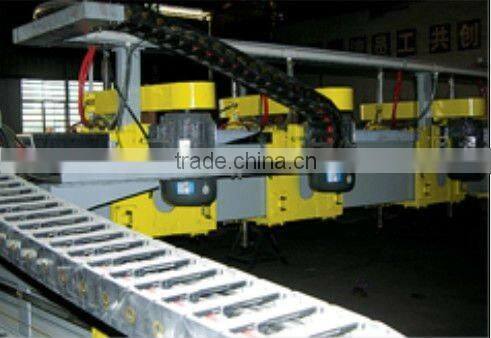

Other related photos:

Half-Automatic Bridge Type Multi-Heads Grinding MachineHalf-Automatic Bridge Type Multi-Heads Grinding MachineHalf-Automatic Bridge Type Multi-Heads Grinding MachineHalf-Automatic Bridge Type Multi-Heads Grinding MachineHalf-Automatic Bridge Type Multi-Heads Grinding MachineHalf-Automatic Bridge Type Multi-Heads Grinding MachineHalf-Automatic Bridge Type Multi-Heads Grinding MachineHalf-Automatic Bridge Type Multi-Heads Grinding Machine
