MARBLE TILES Polishing Machine g

MARBLE TILES Polishing Machine g thumbnail-1
MARBLE TILES Polishing Machine g photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Polishing Machine
Use:
Marble
Contact Supplier Request Quote Chat Now
Fujian Hailong Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Polishing Machine
Use Marble
Production Capacity 150 sq.meter/ 8 hrs
Place of Origin Fujian, China
Brand Name HAILONG
Model Number HLMP-8C
Voltage According to customer demand
Power(W) 130 HP
Dimension(L*W*H) 4500*1300*1700
Weight 6000kg, 8 tons
Certification CE/CNAB/ISO9001
Warranty 6 months
After-sales Service Provided Overseas third-party support available

Specifications

It is used for continuous grinding and polishing of marble tile and slab and meets particularly the demand of mass production an

ranite
Product Description

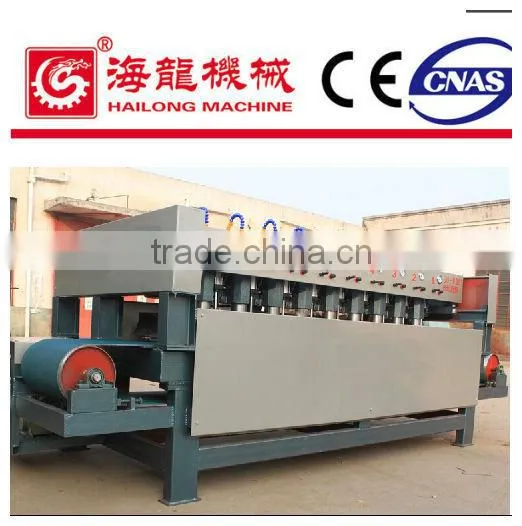

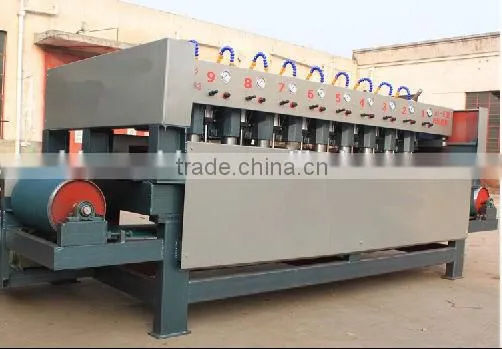

HLMP-8C MARBLE TILES AUTOMATIC POLISHING MACHINE

MARBLE TILES polishing machine g



1.FUNCTION:

It is used for continuous grinding and polishing of marble tile and slab and meets particularly the demand of mass production and production of more-than-70°gloss tiles



2.MACHINE PRODUCTION ABILITY:

Average:100~150 M2/8 hours

Hard: 100~120M2/DAY-24 hours

Polishing quality:70~100 degree

Polish size: 200-500MM MAX(I.E 40X40; 40X50, 30X50)

Total power: 25kw

Belt width: 530mm width



3.SUGGESTED POLISH PAD COMBINATION

8 heads:#50 X1,#150x1,#300X1,#500X1,#1000X1,#2000X1,#3000X1,#6000X1



4.FEATURES:

I. The device uses light and low-power-consumption resin polishing disc. With single polishing head consuming 2.2KW power, its power consumption is two quarters less than traditional continuous polisher.

II. Controlling system adopts PLC terminal control for convenience of setting parameters through LCD touch screen.

V. The elevation of polishing head and grinding and polishing pressure, demand of which is adjustable within set value, are pneumatically controlled. The machine is equipped with variable frequency adjustable speed system to adjust speed of lateral grinding and polishing of polishing head and speed of transmitting slab and to adjust them flexibly within set value.



4.TECHNOLOGY PARAMETERS:

ITEM NO.

HLMP-8C

QUANTITY OF HEADS

8

POWER OF MAIN MOTOR

3.5KW X3PCS;

2.2KWX5PCS

TOTAL POWER

25KW

GRINDING HEAD DIAMETER

100/200mm

GRINDING PLATE WIDTH

900cm

GRINDING PLATED HEIGHT

10-50cm

BEAMS SWING SPEED

1-15m/min

SLAB TRANSMITTED SPEED

1-1.5m/min

COOLLING WATER PRESSURE

0.1-0.15MPA

WATER CONSUMPTION

7m3/h

AIR SUPPLY PRESSURE

0.7mpa

TOTAL WEIGHT

50000kgs

DIMENSION(LXWXH)

4500*1300*1700(Mm)





6.MACHINE IMPOTANT COMPONENTS



The touch screen

SIEMENS

Air switc h

SIEMENS

Frequency convertor for bridge

Schneider

Frequency convertor for belt

Schneider

Power switch

Schneider

Transformer

DELIX

PLC

Mitsubishi

Relay

APT

White air switch for polishing

Delix







7.MACHINE ASSEMBLY



Slab trolley

2 pc

Slab rollers

2 pc

Gas holder

1 pc

Air drier

1 pc

Air compressor

1 pc

Gear reduction

1 pc

Air blower&drying device

1 pc

Cleaner

1 pc

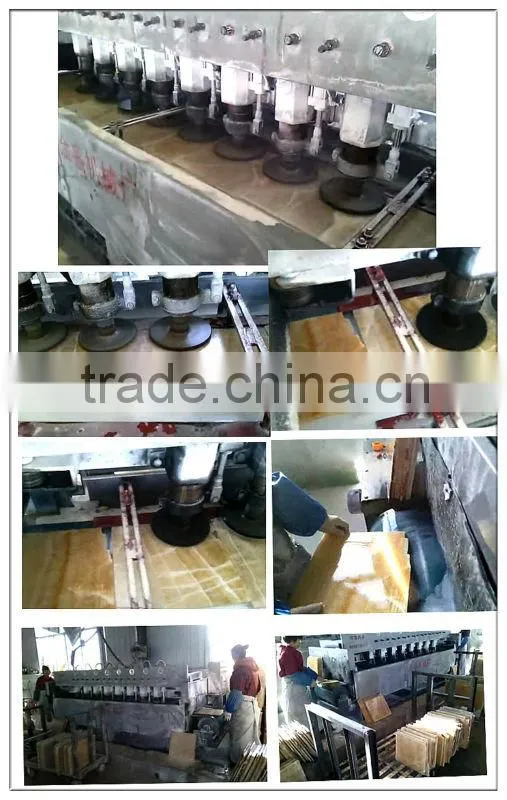

9.MACHINE RUNNING PHOTO

MARBLE TILES polishing machine g



REMARKS:

Packing: Sea worthy packaging, fully wrapped with waterproof membrane and air bubbles

Lead time :15-45 days from production and 1-2weeks from stock

Guaranty time for elements: Half an year

Payment: 30% by T/T in advance as deposit, 70% upon dispatch







Company Information



5.Company details

Company Market share:

Fujian Hailong brand granite automatic polishing machine, with our unique advantage have already occupied the domestic and overseas market successfully. Out china market includes the Guangdong province, Guangxi province, Shandong province, Hubei and Hunan province, Hebei province, Sichuan province, Xinjiang province and Hangzhou province with office in each place. And we also extend our overseas market in like Iran, Turkey, Pakistan, India, Indonesia, Vitemn, Thailand.



Company production ability:

We produce more than 30-60 sets of automatic polishing machine each month.



Service:

Fujian hailong Co., ltd will offer you the best and professional technology and after sales service. If you bought the automatic polishing machine, we will have the technicians and workers on the spot service. And our company build up a professional group to track all the sold machine for its regular working and maintaining. Besides, we will have half and year guarantee.
