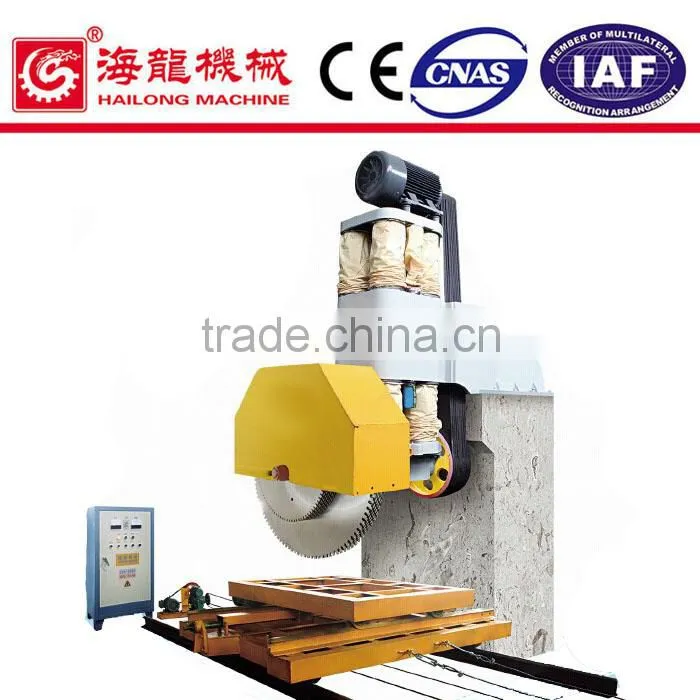

HYDRAULIC MULTI BLADES GRANITE BLOCK BRIDGE SAW(Single Beam) 8 Blades

HYDRAULIC MULTI BLADES GRANITE BLOCK BRIDGE SAW(Single Beam) 8 Blades thumbnail-1
HYDRAULIC MULTI BLADES GRANITE BLOCK BRIDGE SAW(Single Beam) 8 Blades photo-1
US$ 17,500 - 24,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Stone Cutting Machine
Use:
Granite
Production Capacity:
300m2/day
Contact Supplier Request Quote Chat Now
Fujian Hailong Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Stone Cutting Machine
Use Granite
Production Capacity 300m2/day
Place of Origin Fujian, China
Brand Name HAILONG
Model Number HLDBDQ-8
Voltage According to customer demand
Power(W) 45kw
Dimension(L*W*H) 10000*7000*6600mm
Weight 7.5T
Certification CE/ISO/CNAS
Warranty 6 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. 8 blades cutter (5.5~6.5mm thickness)
2.200m2/ day production
3. good for Tan brown, India red
4.cutting 700-1100mm high

 HYDRAULIC FOUR COLUMNS GRANITE BLOCK STONE CUTTING MACHINE

HYDRAULIC MULTI BLADES GRANITE BLOCK BRIDGE SAW(Single Beam) 8 Blades



FUCTION:

This machine is improved from the traditional combination blades block cutting, and it also adopt the 4 columns structure. The performance is excellent with very small cutting gap.By obviously reducing the shaking during the cutting, the after cutting slab looks very smooth and high cutting accuracy. Beside, also we improve the segment life and reduce the power consumption.



Product Description

Item NO.

HLDBDQ-12

HLDBDQ-14

HLDBDQ-16

Saw Diameter

1650mm/2200mm(Raise foundation height)

Saw Amt

12

14

16

Max Vertical Stroke

1000/1300mm(Raise height)

Max cutting size

3500*1550*1000mm

3500*1600*1000mm

3500*1650*1000mm

Manit motor power(kw)

55

65

75

Water Consumption

26m³/h

30m³/h

34m³/h

Weight(kg)

8500

8700

9000

Item NO.

HLDBDQ-18

HLDBDQ-20

HLDBDQ-22

Saw Diameter

1650mm/2200mm(Raise foundation height)

Saw Amt

18

20

22

Max Vertical Stroke

1000/1300mm(Raise height)

Max cutting size

3500*1550*1000mm

3500*1600*1000mm

3500*1650*1000mm

Manit motor power(kw)

85

95

110

Water Consumption

40m³/h

45m³/h

50m³/h

Weight(kg)

9000

10000

11500



HYDRAULIC MULTI BLADES GRANITE BLOCK BRIDGE SAW(Single Beam) 8 BladesHYDRAULIC MULTI BLADES GRANITE BLOCK BRIDGE SAW(Single Beam) 8 Blades

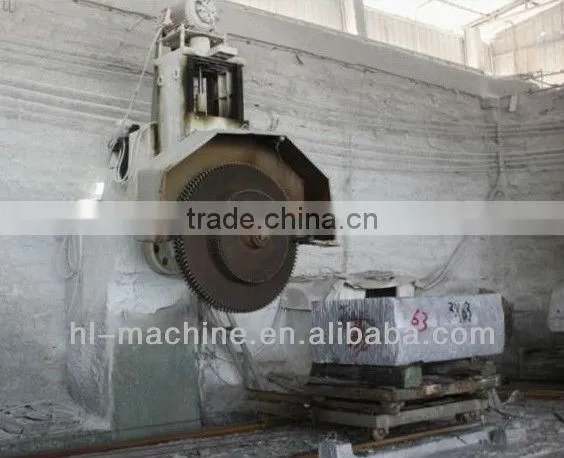

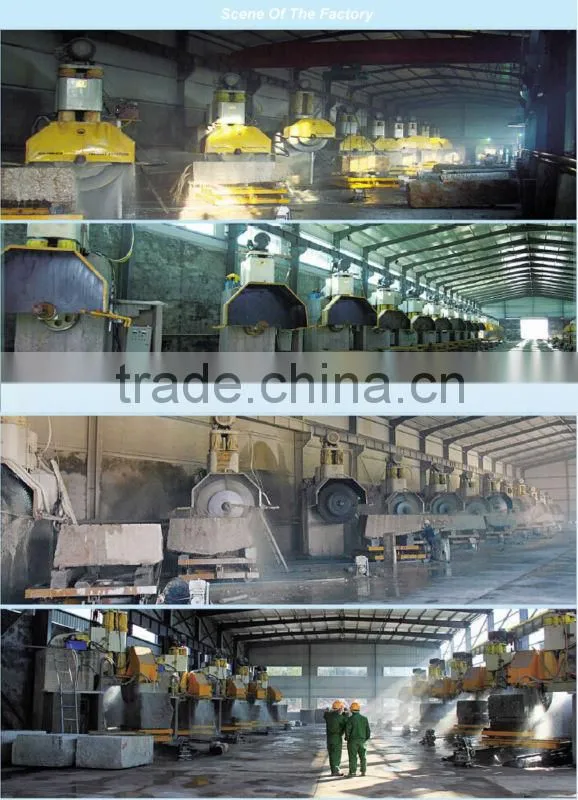

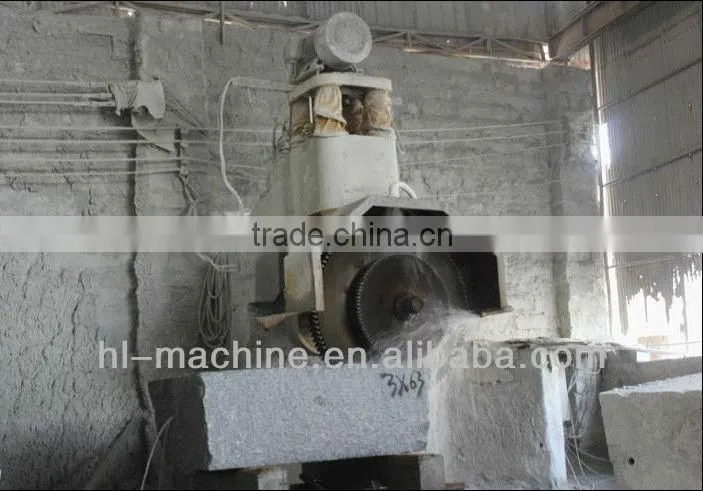

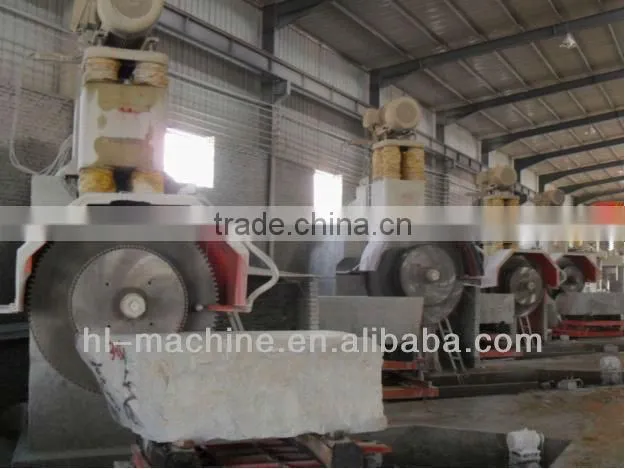

MACHINE RUNNING PHOTOE

HYDRAULIC MULTI BLADES GRANITE BLOCK BRIDGE SAW(Single Beam) 8 BladesHYDRAULIC MULTI BLADES GRANITE BLOCK BRIDGE SAW(Single Beam) 8 BladesHYDRAULIC MULTI BLADES GRANITE BLOCK BRIDGE SAW(Single Beam) 8 Blades
