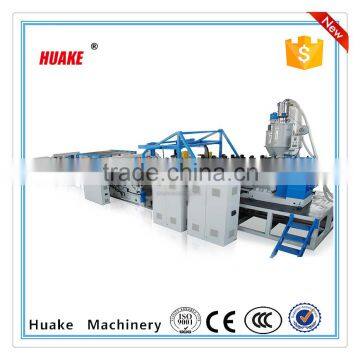

Chinese high quality PE sheet Plastic machine production line

Equipment list

PP sheet extrusion machine

The product’s width:900mm, thickness:0.2-1.5mm

SJ-65/30 single screw extruder   one set

Automatic feeder

Hopper dryer

Automatic feeder

Hopper dryer

Electric controlling parts: main machine operating controlling cupboard

3.sheet mould                                     1 set

(1) mould material: made of good quality steel forge part, surface deal with rigid chromic.

(2) mould type: finish goods width: 900mm, could adjust.

4.three rollers to polish sheet(the picture is only for your reference)

(1) casted by good quality steel, and have adjusting up-down rolls

(2)the rollers are twin-layer, the thickness of roll wall is ≥15mm

(3)single flowing road, inside recycle oil, the change of surface temperature is low 1 degree, casting by Chromium and deal as error, hard ≥RHC60, smoothness 14.

(4)use machine to drive, and have adjuster to adjust distance of roll

(5)use temperature controlling clock to control temperature

(6)three rolls drive, frequency conversion governor, easy cooperation and can be adjusting.

5. cooling and side cutting machine(the picture is only for your reference)

(1) diameter of roll is 75mm, use no space steel pipe, casting by Chromium on surface.

(2).side cutting machine one set, could adjust the width of the raw to cut

7. rubber rolls driver

(1) made of good quality rubber

(2) power of motor is7.5KW, frequency conversion governor

(3) planetary wove wire reducer

(4) the shelf of machine is casted by good quality steel

(5) tight by gas drive

8. sheet cutter

(1) the orientation cutter is sync with sheet

(2) the cut is controlled by pneumatic system.

iler

Part II: Terms

1. Price Terms

2. Quantity Terms

MOQ: 1 Whole Line/Item

3. Warranty Terms

We provide one-year warranty for all the machines for free, responsible for installing and debugging the production line in your home country

4. Time Terms

Producing time: 35days

5.Packing Terms

Film

6. Payment Terms

T/T advance30% deposit and 70% balance payment by T/T before delivery

7.Other Notes

a)The price is valid for 30 days.

b)Any question, please no hesitation to contact us.

c)We are factory, the source of products, so we can make machines according to your order.

d)If you need more products, please visit our website
