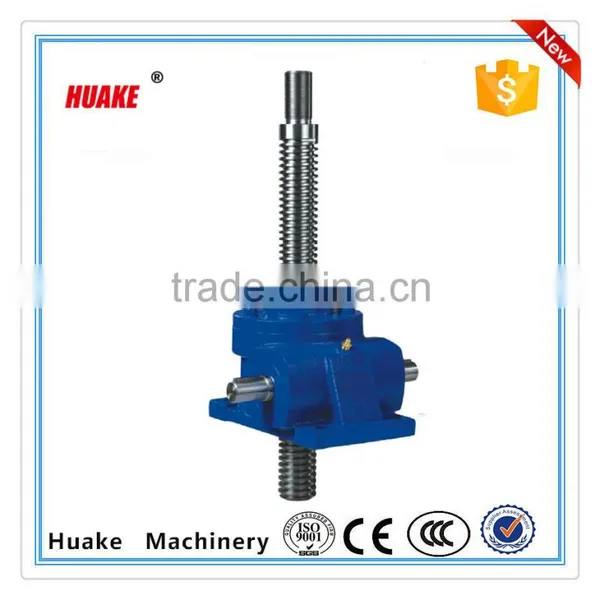

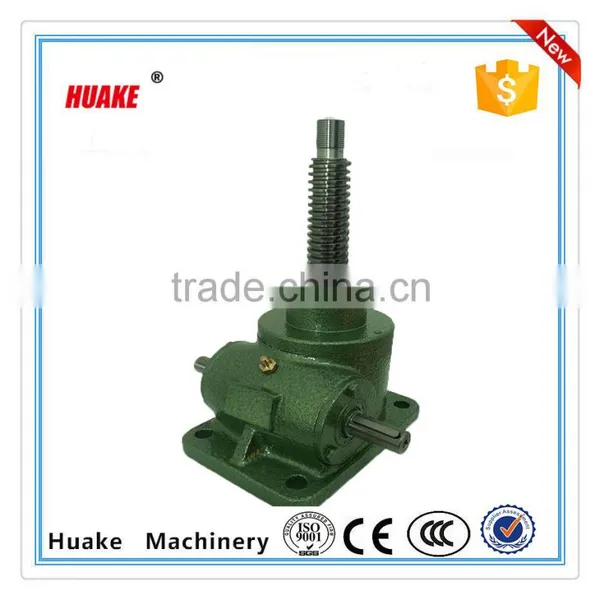

Help CenterSWL 2.5T Series Worm Gear Screw Jack,mechanical Screw Jack Quality Choice Most Popular
Related Products
-
High Quality SWL Series Worm Gear Mechanical Screw Jack in China Quality ChoiceUS$ 20 - 1,000MOQ: 1 Set -
SWL Series Electric Spiral Elevator ReducerUS$ 20 - 1,000MOQ: 1 Set
-
SWL Series Screw Jack Reducer Supplier's ChoiceUS$ 20 - 1,000MOQ: 1 Set
-
SWL1T,2.5T,5T,10T Series Worm Gear Screw Jack Quality Choice Most PopularUS$ 20 - 1,000MOQ: 1 Set
-
EV100 Series Variable-frequency Drive InverterUS$ 50 - 300MOQ: 1 Set
The transmission principle of the screw jack
Screw jack can be widely used in machinery, metallurgy, construction, chemical, medical, cultural and health, and other industries. Can according to a certain procedure to accurately control the adjustment of the height of ascension or propulsion, can be directly driven by motor or other power, can also be manually.
Type |
Model |
Screw thread size |
Max lifting strength kN |
Max pull force kN |
Weight without stroke kg |
Screw weight per 100mm |
|
SWL
Screw jack
|
SWL2.5 |
Tr30*6 |
25 |
25 |
7.3 |
0.45 |
SWL5 |
Tr40*7 |
50 |
50 |
16.2 |
0.82 |
|
SWL10/15 |
Tr58*12 |
100/150 |
99 |
25 |
1.67 |
|
SWL20 |
Tr65*12 |
200 |
166 |
36 |
2.15 |
|
SWL25 |
Tr90*16 |
250 |
250 |
70.5 |
4.15 |
|
SWL35 |
Tr100*18 |
350 |
350 |
87 |
5.20 |
|
SWL50 |
Tr120*20 |
500 |
500 |
420 |
7.45 |
|
SWL100 |
Tr160*23 |
1000 |
1000 |
1010 |
13.6 |
|
SWL120 |
Tr180*25 |
1200 |
1200 |
1350 |
17.3 |
