Home > Auto, Motorcycle Parts & Accessories > New Energy Vehicle Parts & Accessories > Motor Controller > 6W -250W Speed Controller With Gearmotor

6W -250W Speed Controller With Gearmotor

Name: 6W -250W Speed Controller With Gearmotor
Brand: v.t.v
SKU: 112169399
Availability: InStock

6W -250W Speed Controller With Gearmotor thumbnail-1

6W -250W Speed Controller With Gearmotor photo-1

US$ 7.8 - 15 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

v.t.v

Model Number:

US-52

Contact Supplier Request Quote Chat Now

Qingdao Chinese Science Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qing dao port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name v.t.v

Model Number US-52

Motor Type AC Motor

Product Description

Scope of application:

Widely used in 6W 15W 25W 40W 60W 90W 120W 180W 200W 250W, AC220V single-phase AC stepless speed regulation motor (non ordinary motor speed adaptation). Another governor connection port two, to tell us the distribution of the number of motor power when we take guests, convenient accurate selection of delivery!!!

Main technical data:

1, working power supply: 50/60HZ AC220V, voltage fluctuation range of positive and negative 10%Ue;
2, rated power: 15W 25W 40W 60W 6W 90W 120W 180W 200W 250W
3, the use of the environment: -10~+50;
4, the relative humidity is less than 90%;
5, speed range: 50HZ 90-1700r/min, 60HZ 90-1400r/min

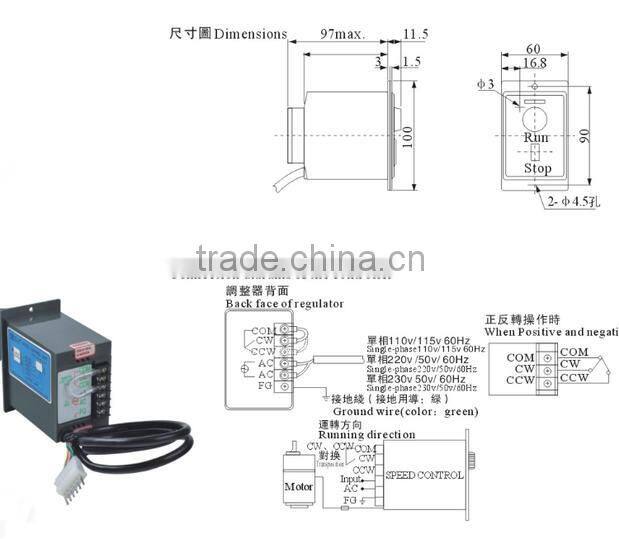

Three instructions for use:

Instructions for use:

1 before the external speed knob to "0", produced large transient current to avoid the damage caused by the controller.

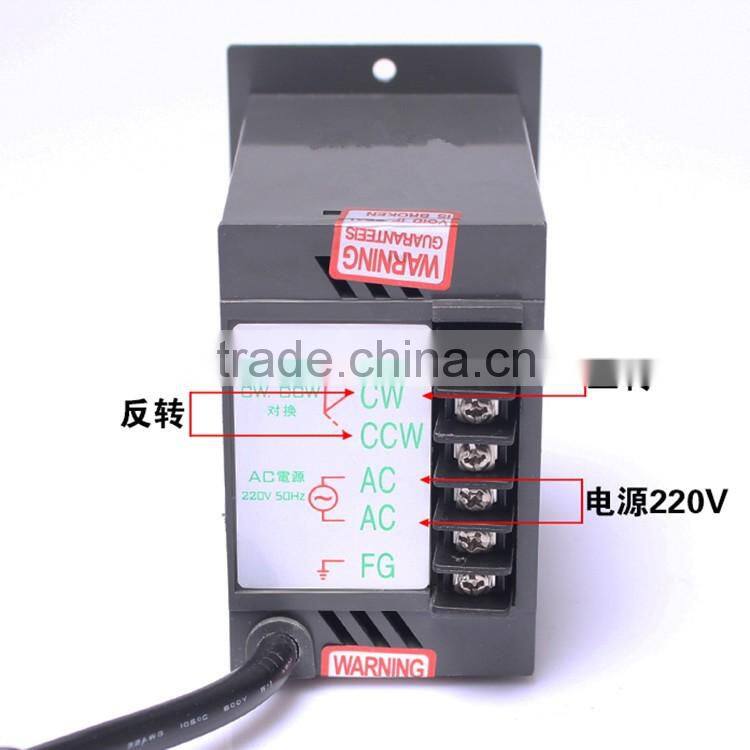

2, this product adopts feedback generator voltage control, control line: "blue" and "yellow" two line.
In 3, governor motor is connected if torque or speed does not meet the requirements, adjust the US-52 type side trimmer potentiometer.
4, to transform the running direction of motor: 1) COM and CW short circuit, the motor is transferred.
2) select COM and CCW short circuit, the motor reversal.
5, switch only control motor or stop, without interruption of power use, do not use a long time please turn off the power.

Packaging & Shipping

Our Services

Motor speed governor US-52 connected 220V voltage regulator 6W power 15W, 25W 40W 60W 90W, 120W 180W 200W 250W were a large number of spot. Technical support and after-sales service, if not understand, please contact us at any time, new original large spot, one year warranty!
