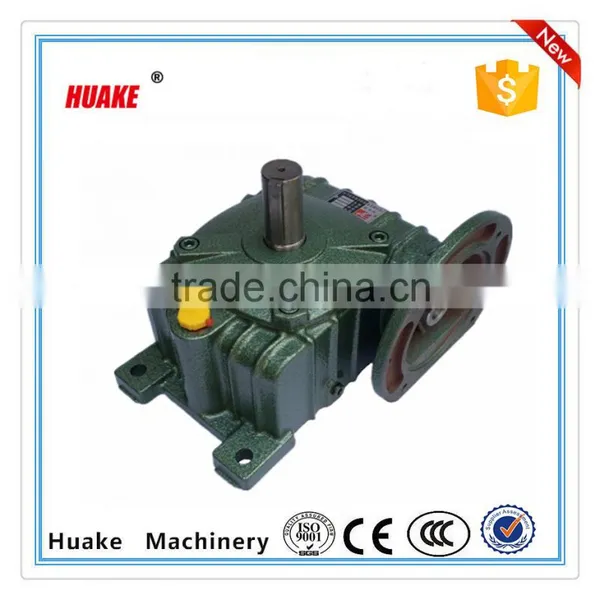

Help CenterHigh Quality WPDO Horizontal Worm Gear Box Quality Choice
Related Products
-
WPW Cast Iron Worm Gear Speed Reducer for Textile Machinery , Helical Gear BoxUS$ 50 - 100MOQ: 1 Set -
WPKA High Torque Industrial Worm Gear Speed Gearbox Quality ChoiceUS$ 1 - 1,000MOQ: 1 Unit
-
Hot Sale High Quality S Series Helical Geared GearmotorUS$ 50 - 1,000MOQ: 1 Set
-
Large Torque R Series Helical GearboxUS$ 1 - 1,000MOQ: 1 Unit
-
F Series Parallel Shaft Helical Gear Speed ReducerUS$ 100 - 10,000MOQ: 1 Set
Features:
1.widely used in turbines, shaft liners and axletrees;good resistance to wear, with high precision in dimensions,low noise, advanced centric running castings.
2.With air vent and high precision.
3.The structure is compact and the weight is large.
4.Packing:wooden cases or can be according to customer's requriements.
speed of input shaft:1500r/min
Notice:
1. notice of installation
1.1 The base-plate must be plane and stoutness and the base-plate must be screwed down and shock proof.
1.2 The connecting shaft of prime mover, reducer and operation device must be coaxial installation.
1.3 The diameter tolerance zone of input and output shaft is H6, the holes of fittings( such as couplings, belt-pully, sprocket wheel and so on) must properly mate the shaft, which prevents bearing from breakage because of over-loose mate.
1.4 Drivers such as sprocker wheel and gear must be fitted close to bearings in order to reduce bending stress of hanging shaft.
1.5 While assembling motor of WPD reducer, it is necessary that proper amount of butter applies to the warm shaft input hole and keyway, avoiding assembling too tightly and rusting after using for a long time.
1.6 When ordering or using all kinds of WPD type, if the motor weight is binger than the common,supporting set is required.
2.notice of usage
2.1 Before using,please check carefully whether the reducer modle, distance, ratio, input connecting method , output shaft structure, input and output shaft direction and revolving direction accord with required.
2.2 According to the requirement of selecting lubricant oil in the product manual. Please fill proper category and brand lubricant.And then screw on the vent-plug, unlock the small cone-plug of vent-plug.Only after doing these, reducer is already for startinh up running.The proper brand and adequate lubricant oil is required, replacing oil in time conforming to the request of product manual is also necessary, especially after using first 100hours, it is required refilling new oil.
2.3 When abnormal circumstances occur, please stop and check reducer per solutions and reasons for faults of reducer(allowable highest oil temperature is 95, under this temperature limit, if oil temperature no more goes up, please let reducer continue running).
SPECIFICATIONS:
Type |
wpdo worm speed reducers |
Size |
40—250 |
Ratio |
5.10.15.20.25.30.40.50.60.70.80.100 |
Mounting Position |
Foot mounted, flange mounted |
Output Form |
Solid shaft, hollow shaft |
Material of Housing |
Casting Iron |
Material of Shaft |
chromium steel |
Oil seal |
NAK |
Bearing |
C&U |
Ratio |
1:5-1:100 |
Certificate |
ISO9001 |
Warranty |
1 year |
Delievery on time | |
MORE SIMILAR PICTURE:
Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by . It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
Q4: If we don’t find what we want on your website, what should we do?
A: We offer three options:
1, You can email us the pictures, drawings or descriptions details. We will try to design your products on the basis of our standard models
2, Our R&D department is professional for OEM/ODM products by drawing/samples, you can send us samples, we do customized design for your bulk purchasing.
3, We can develop new products if they have good market. We have already developed many items for special using successful, such as special gearbox for agitator, cement conveyor, shoes machines and so on.
Q5: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing
Q6: How about your product delivery time?
A: Normally for 20'container, it takes 25-30 workdays for worm and cycloid gearbox, 35-40 workdays for helical bevel gearbox,40-60 days for planetary gearbox.
