Home > Products > No.4 Grinding Machine > Clay Grinding Ball Mill Equipment
Clay Grinding Ball Mill Equipment
- 50 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
Power(W): | 145-430kw | Capacity(t/h): | 1-200 | Place of Origin: | Henan, China |
Brand Name: | China DSM | Model Number: | A variety of models | Dimension(L*W*H): | Customized |
Weight: | 34t~60T | Certification: | ISO9001:2008, ISO9001:14000 | Warranty: | 12 Months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

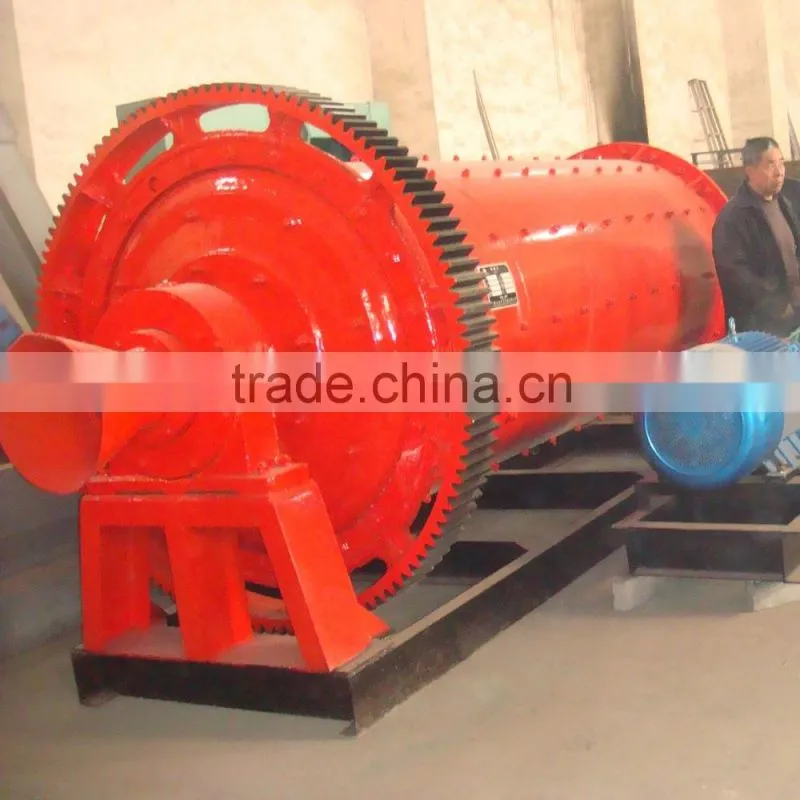

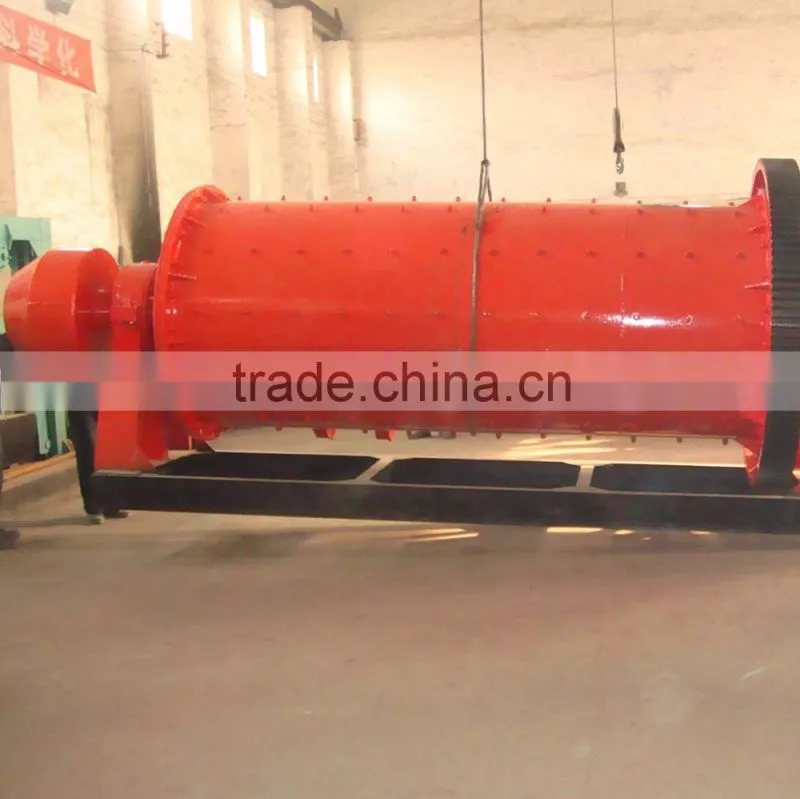

Clay Grinding Ball Mill Equipment
Clay Grinding Ball Mill Equipment is an efficient machine for fine powder grinding. It can grind many kinds of materials such as mineral ore, chemical, coal, cement, etc. It grinds the materials via grinding media such as steel ball, steel rod, stone. There are two ways of ball mill grinding for different grinding purpose: dry type grinding and wet type grinding. The longer the ball mill runs, the finer the powder will be. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs. The wet type ball mill always works together with spiral classifier to separate the suitable size, while the dry type ball mill works with sieve machine.
Main Structure of the Clay Grinding Ball Mill Equipment:

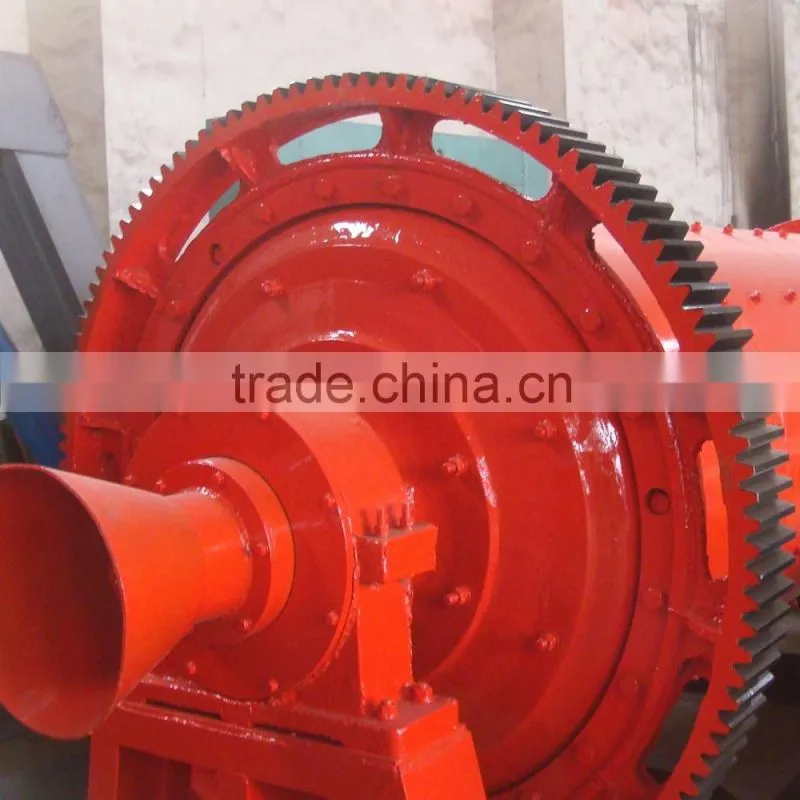

The machine is composed by electric control part, feeding part, discharging part, and transmission system which includes reducer, gear and pinion drive part, motor, etc.
Features of the Clay Grinding Ball Mill Equipment:
♦ Easy maintenance and operation
♦ Large processing capacity, uniform final size
Model | Rotary speed (r/min) | Ball weight (t) | Input size (mm) | Discharge size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) |
Ø900×1800 | 39 | 1.5 | ≤20 | 0.075-0.89 | 0.8-2 | 18.5 | 4.6 |
Ø900×3000 | 39 | 2.7 | ≤20 | 0.075-0.89 | 1-4 | 22 | 5.6 |
Ø1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
Ø1200×4500 | 32 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
Ø1500×3000 | 27 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 15.6 |
Ø1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
Ø1830×3000 | 25 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
Ø1830×6400 | 24 | 21 | ≤25 | 0.074-0.4 | 7-16 | 210 | 34 |
Ø1830×7000 | 24 | 23 | ≤25 | 0.074-0.4 | 8-18 | 245 | 36 |
Ø2100×3600 | 23 | 19 | ≤25 | 0.074-0.4 | 10-36 | 210 | 46 |
Ø2200×4500 | 21 | 27 | ≤25 | 0.074-0.4 | 12-23 | 280 | 48.5 |
Ø2200×6500 | 21 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
Ø2200×7000 | 21 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
Ø2200×7500 | 21 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
Ø2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 18-45 | 320 | 65 |
Ø2400×8000 | 20 | 36 | ≤25 | 0.074-0.4 | 20-48 | 410 | 81 |
Ø2700×3600 | 21 | 39 | ≤25 | 0.074-0.4 | 19-75 | 400 | 83 |
Ø2700×4000 | 20 | 40 | ≤25 | 0.074-0.4 | 20-78 | 400 | 85 |
Ø2700×4500 | 20 | 48 | ≤25 | 0.074-0.4 | 22-85 | 430 | 89 |
Ø3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | 29-140 | 800 | 137 |
Ø3200×5400 | 18 | 81.6 | ≤25 | 0.074-0.4 | 30-180 | 800-1000 | 146 |
Ø3600×4500 | 17 | 88 | ≤25 | 0.074-0.4 | 35-210 | 1000 | 190 |
Ø3600×6000 | 17 | 117 | ≤25 | 0.074-0.4 | 38-240 | 1250-1500 | 220 |
Ø3600×8500 | 17 | 144 | ≤25 | 0.074-0.4 | 45-260 | 1800 | 260 |

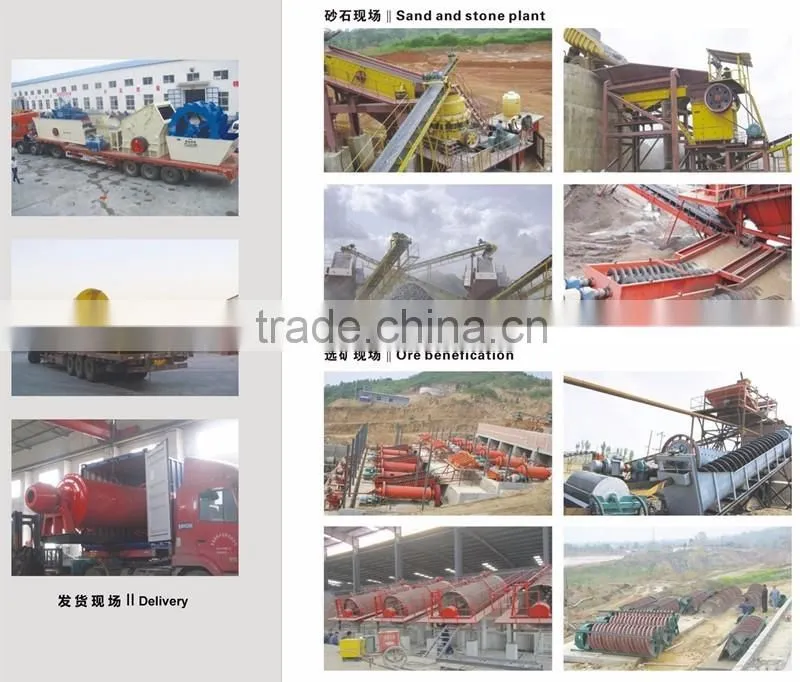

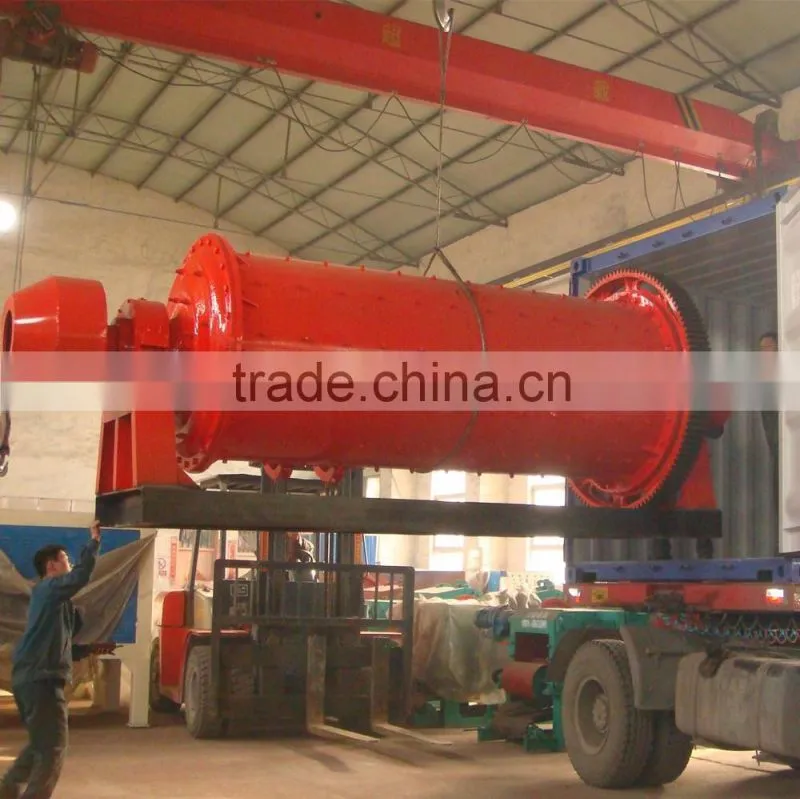

We have professional partners that responsible for shipping procedure, such as APL, CSCL, COSCO, EMC, KLINE, MSK, MSC, KLINE, etc. And land transportation is also avaliable. We will track the shipment information until you get the products.
1. Pre-sale service:
♦ Learn full information about the clents' requirements and ore information
♦ Help the customers to select proper equipment models
♦ Design the product line based on the clients' workershop size
♦ Arrange clients' visit
2. On-sale service:
♦ Update prodcut manufacturing information for the clients
♦ Prepare documents required to help customer pass customs clearance.
♦ Help clients to make project evaluation and feasibility analysis and draft solving plans.
3. After-sale services:
♦ Assist clients to prepare for the first construction scheme
♦ Install, debug and examine the equipments
♦ Train technical personnel for first-line operators
♦ Offer spare parts at best price for whole using life
Questions you may concerned:
Q: How is the quality of your products?
A: We manufacture our machines strictly based on the national and international standard, and test the machines before delivery. Our warranty is one year. Meanwhile, we will offer a list of the spare parts, and we will offer the spare parts at best price for the whole using life.
Q: How can I know your equipments work?
A: Before your order, we will test your ore many times and make positive plans to get the lagest ore recovery. Besides, there are more than 100 engineers prepared with rich experience for dispatching.
Q: Can I get lower price?
A: we are factory and the price we give you will be low in market.
