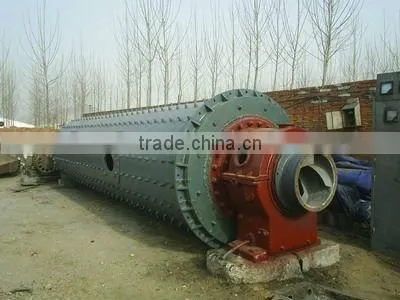

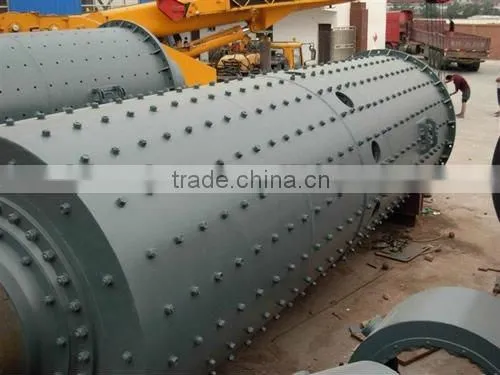

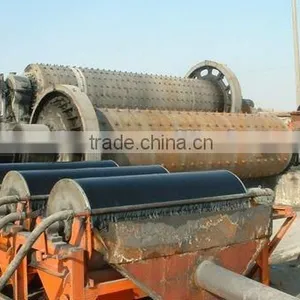

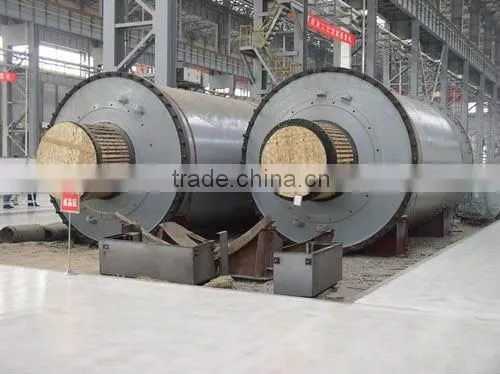

High Efficiency Dry wet type ball mill grid

Specifications

Dry wet type ball mill grid
1)CE,ISO9001:2008;
2)Large application range;
3)Simple structure,convenient maintenance;

Dry wet type ball mill grid

Application:

Dry wet type ball mill grid is widely used in powder making production line in industries, like mining,building materials and chemistry industries.  It is a key equipment to grind all kinds of ores and other materials, including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.

 Types:

a. dry and wet types.

b. lattice and overflow types, or center-discharge and side-discharge types

c. Bearing MiII and Bushing MiII

d. edge and center types

Notes: other type of mill, like rod mill, ceramic ball mill is also supplied.

Working Principle:

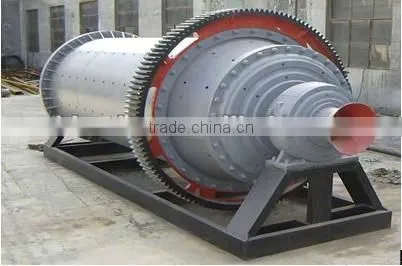

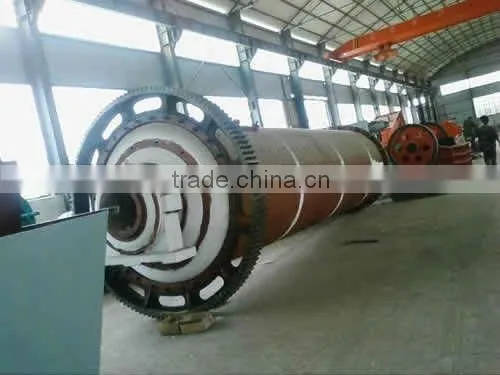

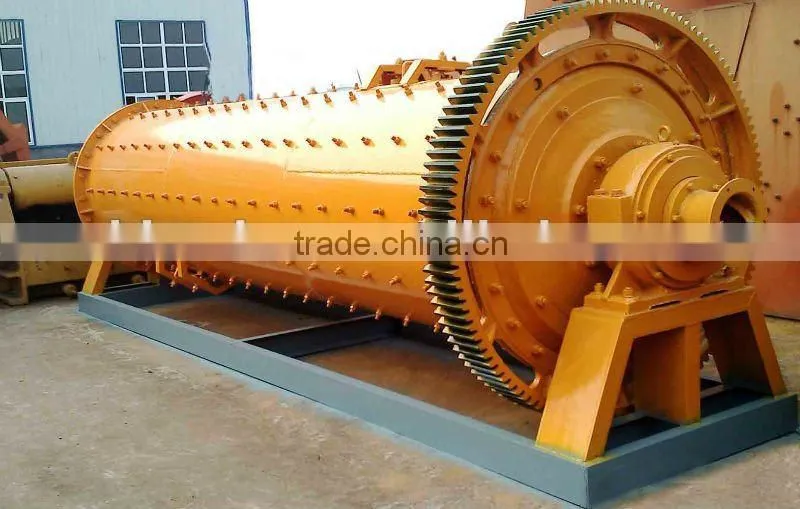

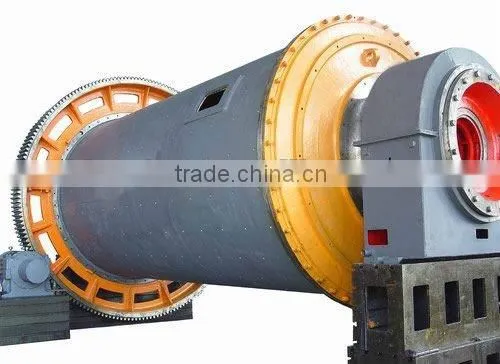

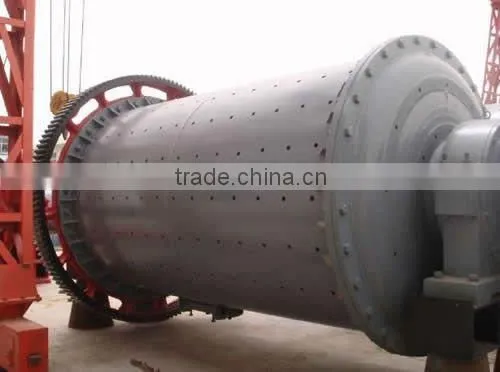

Dry wet type ball mill grid is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through thequill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Dry wet type ball mill grid
