Specifications
hinge joint knot weaving field fence machine1, wire diameter:2.5-6mm
2, width:2600mm
3, mesh opening: 50x50-300x

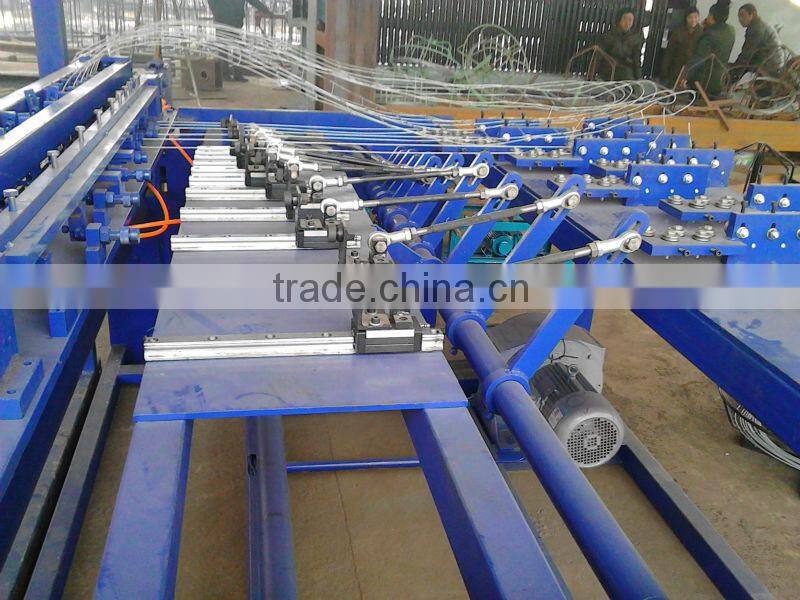

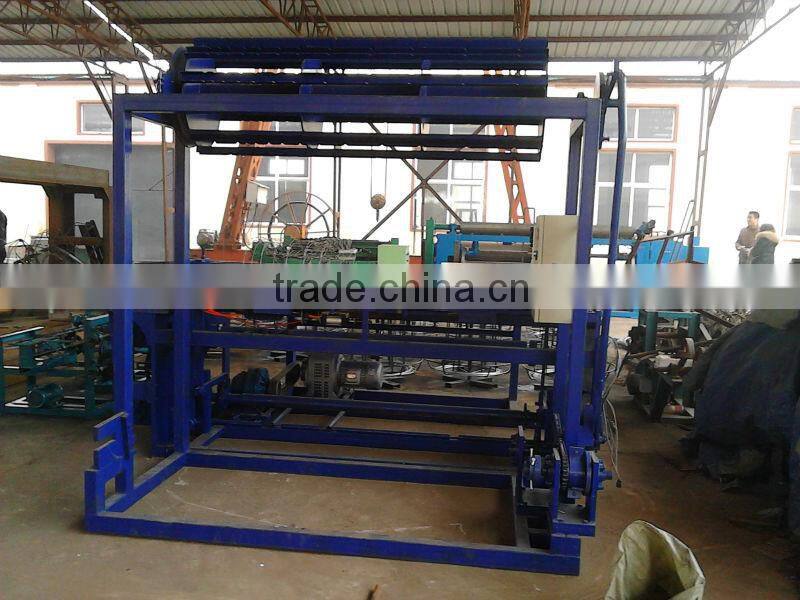

hinge joint knot weaving field fence machine
We can supply welded wire mesh machine for producing of welded wire mesh of a wide range of mesh counts and sizes.
1,Peculiarity: Box-style support, high stability, lower noise, E-Machine in one, straighten & send wire automatically. Used for welded wire mesh 1/2"-4".
Automatic Grassland fence machine
1.IS09000:2000
2.Guarantee time: one year
plete after-sale service
4.lowest price!!
Type | 1422mm | 1880mm | 2000mm | 2400mm |
motor | 5.5kw | 7.5kw | 7.5kw | 11kw |
Dimension | 2.8*3.2*2.4(m) | 3.3*3.2*2.4(m) | 3.4*3.2*2.4(m) | 3.9*3.4*2.4(m) |
Efficiency | 45row/min | ≤45row/min | ≤45row/min | ≤45row/min |
Twine diameter | 1.9-2.5(mm) | 1.9-2.5(mm) | 1.9-2.5(mm) | 1.9-2.5(mm) |
Side wire diameter | 2.0-3.5(mm) | 2.0-3.5(mm) | 2.0-3.5(mm) | 2.0-3.5(mm) |
Voltage | 380v | 380v | 380v | 380v |
Weight | 3.5T | 3.8T | 4.0T | 4.5T |
Wrap number | 11 | 13 | 18 | 23 |
Minimum weft opening number | 2 | 4 | 4 | 6 |
Weft number | 10 | 12 | 17 | 22 |
Productivity | 21600row/day (150m/h) | |||
